Description
| Make | Obara | Model | 105D06132/L |
|---|---|---|---|
| Shaft Diameter | 50mm | Travel Length | ~140mm |
| Pulley Bore | 3/4″ | Overall Dimensions | ~21-1/2″ x 12-1/2″ x 6″ |
| Ball Screw Diameter | ~25mm | Screw Pitch | 5mm |
| Linear Guide Rail | THK | ||

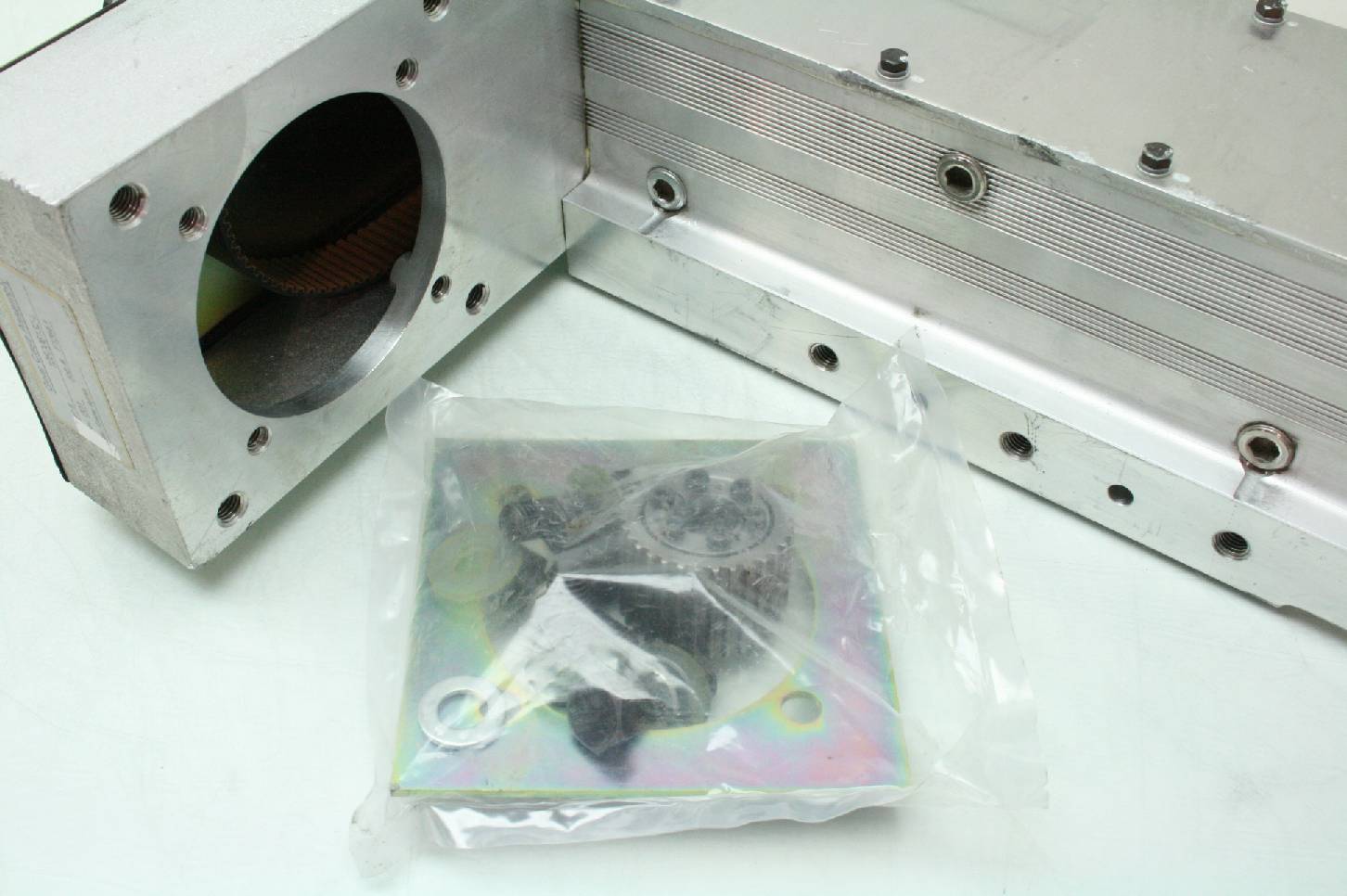

Here is an Obara ball screw drive electric cylinder/linear actuator with ~140mm of travel. These were designed for use on robotic welding guns and utilize very heavy duty construction. The ball screw and linear guide are made by THK. The travel is smooth without play. This appears slightly dirty from storage, but otherwise appears unused. The drive belt pulley and motor mount are still sealed and included as shown. This is guaranteed to arrive not DOA with a 30 day right of return.
Location; PA 05-02 15-4ListB
