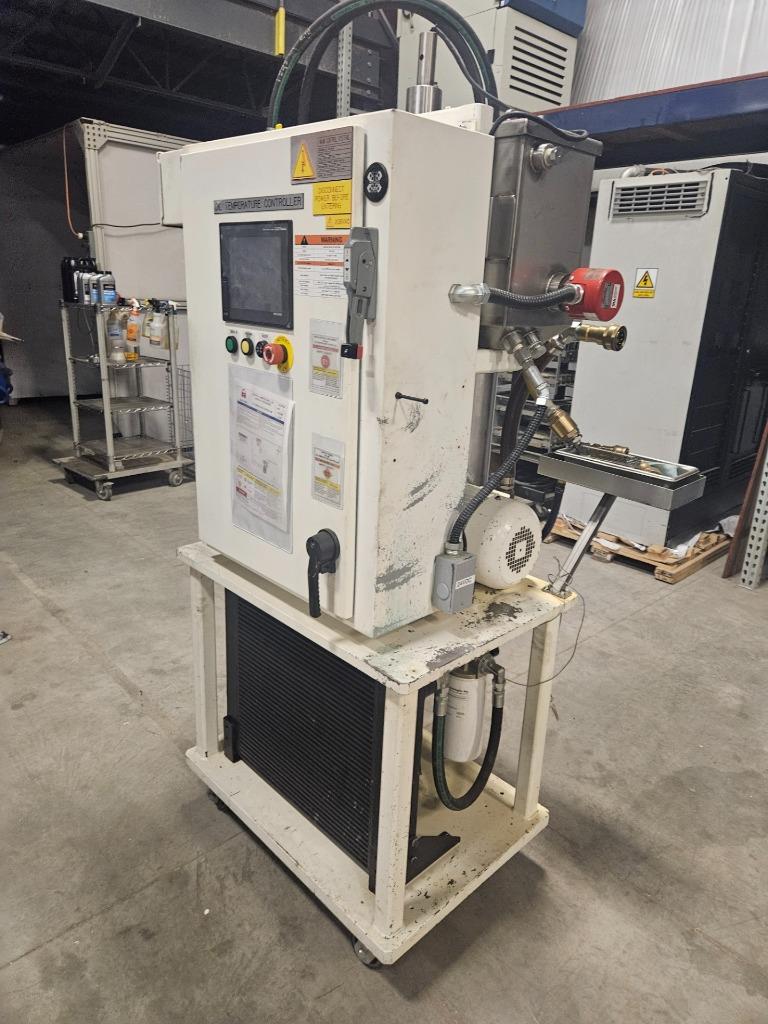

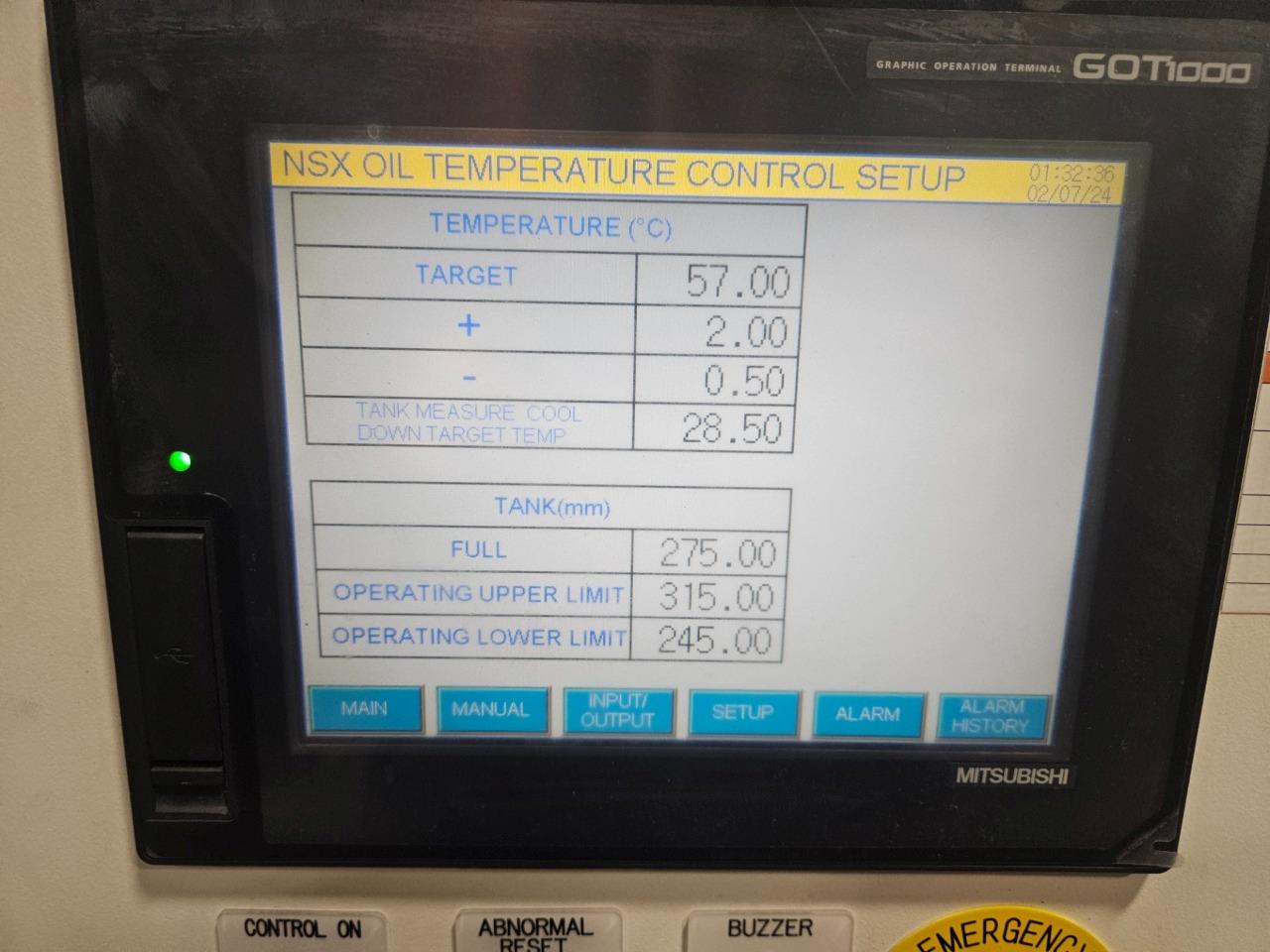

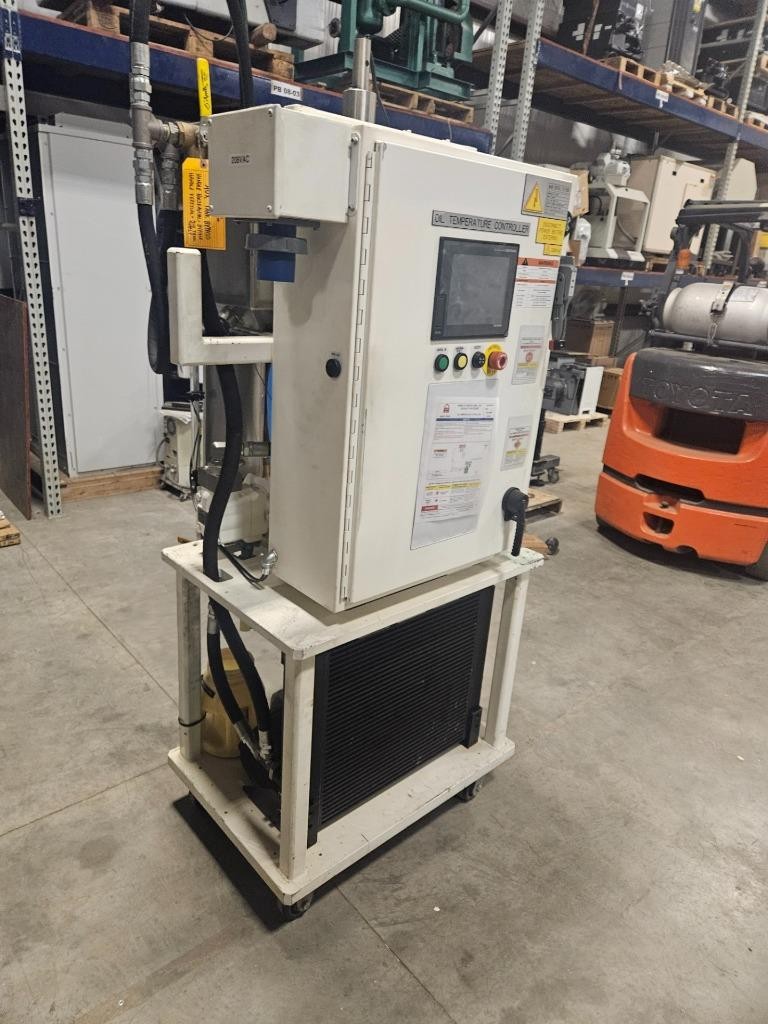

Here is custom hydraulic power unit designed for precise oil temperature control. This was built by Honda and as shown was previously used on an NSX production line as shown from the HMI / documentation. The main pump is a Vickers 25V14A vane pump driven by a 3 HP motor. It can heat oil using an electric immersion heater in its stainless oil tank or cool using a forced air heat exchanger underneath. Further specs and information can be found in the spec table above. The HMI is very easy to use and can be easily integrated to any other purpose or manufacturing process. You can just type in a temperature setpoint and the system will either cool or heat by opening up valves to keep that setpoint. Alternatively, all controls / heating / cooling can be operated manually from the HMI. It looks like this was intended to be a mobile temperature controller as well. The frame is 1″ thick heavy duty steel on castors. The hydraulic connections are all 1″ quick detach styles with automatic check valves and a drip pan underneath them as shown. This includes wiring diagrams for the control cabinet and good documentation for the components used. LTL shipping is flat 450$ to business addresses within the continental US. Home POLICIES CONTACT US ABOUT ME FEEDBACK view all items Menu Home POLICIES CONTACT US ABOUT ME FEEDBACK view all items Categories Ball Screws / Shaft Couplings Cable Chains Cables for Automation Cameras for Automation Contactors/Relays Control Systems and PLCs Heating/Cooling for Automation Hydraulics Gear Reducers / Gear Heads Lab/Analytical Equipment Lasers Linear Actuators Linear Guides Liquid Valves/Flow Controls Manufacturing / Metalworking Motors For Automation Optics Power Supplies/Circuit Breaker Pneumatic Actuators /Cylinders Pneumatic Valves Safety Hardware for Automation Sensors Servo Motors / Servo Drives Stepper Motors /Stepper Drives Switches For Automation Transformers Vaccum Equipment Wiring for Automation Eaton / Vickers 3 HP Hydraulic Power Unit 1.5 kW Hot Oil Circulator 20 GPM Item Specifications
| System Make: | Honda |

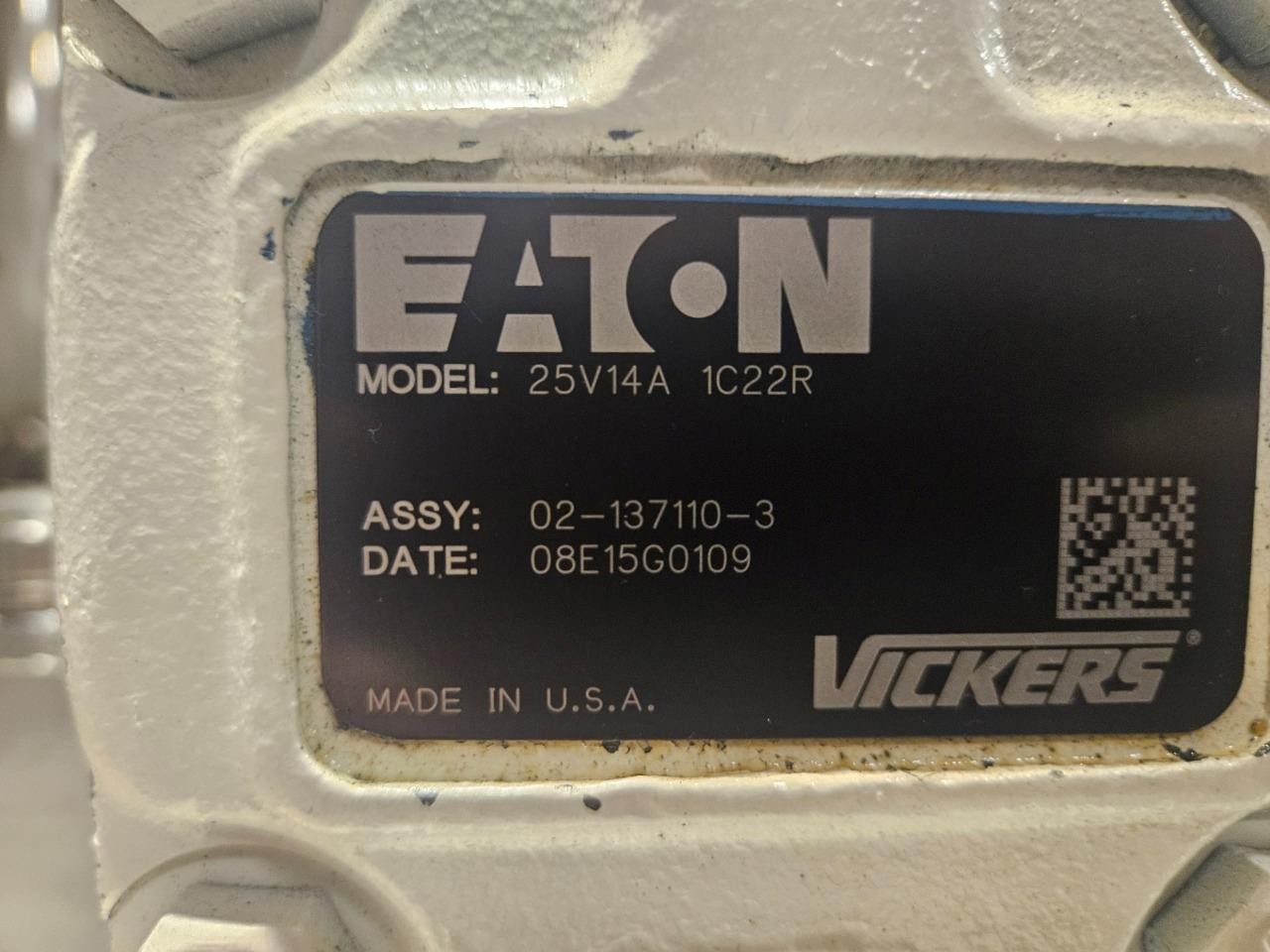

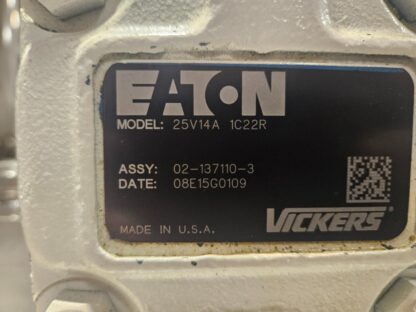

| Primary Hydraulic Circulation Pump | Eaton Vickers 25V14A-1C22R |
| Hydraulic Pump Motor Power | 3 HP, Wired for 208V Three Phase |
| Oil Reservoir Capacity | Appears to be about 10 Gallons Conservatively |

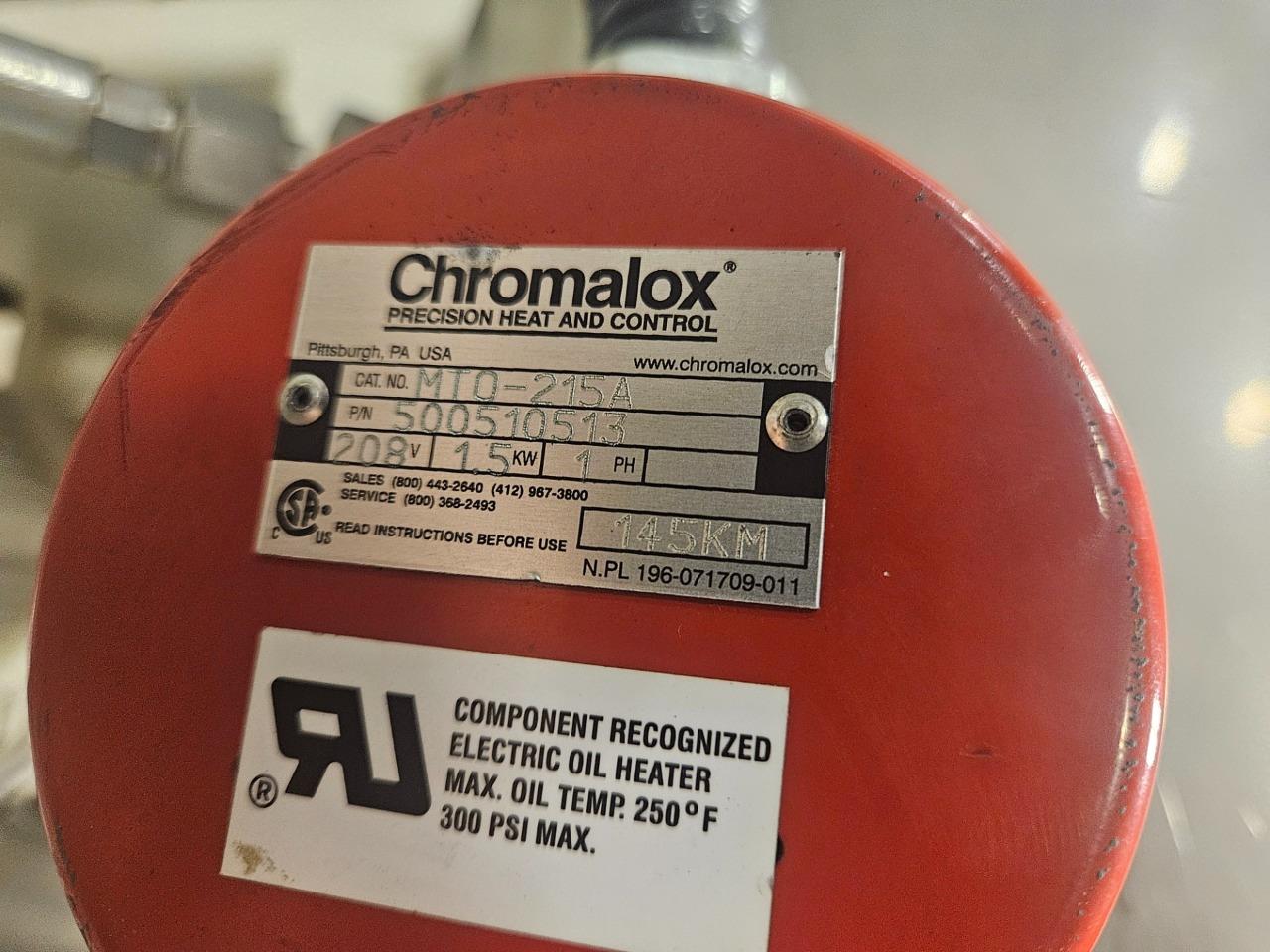

| Tank Heater | Chromalox MT0-215A |
| Heating Power | 1.5 kW |

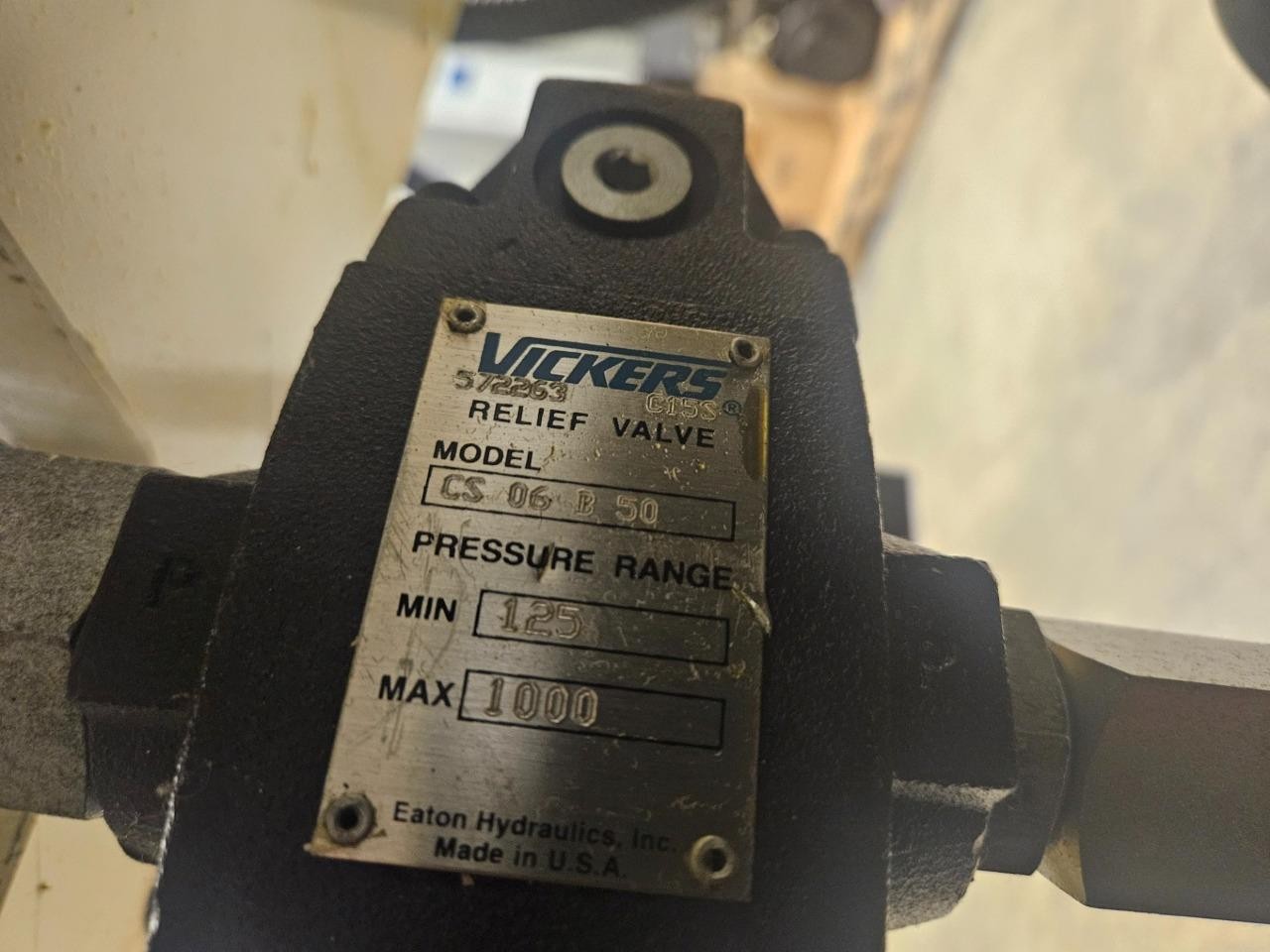

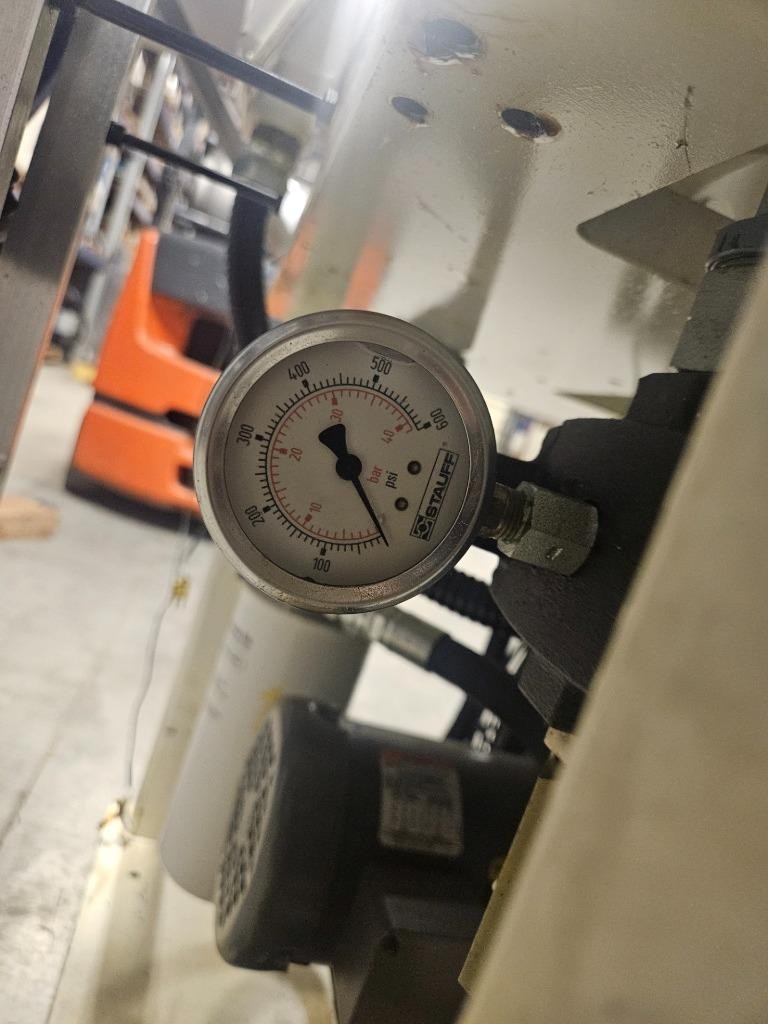

| Vickers Relief Valve | CS-06-B-50 (appears to be currently set around 200 PSI) |

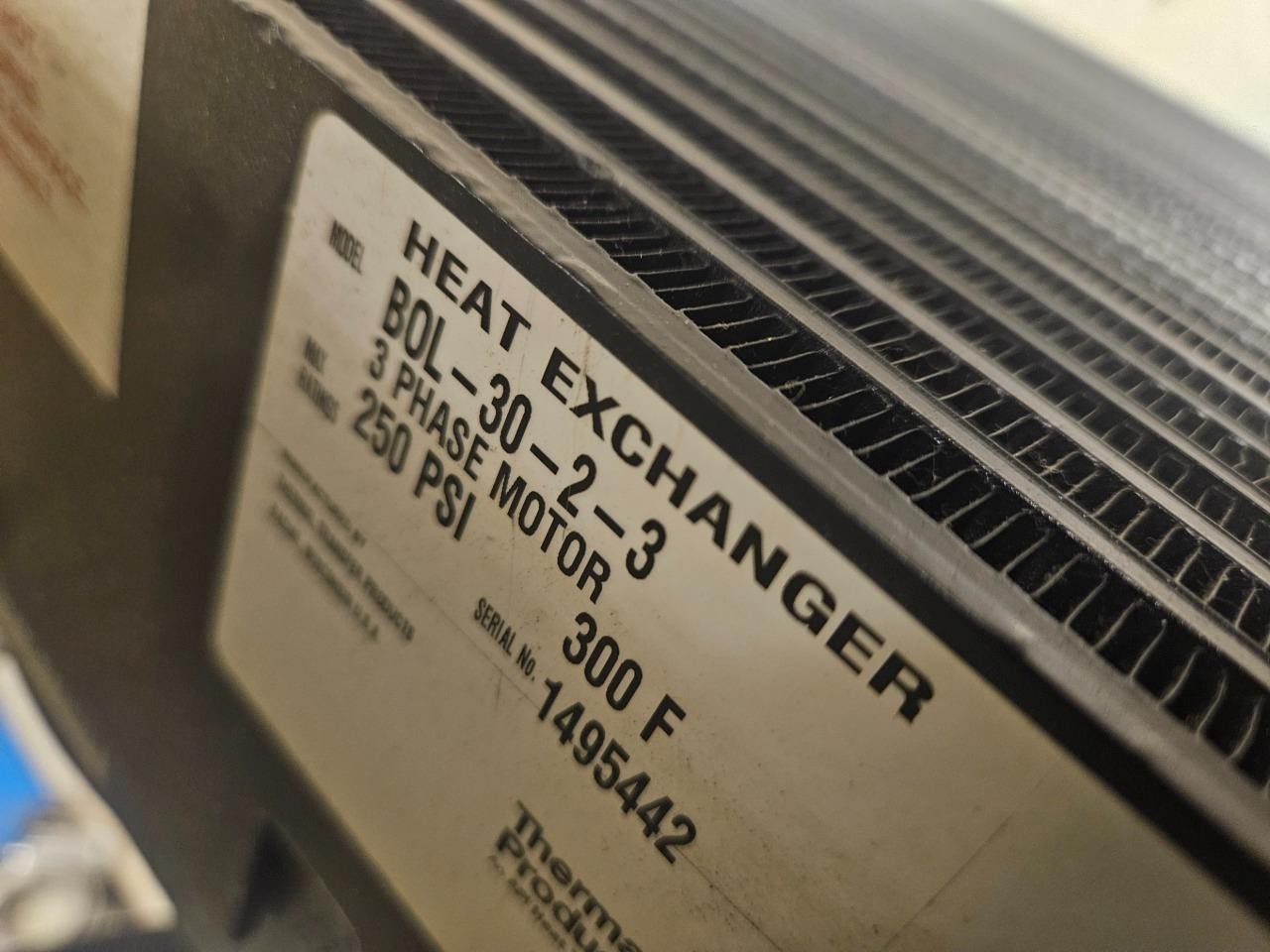

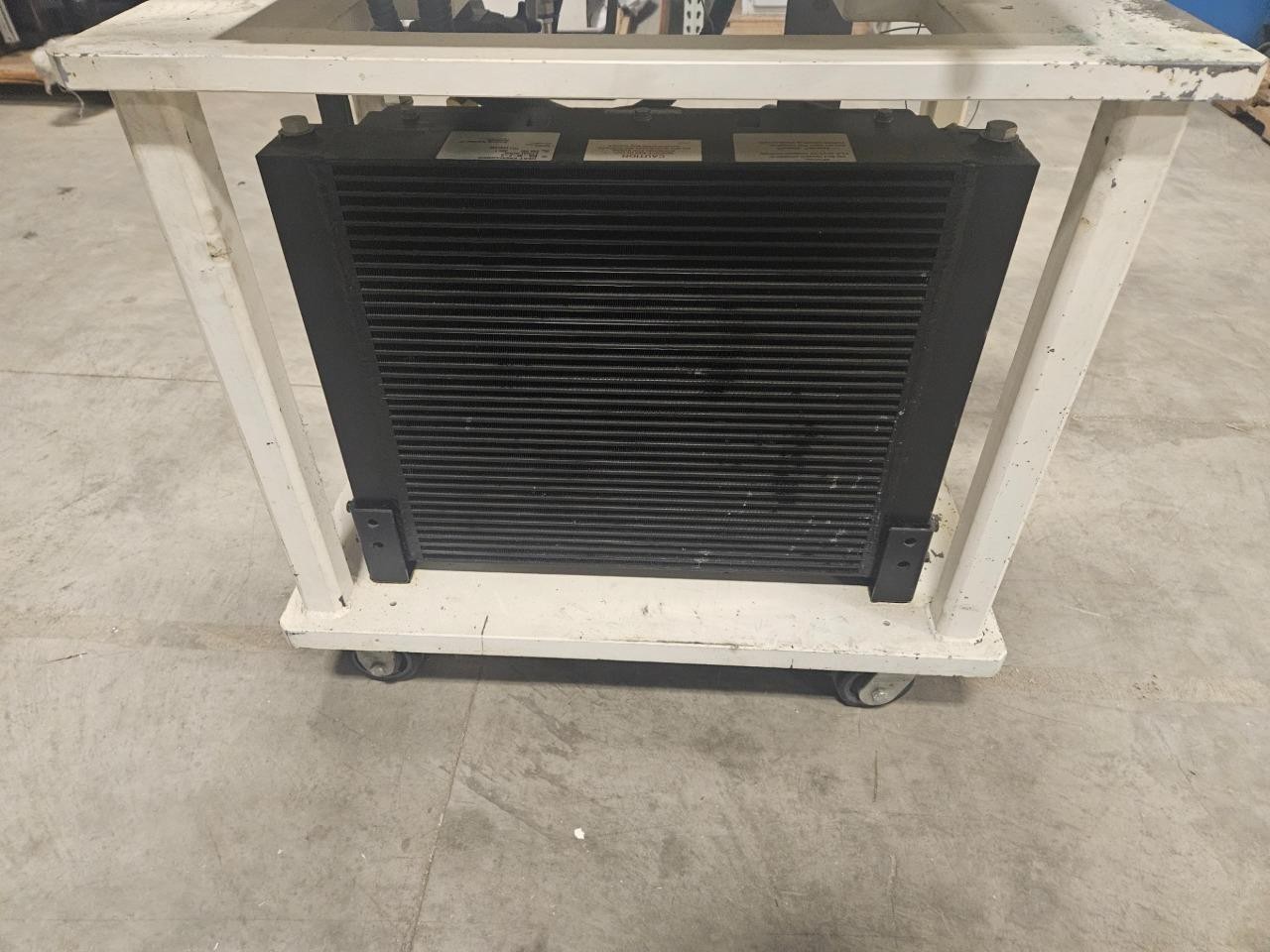

| Heat Exchanger | Thermal Transfer BOL-30-2-3 |
| Maximum Heat Rejection | ~40 kW @ 100 Degrees F Temperature Differential |
| Heat Exchanger Airflow | 2200 CFM |

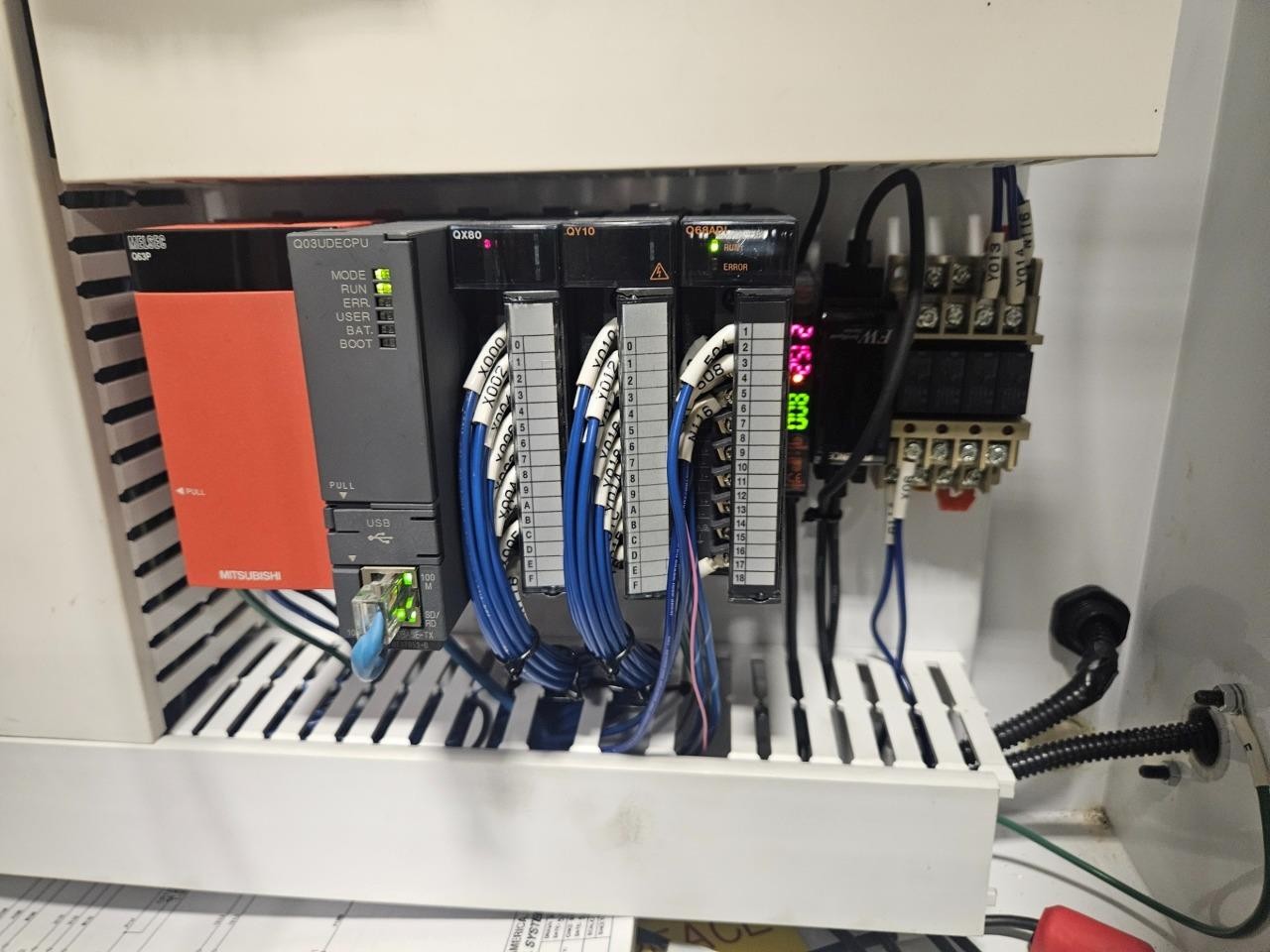

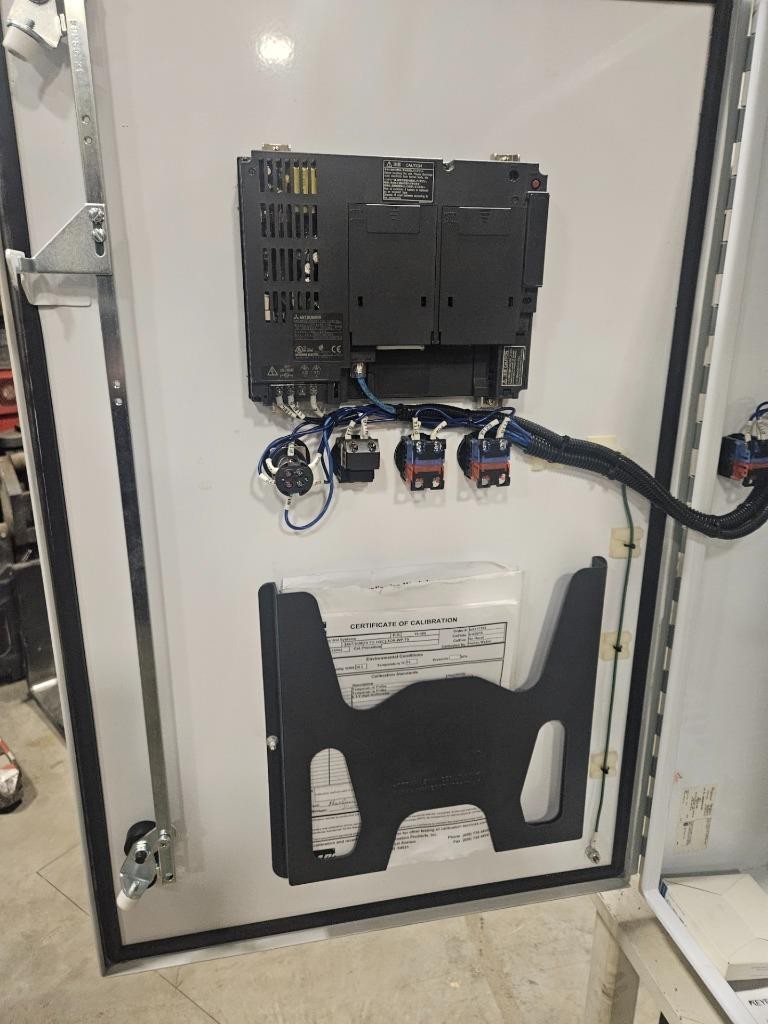

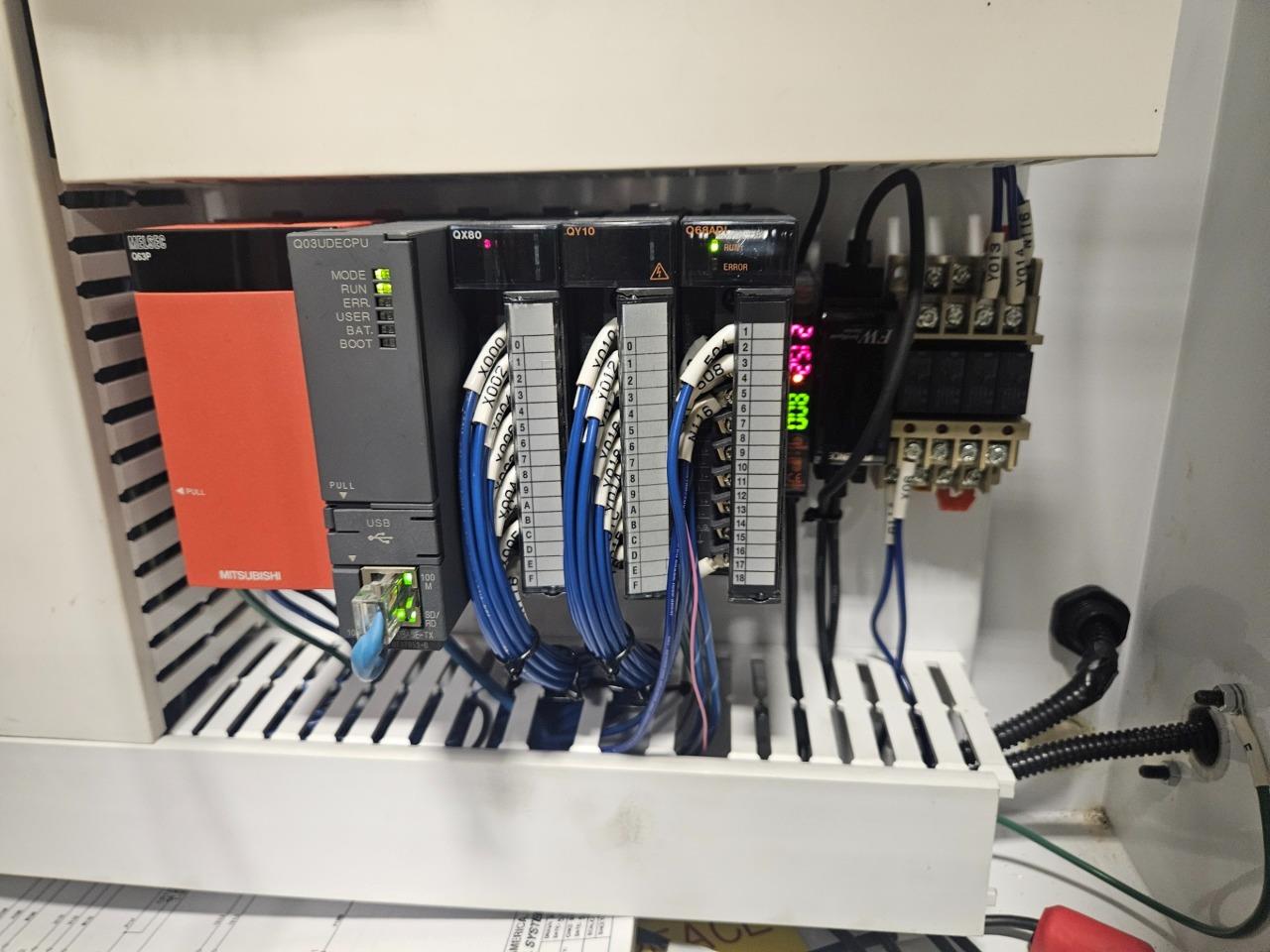

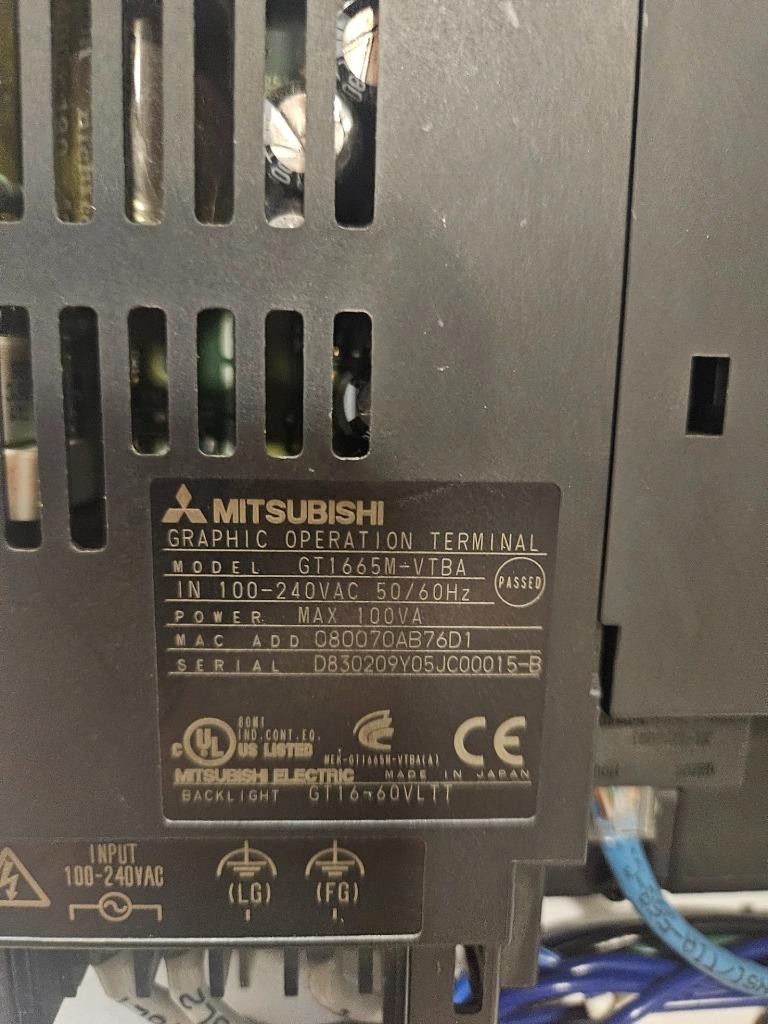

| PLC | Mitsubishi Q03UDECPU w/ Mitsubishi GT1665M HMI |
| Maximum Rated Pressure | Appears to be around 250 PSI (limited by heat exchanger) |
| Maximum Flow Rate | ~21 GPM |
| Weight | ~650 lbs |
Description

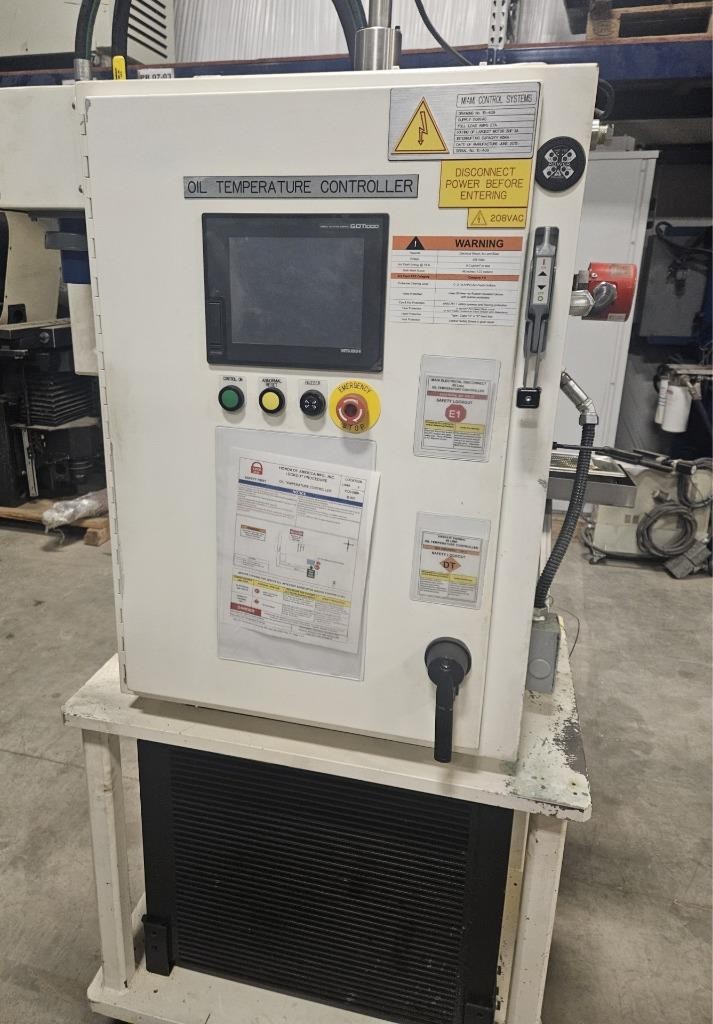

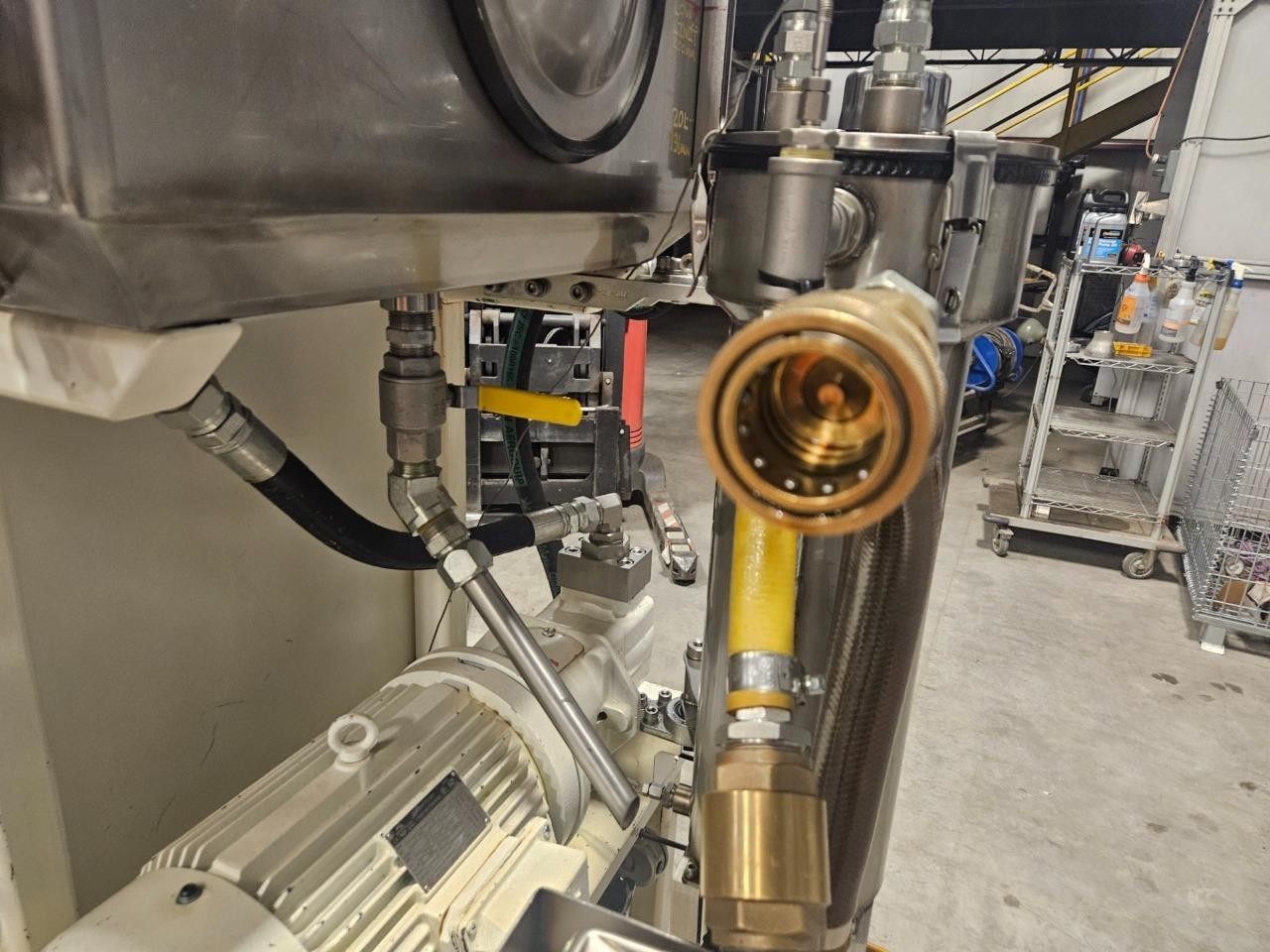

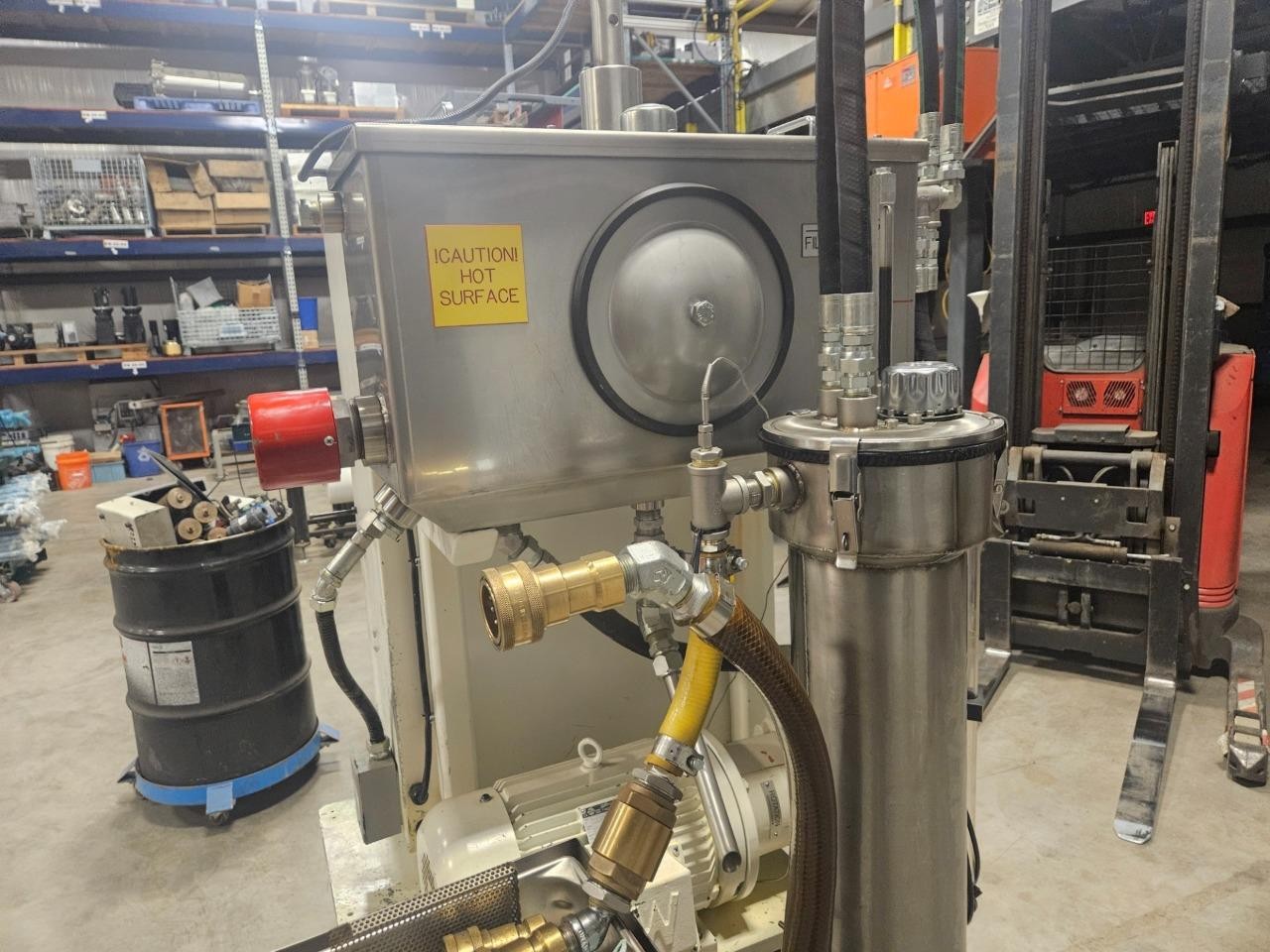

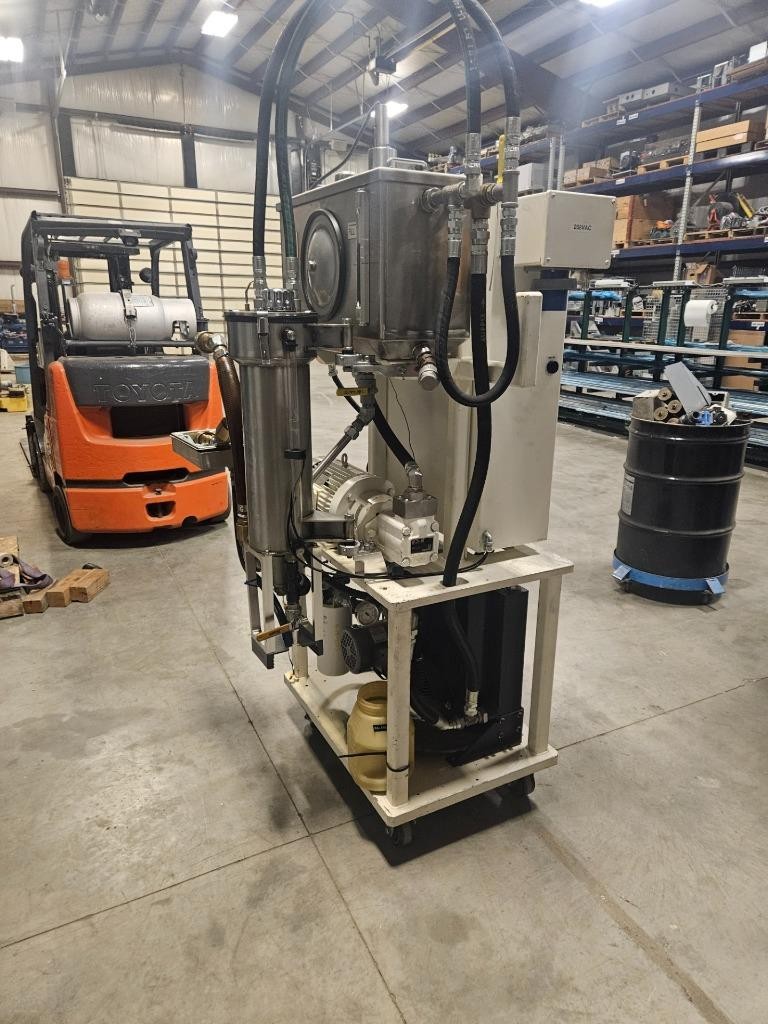

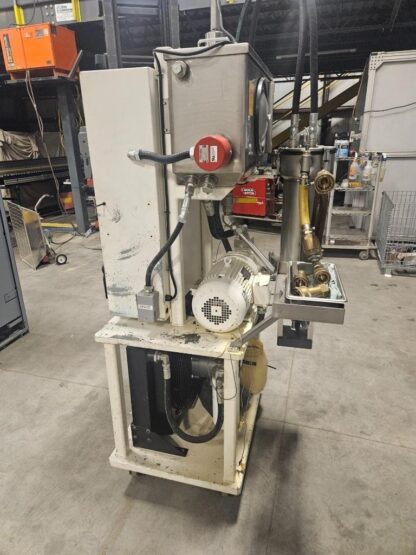

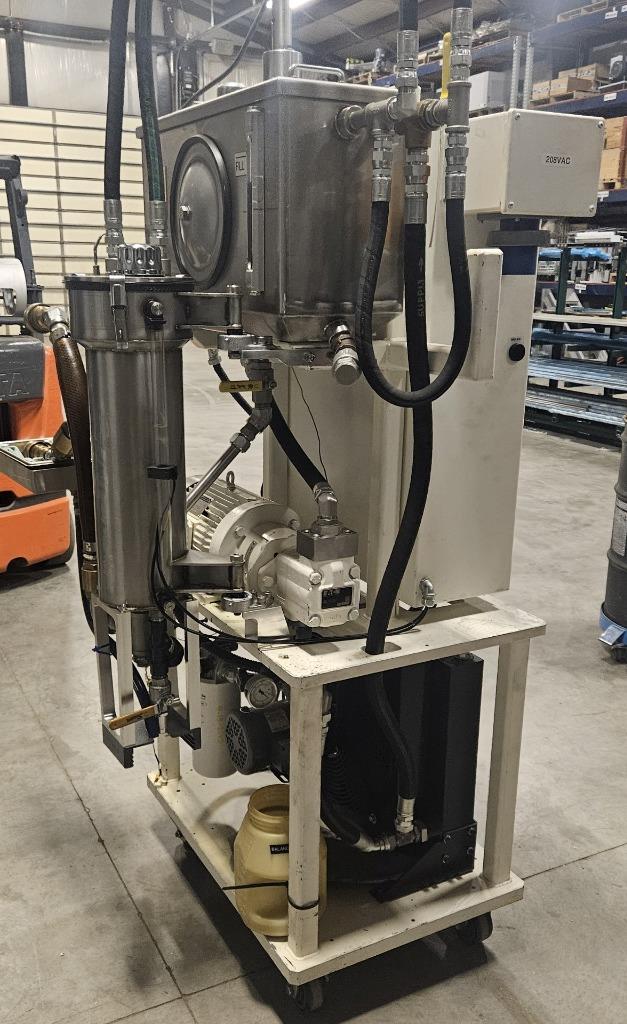

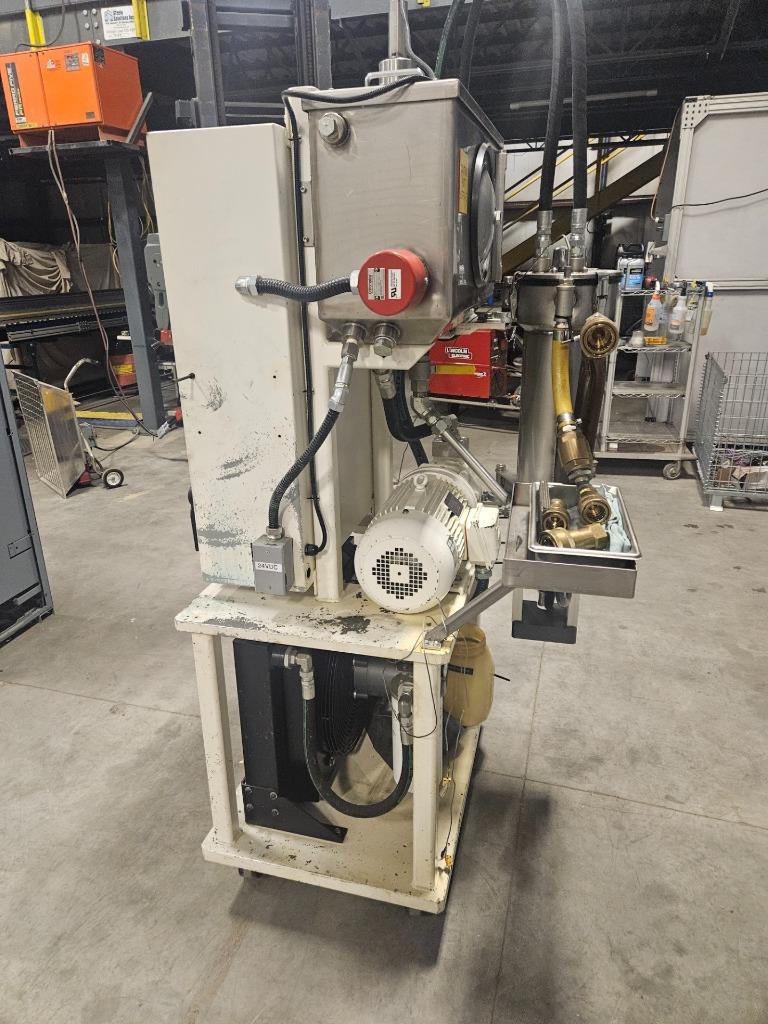

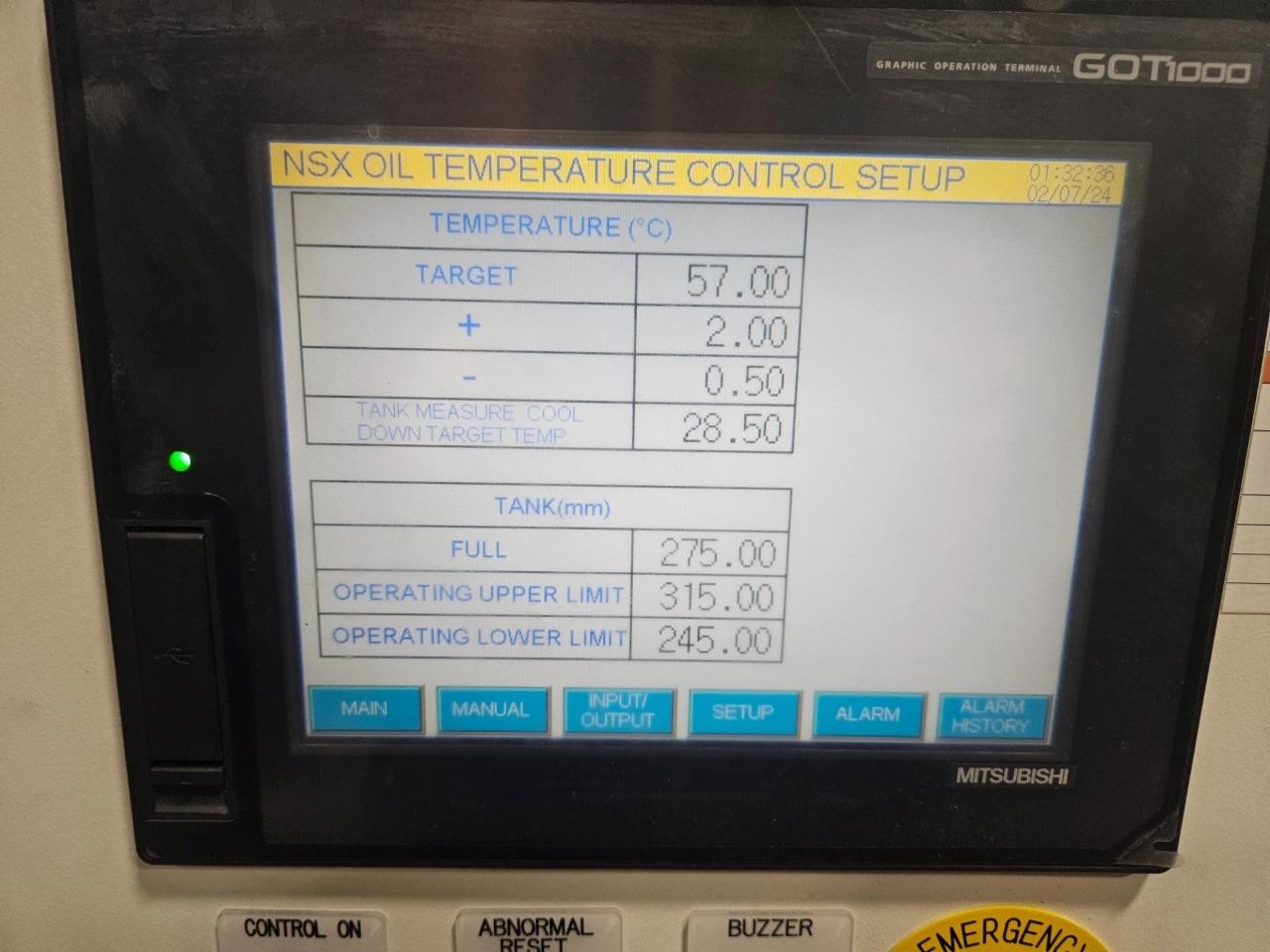

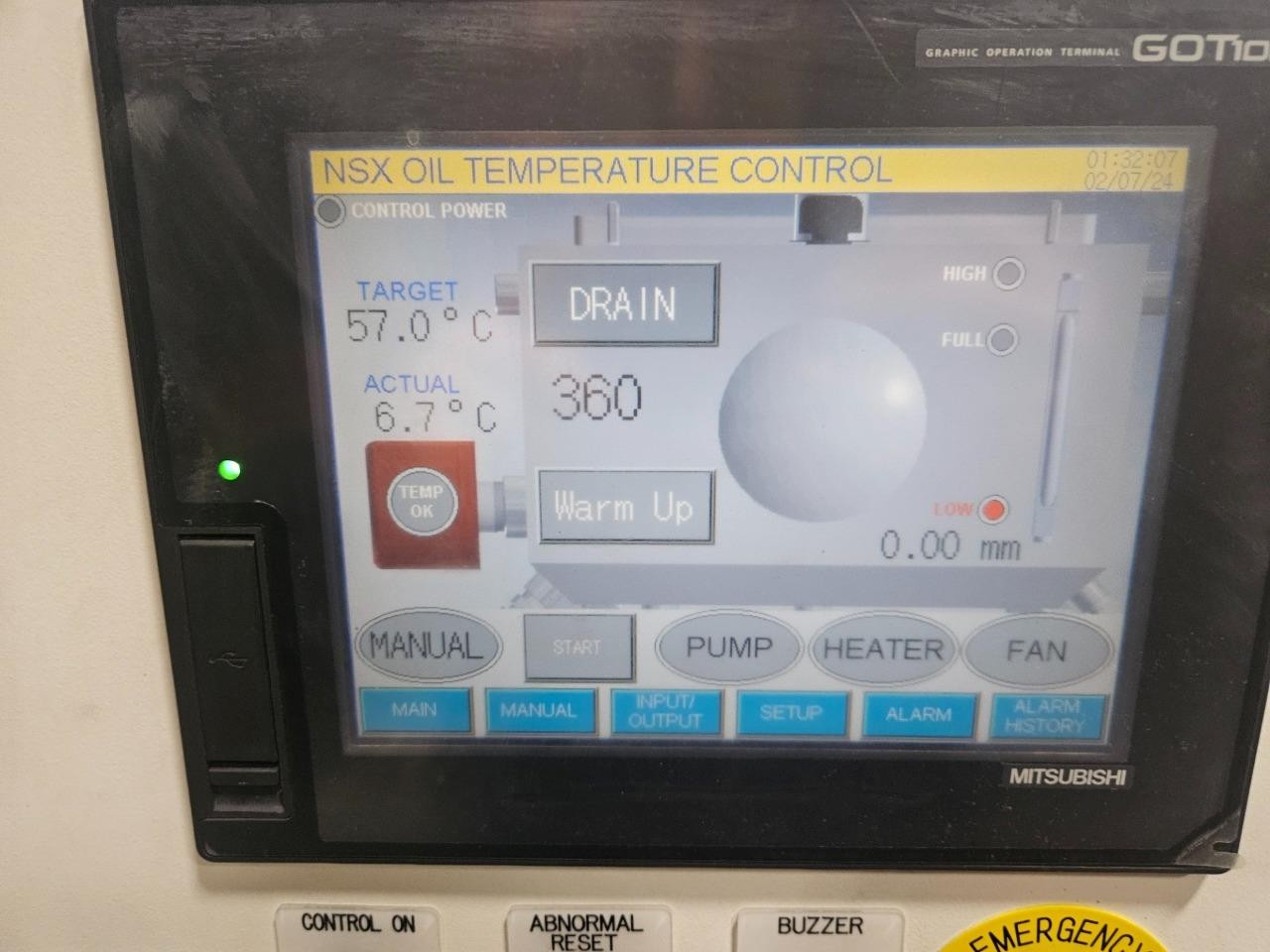

Here is custom hydraulic power unit designed for precise oil temperature control. This was built by Honda and as shown was previously used on an NSX production line as shown from the HMI / documentation. The main pump is a Vickers 25V14A vane pump driven by a 3 HP motor. It can heat oil using an electric immersion heater in its stainless oil tank or cool using a forced air heat exchanger underneath. Further specs and information can be found in the spec table above. The HMI is very easy to use and can be easily integrated to any other purpose or manufacturing process. You can just type in a temperature setpoint and the system will either cool or heat by opening up valves to keep that setpoint. Alternatively, all controls / heating / cooling can be operated manually from the HMI. It looks like this was intended to be a mobile temperature controller as well. The frame is 1″ thick heavy duty steel on castors. The hydraulic connections are all 1″ quick detach styles with automatic check valves and a drip pan underneath them as shown.

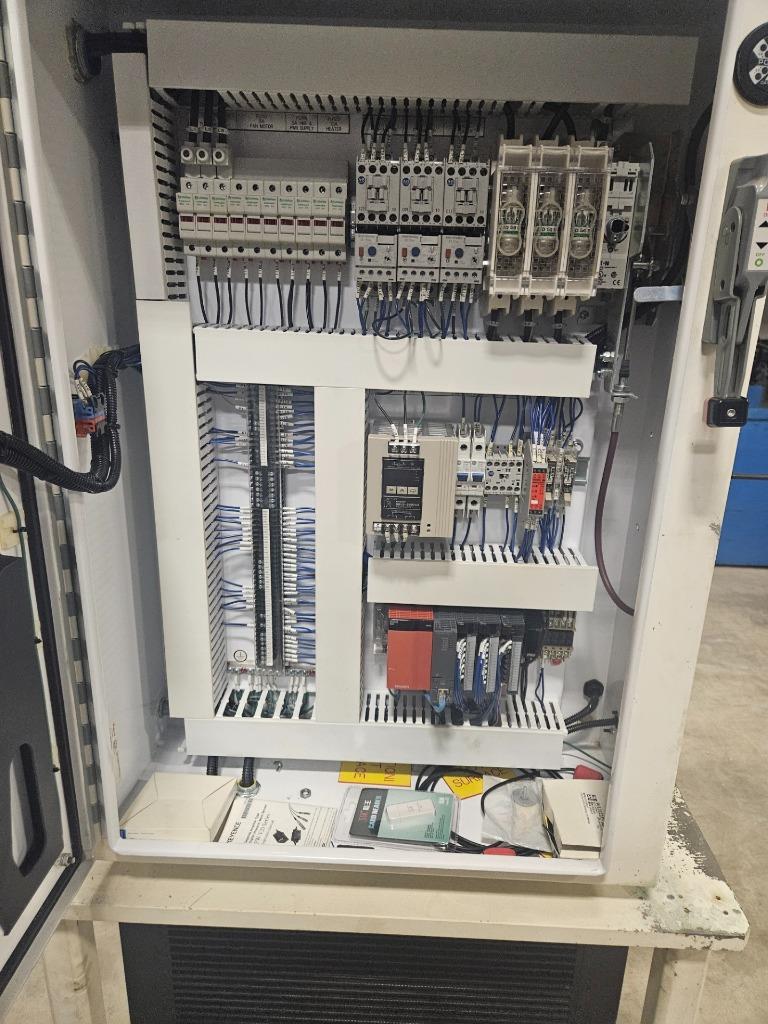

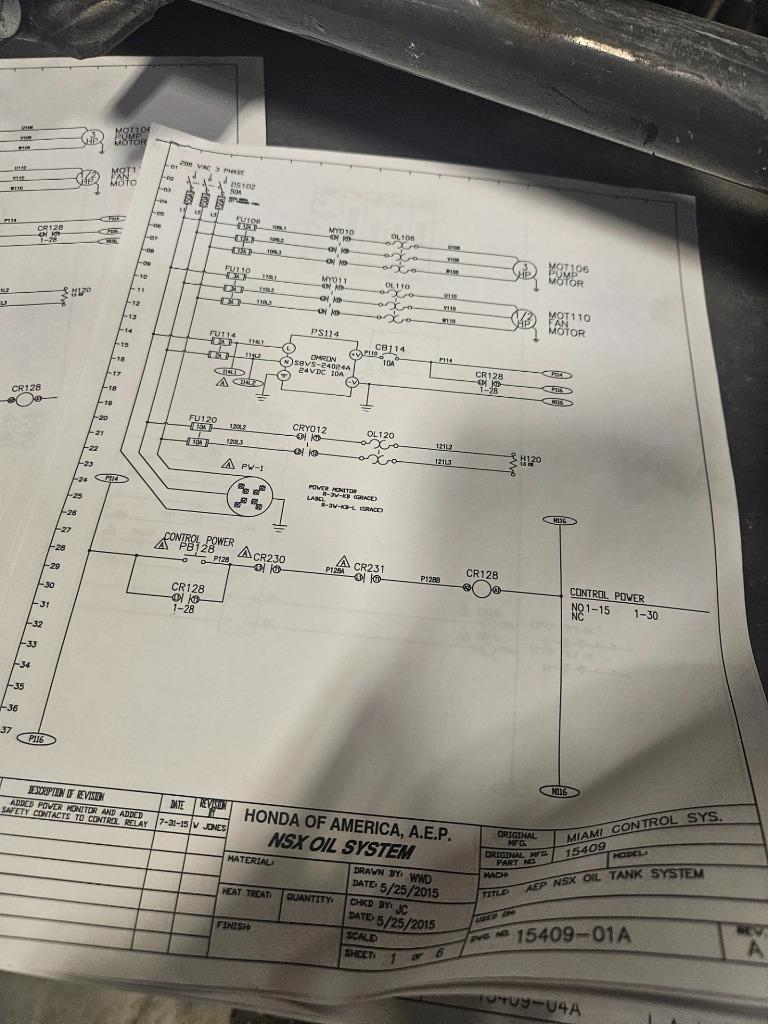

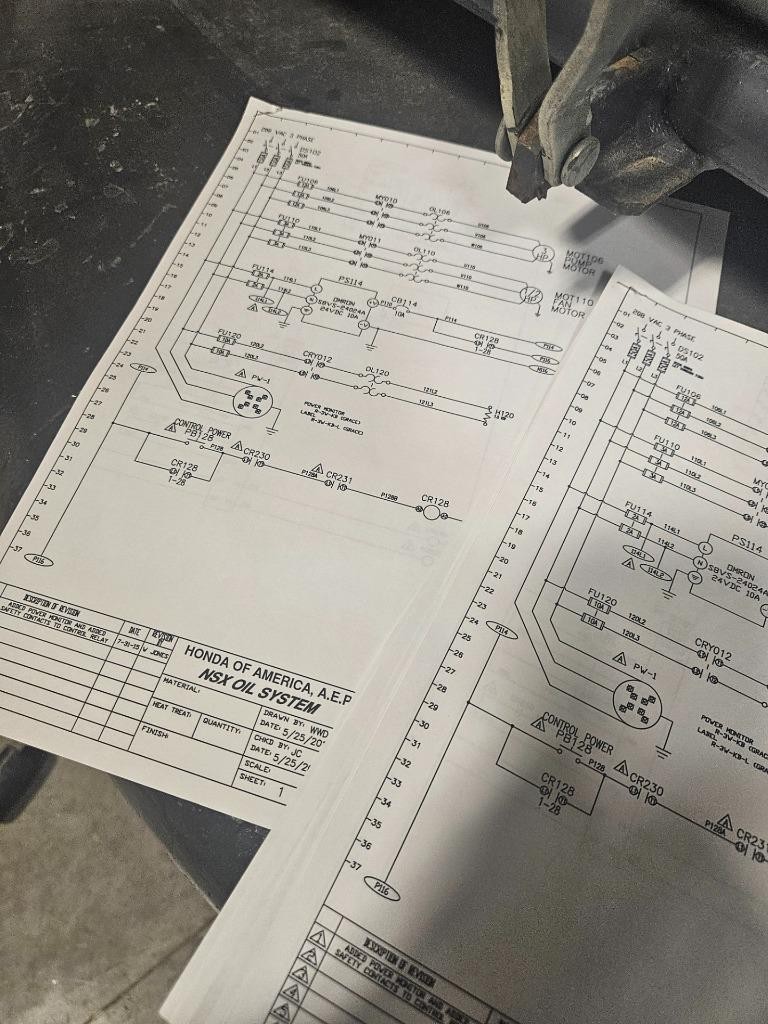

This includes wiring diagrams for the control cabinet and good documentation for the components used. LTL shipping is flat 450$ to business addresses within the continental US.
Location: WH2 PB-0703
02/24 ND
