Description

ABB ES2000-8001

All Photos (5 images) — Click thumbnail to view Description

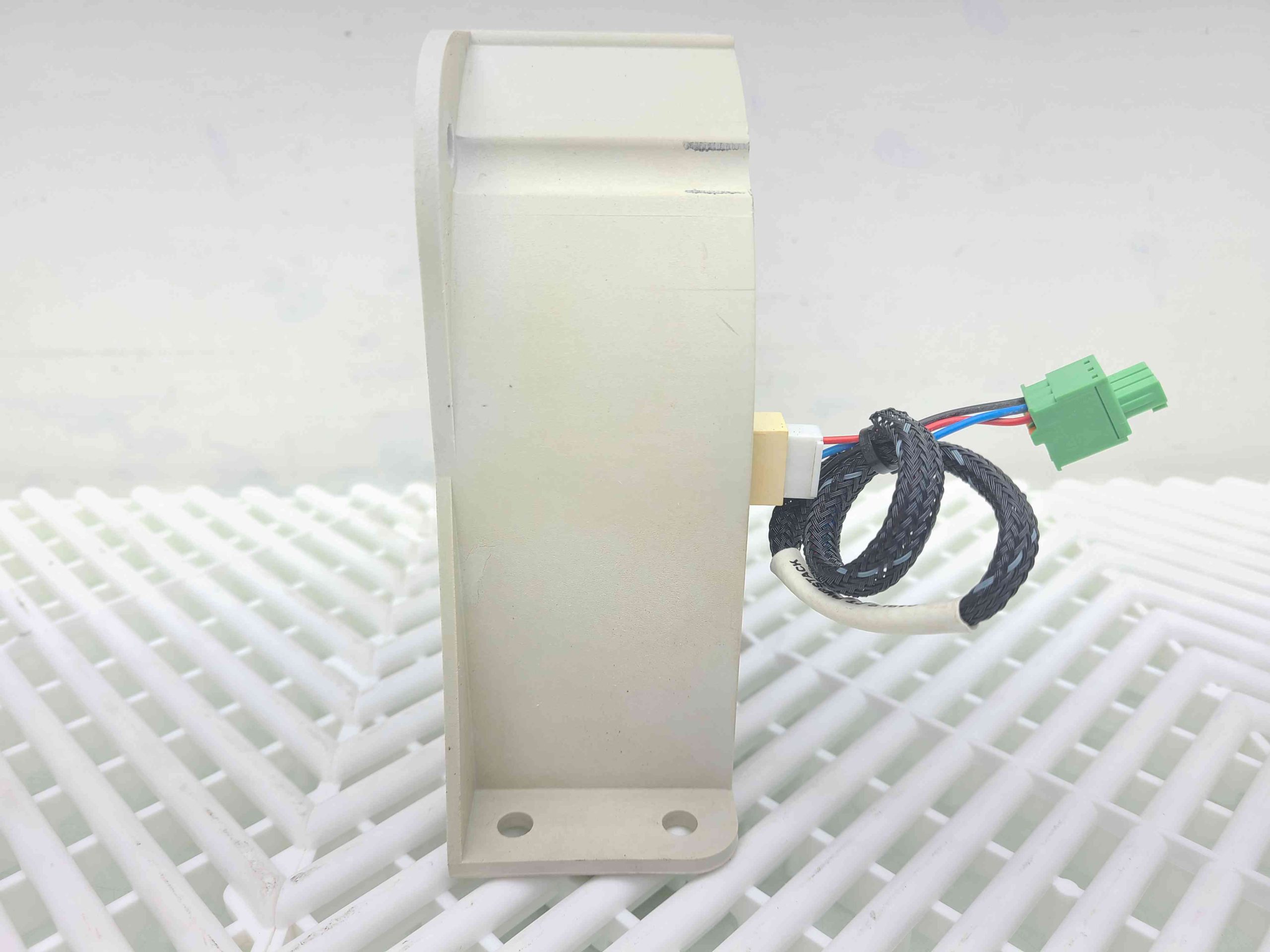

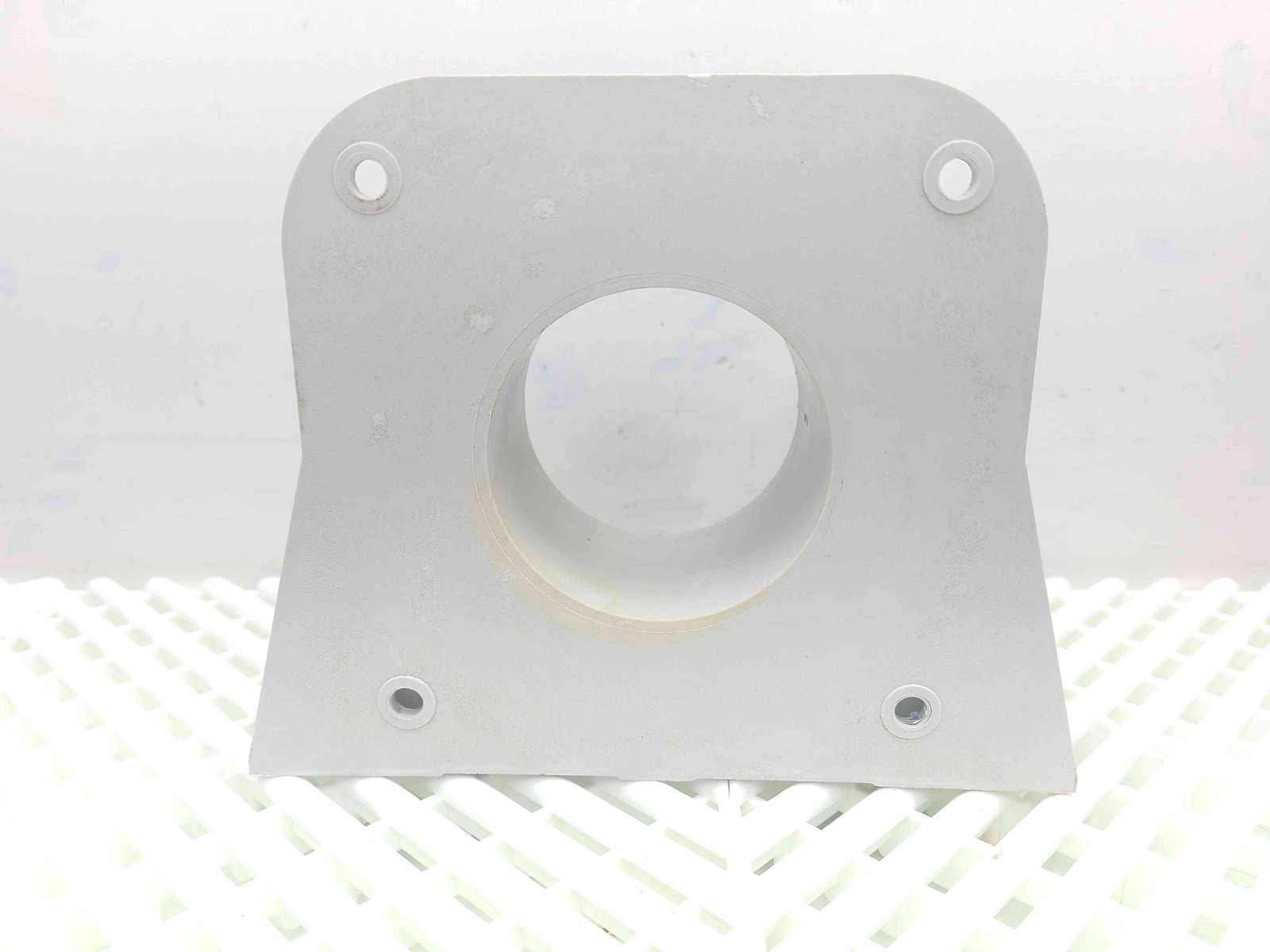

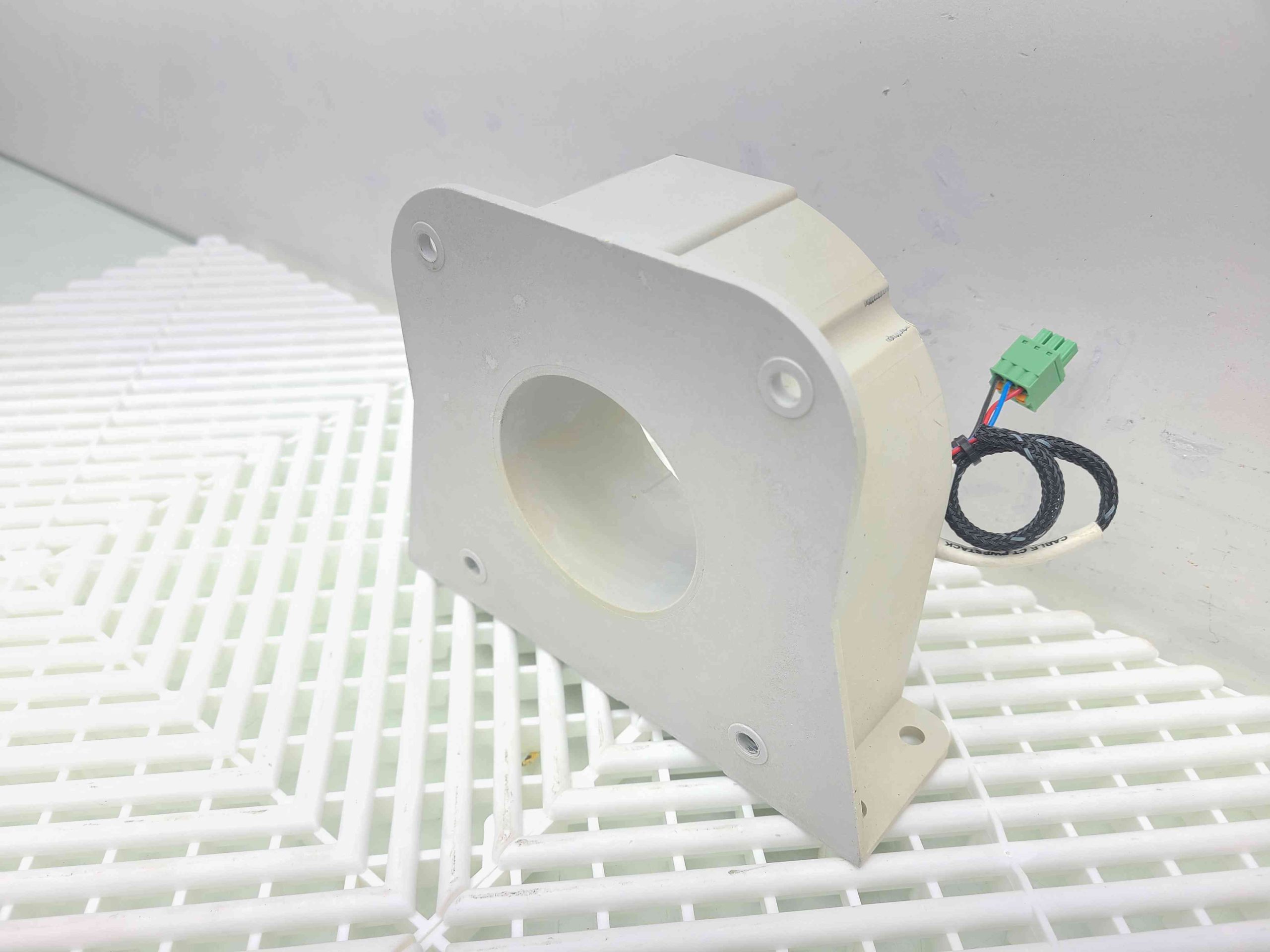

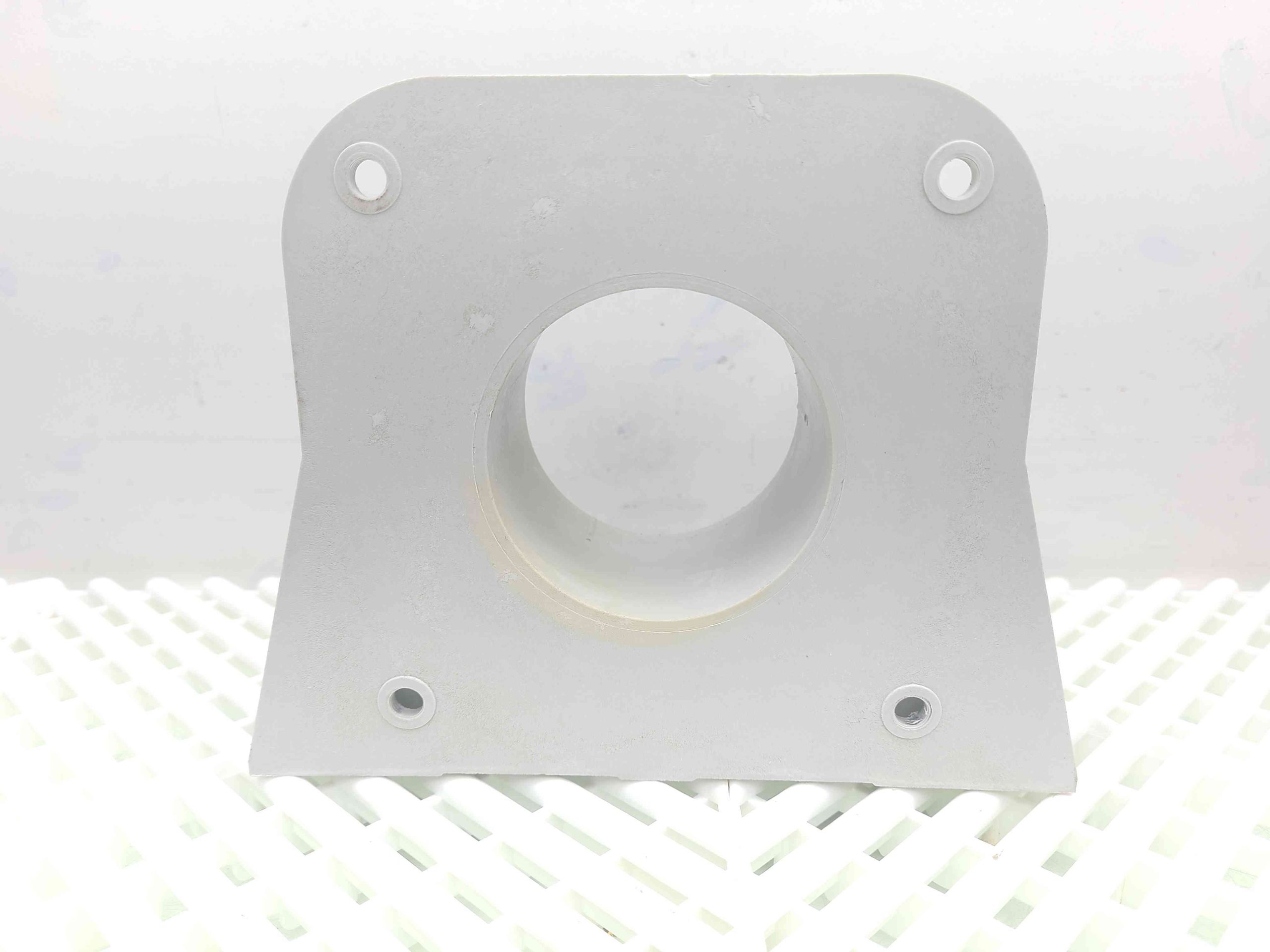

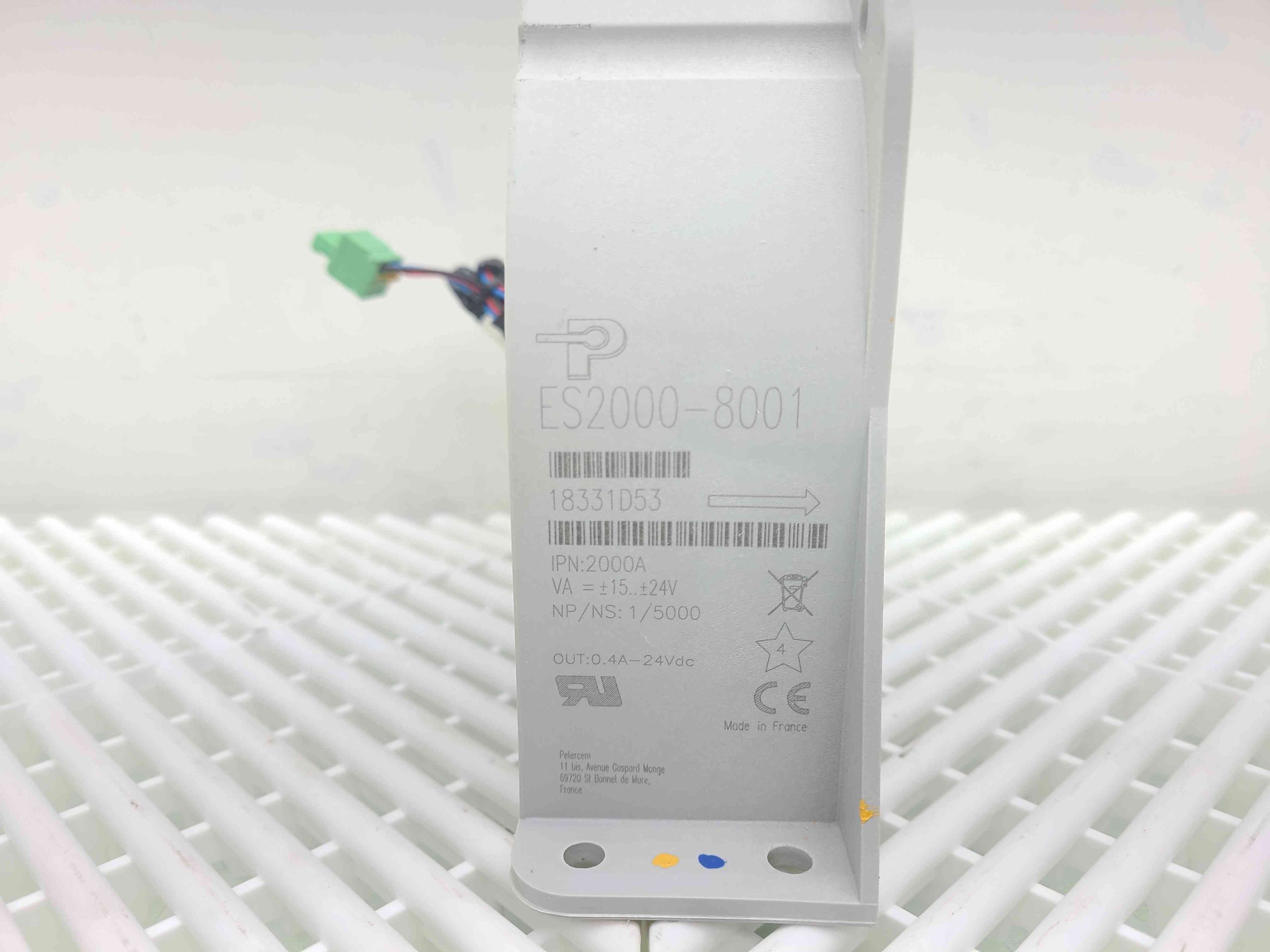

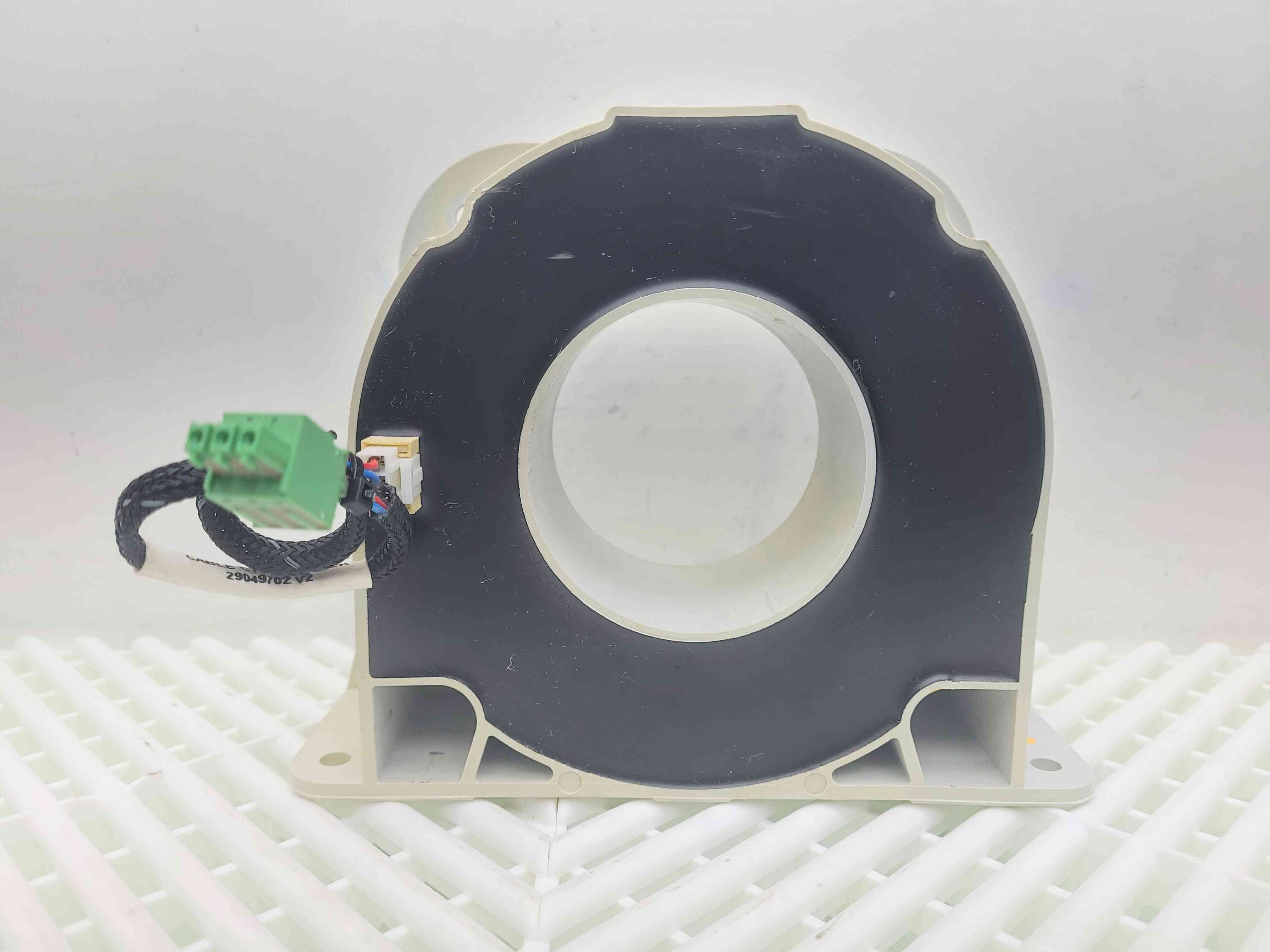

Here are some ABB ES2000-8001 current transducers. These are rated for 2000A and have a 5000:1 ratio (output 400 mA when 2000A ran through the ring). These were uninstalled spares. They are in like new functional and cosmetic shape as shown.

LOCATION: RF-609 / RR-609 / RR-610

4/25 ND

5/26 RL

Technical Specifications
make	abb
part number	es2000-8001
type	ac/dc current transducer / sensor
nominal current	2000a
max rated sensing current	3000a
current loop voltage	15-24 vdc
weight	4.1 lbs
ratio	5000:1
loop current output at 2000a thru	400 ma
connector	jst to phoenix contact adapters

Item Condition: New Open box Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

Weight	2.15 kg
Dimensions	10.00 × 10.00 × 10.00 cm
Brand	ABB
Current Type	DC
MPN	ES2000-8001
Sensor Type	Solid State
Shield	Shielded
Termination Type	Connector
Condition	New other (see details)
