Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 2
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 3
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 4
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 5
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 6
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 7
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 8
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 9
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 10
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 11
Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. - Used - Image 12

Festo ADNGF-25-90-P-A-S2 Pneumatic Compact Cylinder Double-Acting 25mm Dia. – Used

$50.11

2 in stock

SKU: 178128623942 Category:

Description

Festo  ADNGF-25-90-P-A-S2

All Photos (5 images) — Click thumbnail to view Description

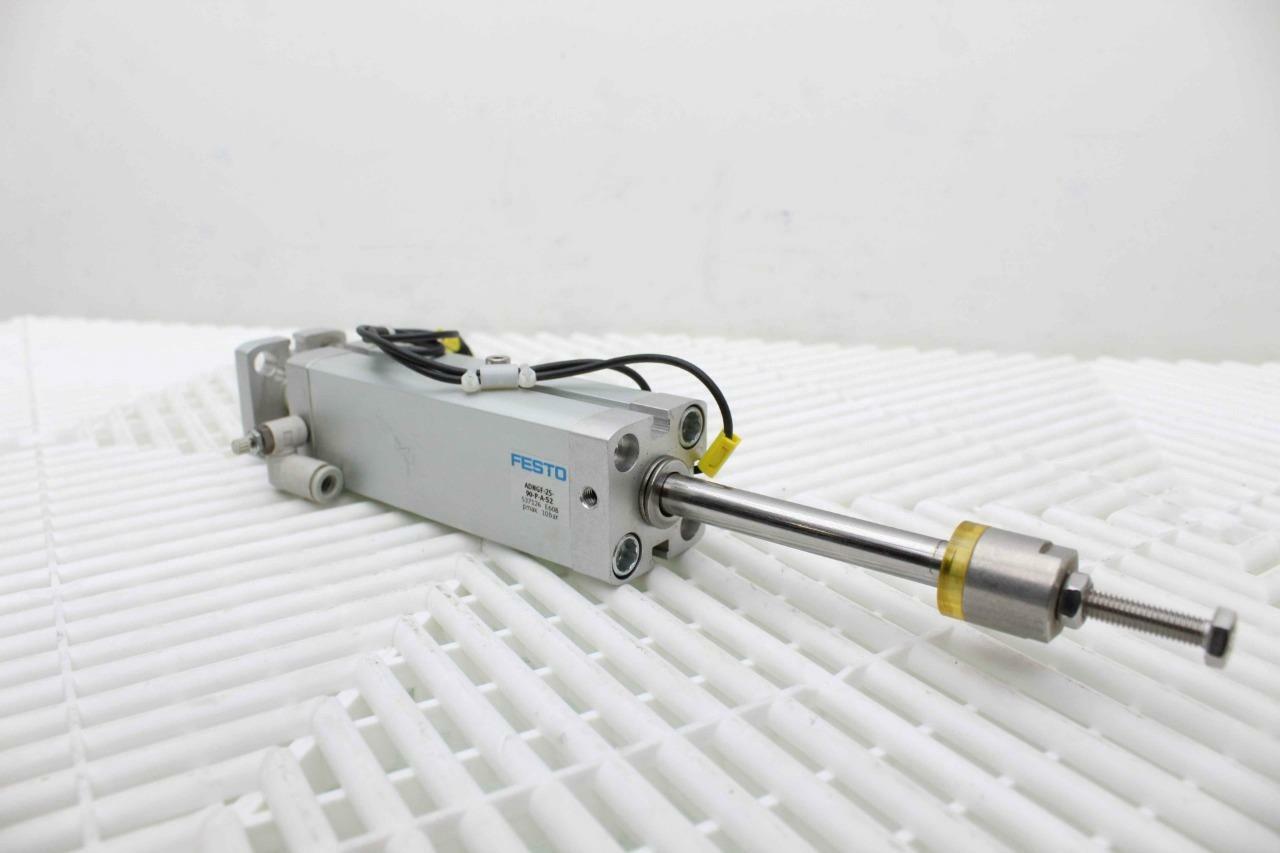

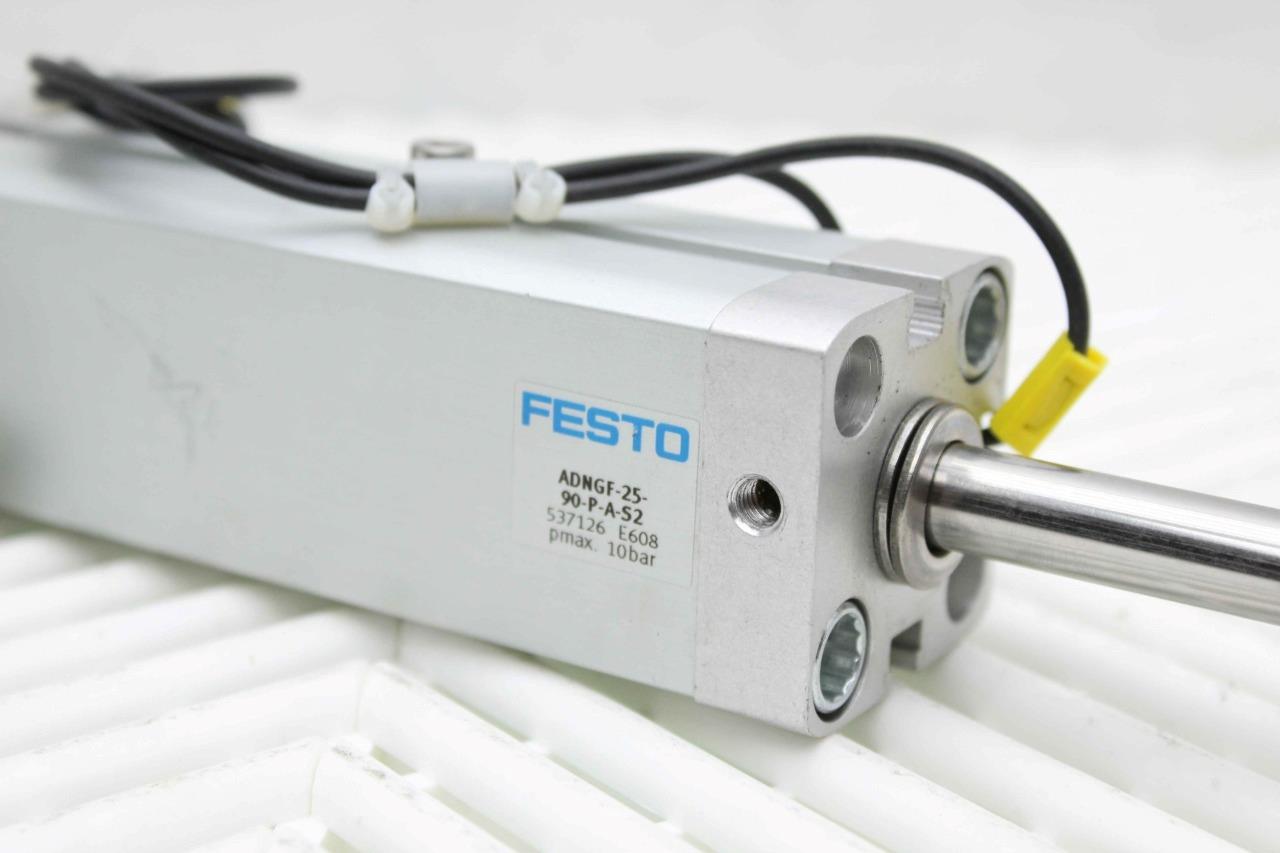

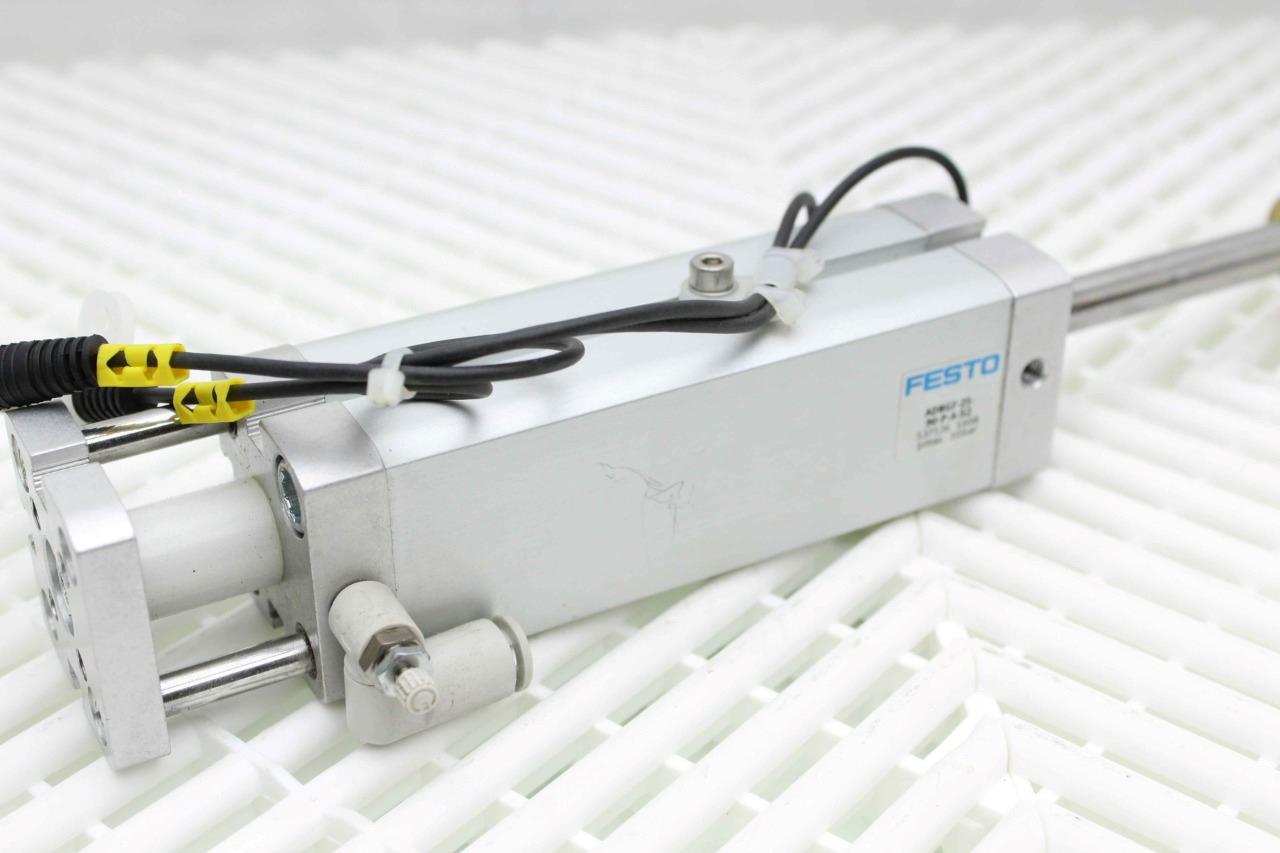

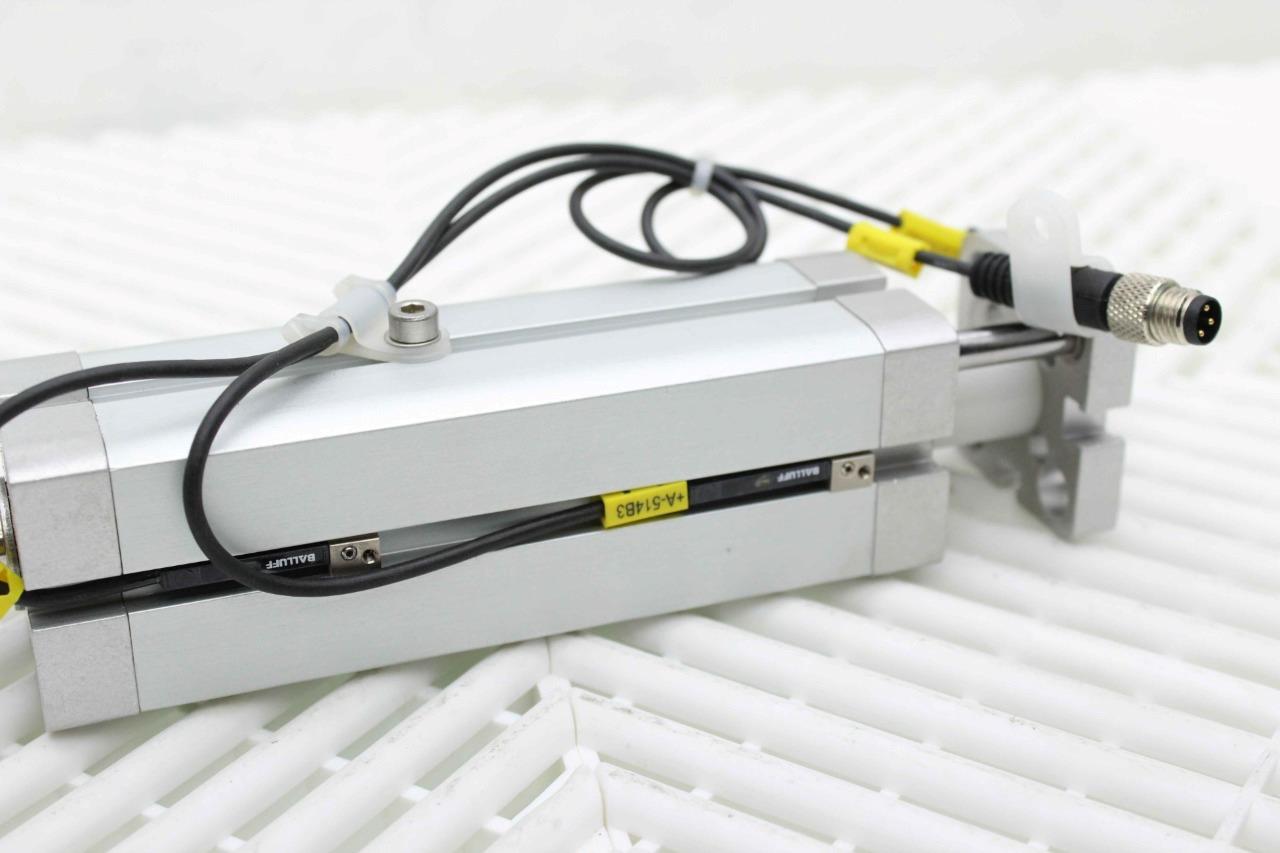

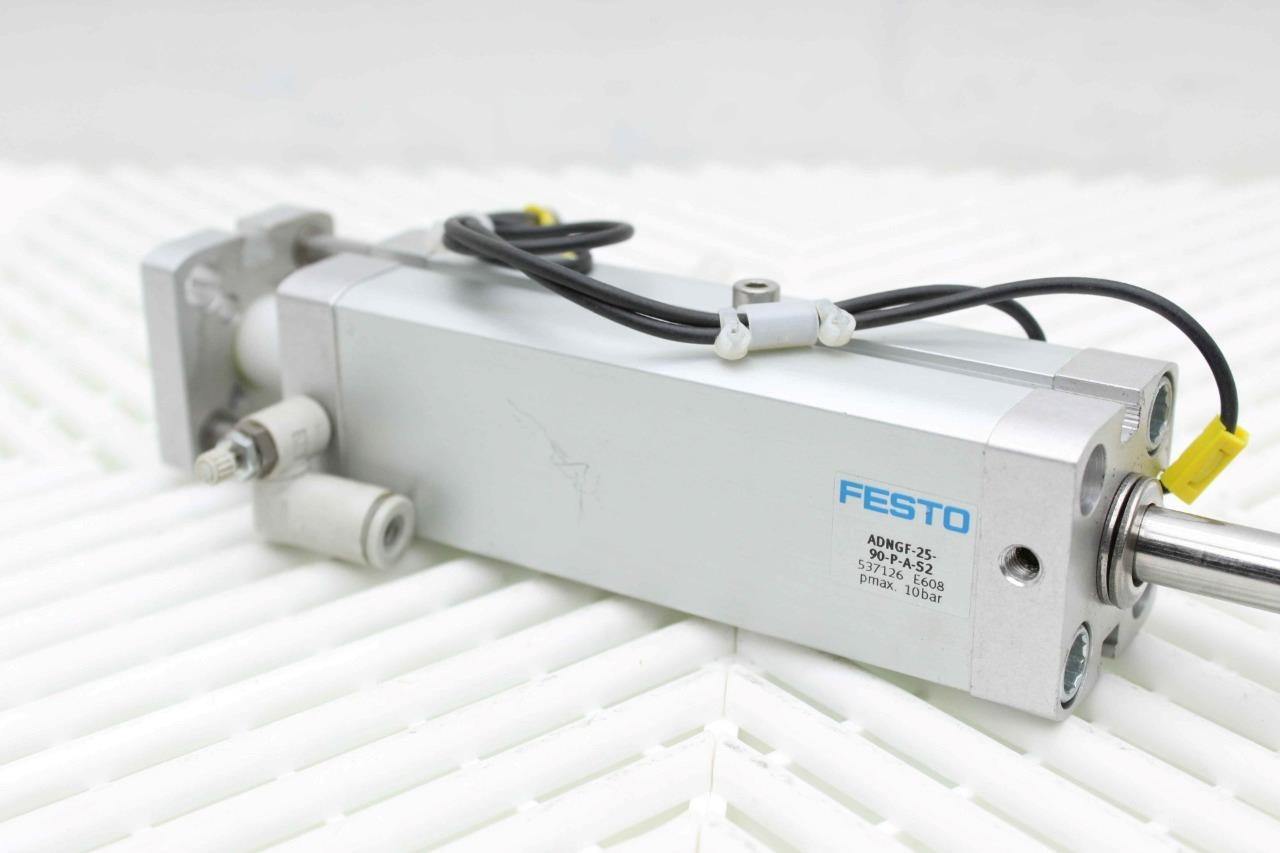

Here is a Festo ADNGF-25-90-P-A-S2 pneumatic double-acting compact cylinder with 25mm piston rod diameter and proximity sensors. In good condition with minimal wear. Minor scuffs may be visible on exterior.

LOCATION: C1804

05/22 AD

5/26 RL
Technical Specifications
make festo
part number adngf-25-90-p-a-s2
type double-acting compact cylinder
piston diameter 25 mm
stroke length 90mm
max pressure 10 bar

Item Condition: Used Shipping

Primary Shipping: Free USPS Ground Advantage (

Additional information

Weight 1.81 kg
Dimensions 12.00 × 6.00 × 6.00 cm
Brand

Festo
Cylinder Action

Double-Acting
Cylinder Type

Compact Cylinder
MPN

ADNGF-25-90-P-A-S2
Stroke Length

90mm
Suitable Media

Compressed Air
Series

ADNGF
Standard

ISO 21287
Product Family

DIN ISO 21287 Compact Cylinder
Mounting Style

Through-hole mounting
Country of Manufacture

Germany
Seal Material

NBR / PUR
Operating Temperature

-20°C to +80°C
Port Size

M5
Max pressure

10 bar
Piston Diameter

25mm
RoHS Compliant

Yes
Minimum Operating Pressure

1.5 bar
Cushioning

Elastic end-position cushioning (P)
Position Sensing

Compatible with T-slot sensors (S2 = with proximity sensor slots)
Material (Body)

Aluminium
Piston Rod Thread

M8
Rod End Type

Male Thread
Condition

Used
