Festo JMFH-5-1/4-S Double Solenoid Valve w/ 2x Festo MSFG-24/42-50/60-OD Coils – Used

Original price was: $135.83.Current price is: $115.46.

1 in stock

SKU: 178086952553 Category:

Description

Festo  JMFH-5-1/4-S

All Photos (7 images) — Click thumbnail to view Description

Here is a Festo JMFH-5-1/4-S Double Solenoid Valve w/ 2x Festo MSFG-24/42-50/60-OD Coils. These items are in great overall condition with minimal if any cosmetic blemishes.

LOCATION: C0205 BIN: C-0205-G

7/21 CV
Technical Specifications
make festo
part number jmfh-5-1/4-s

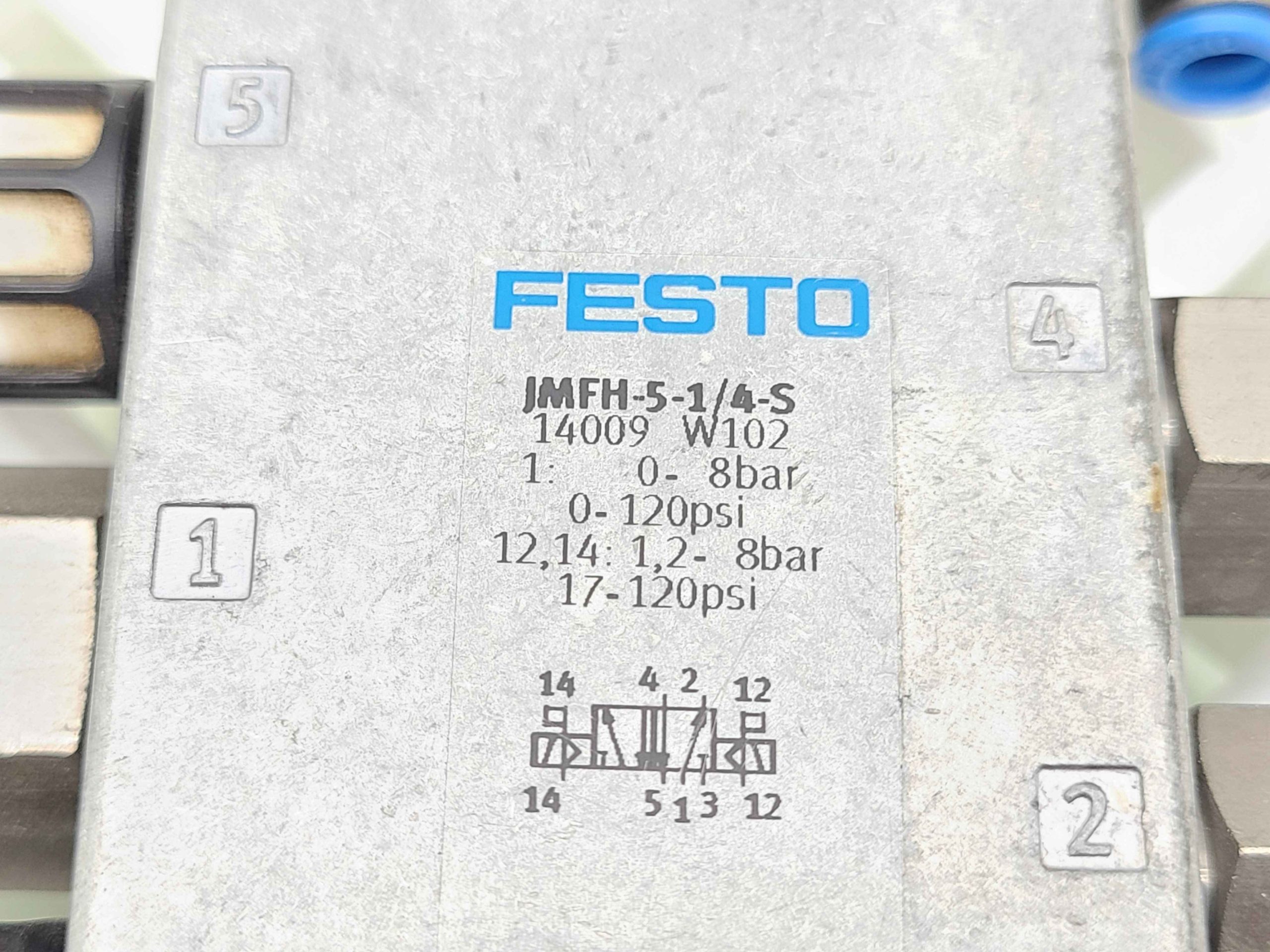

operating pressure 0-8 bar
valve function 5/2-way valves
pneumatic working port g1/4
pilot pressure 1,2 – 8 bar

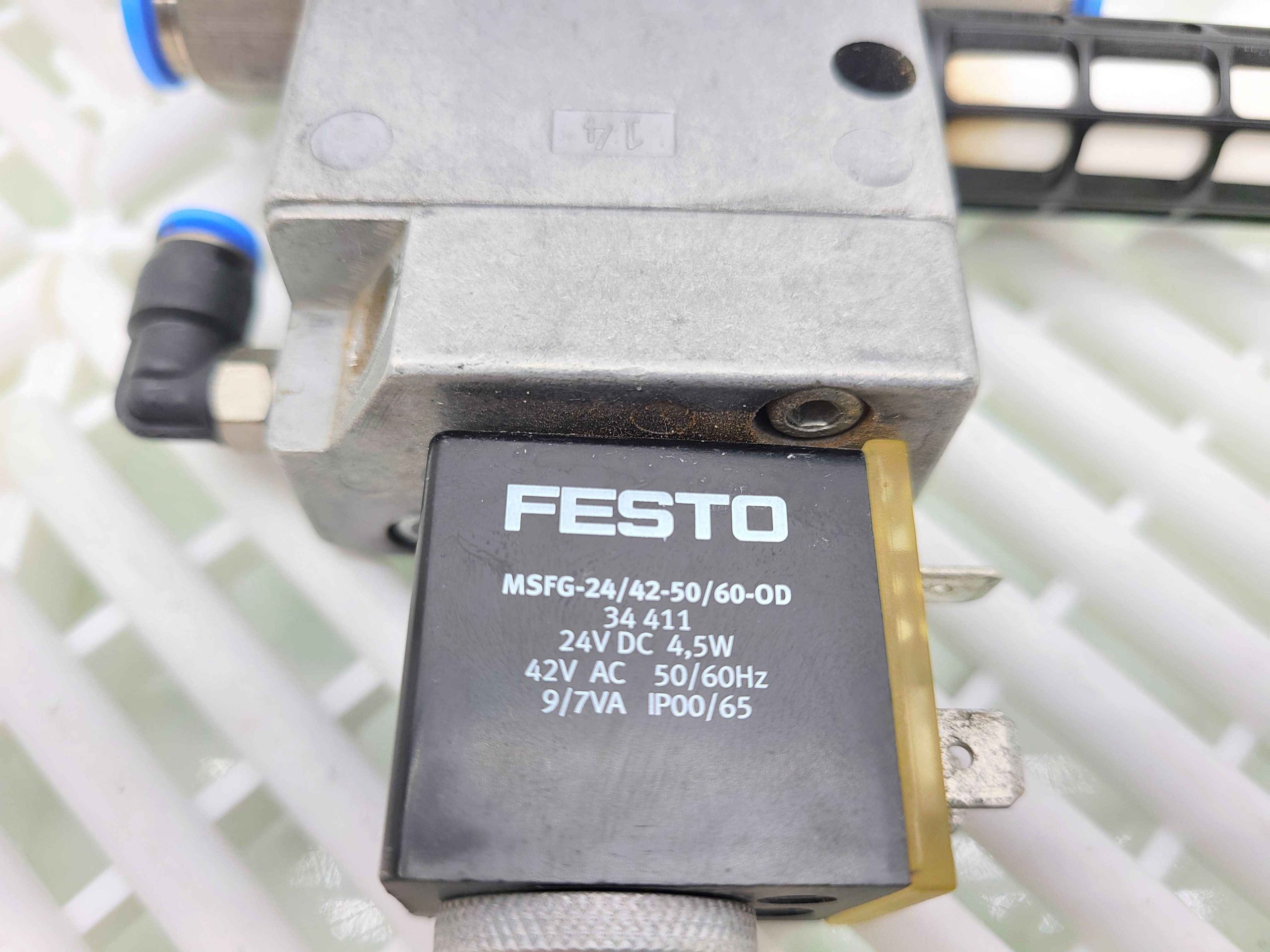

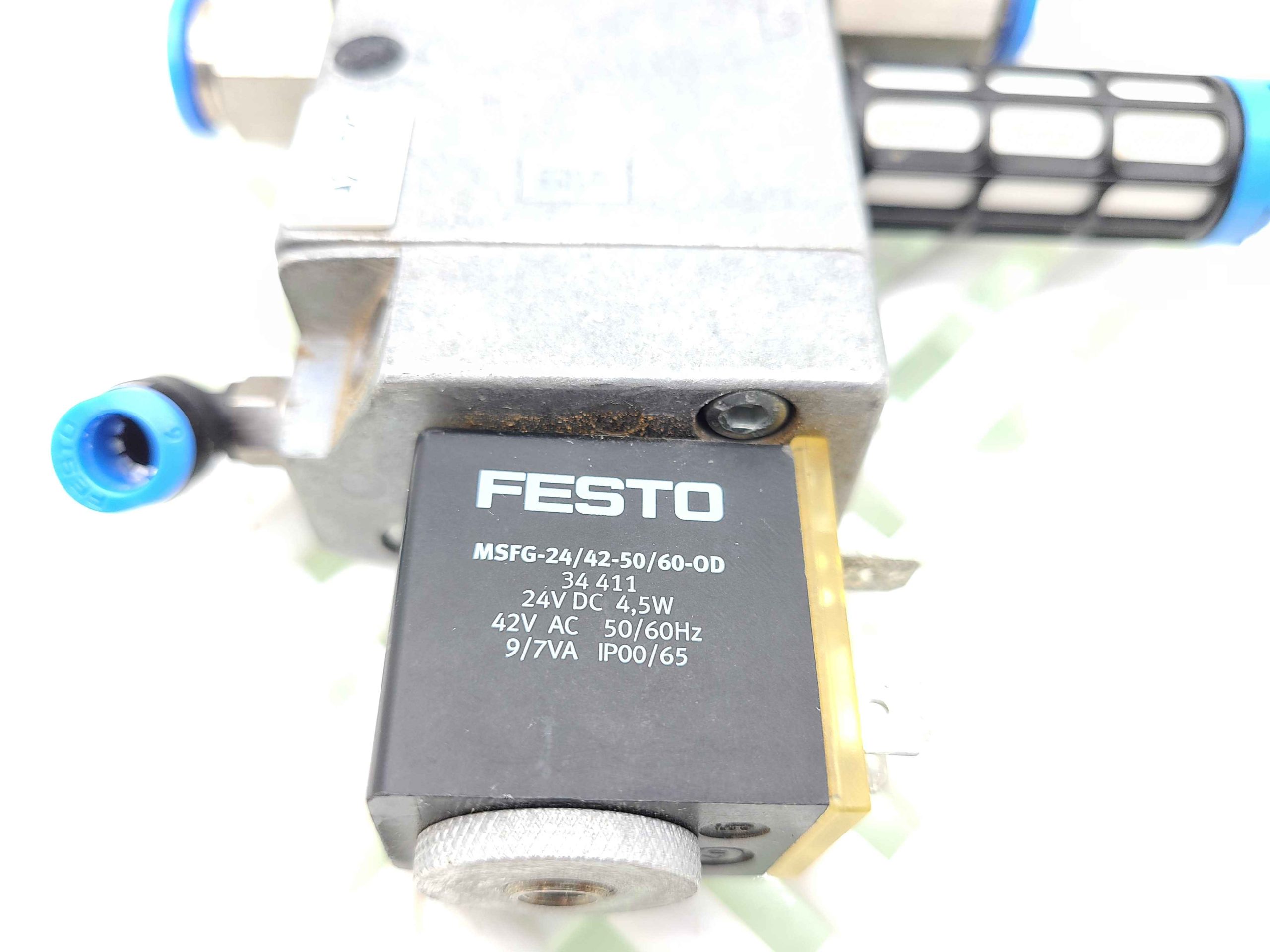

coils 2x msfg-24/42-50/60-od

Item Condition: Used Shipping

Primary Shipping: Free USPS Ground Advantage (

Additional information

Weight 0.91 kg
Dimensions 10.00 × 10.00 × 10.00 cm
Brand

Festo
MPN

JMFH-5-1/4-S
Type

Solenoid Valve
Medium

Compressed Air
Series

JMFH
Voltage

24V AC/DC, 42V AC
Frequency

50/60 Hz
Body Material

Aluminum
Connection Type

Sub-base Mounting
Number of Ports

5
Mounting Type

Sub-Base / Manifold Mountable
Number of Positions

2
Actuation Type

Double Solenoid (Bistable)
Connector Type

Form A (EN 175301-803)
Seal Material

NBR
Condition

Used
Port Size

1/4 in NPT
Protection class

IP65
Coil Voltage

24/42 V AC/DC
Number of Coils

2
Operating Pressure Range

2.5 – 8 bar (36 – 116 psi)
Coil MPN

MSFG-24/42-50/60-OD
Valve Configuration

5/2-Way
