Description

Koganei CDA25x25

All Photos (7 images) — Click thumbnail to view Description

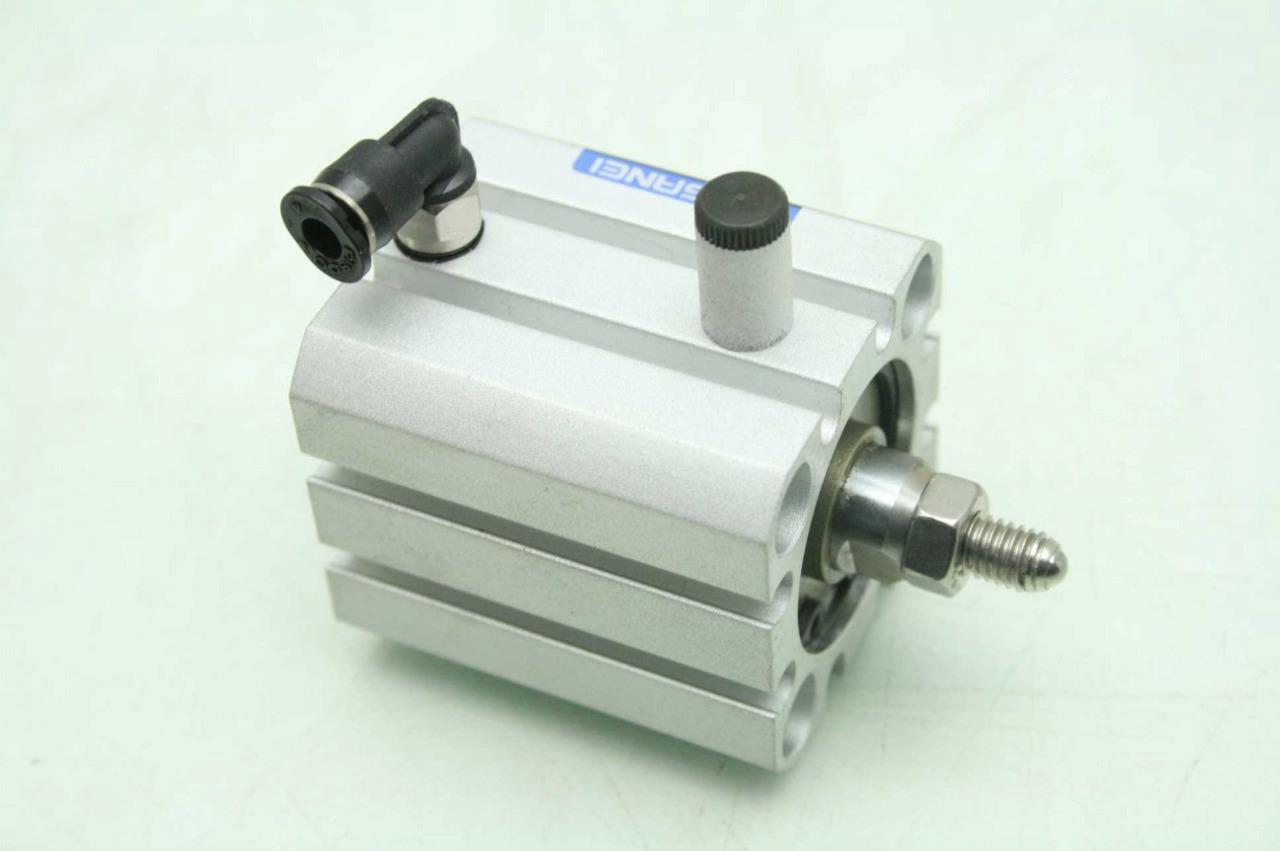

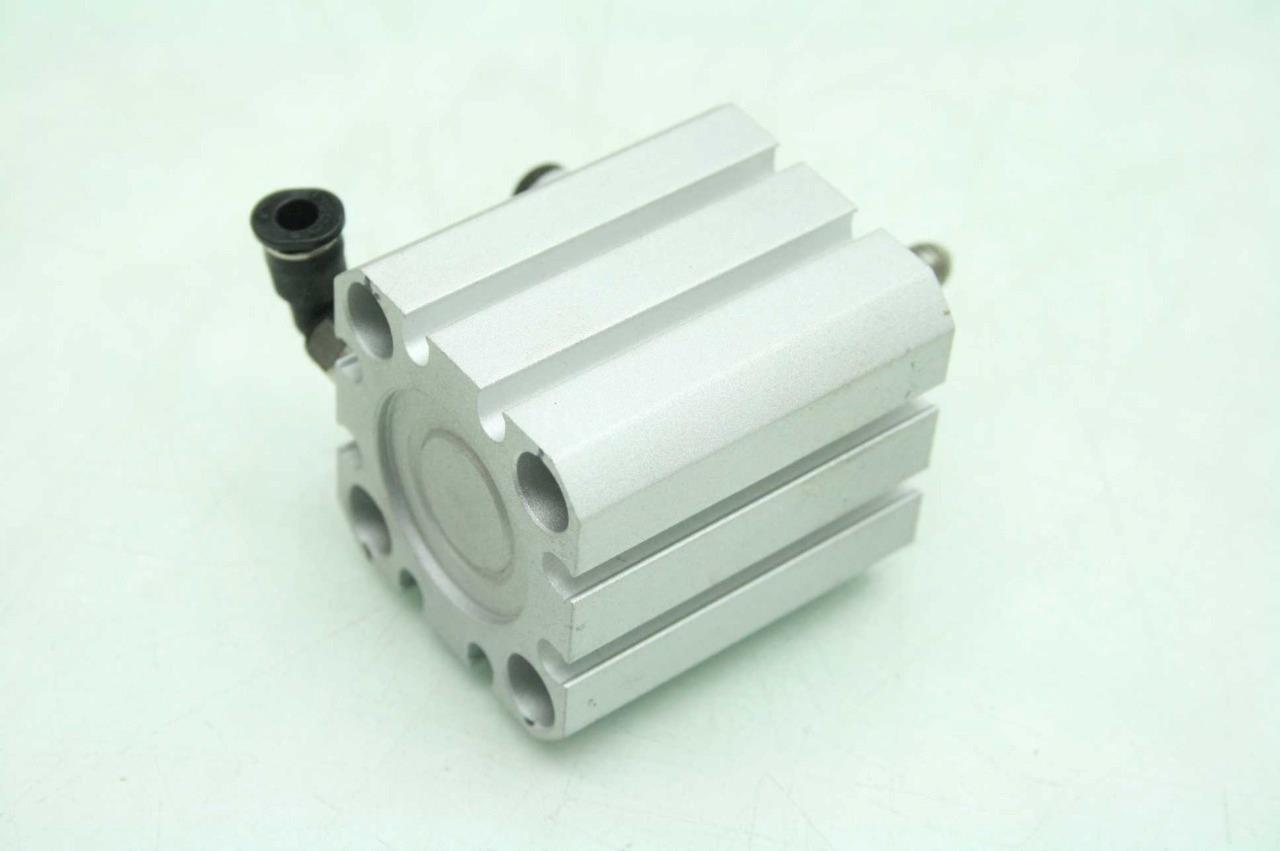

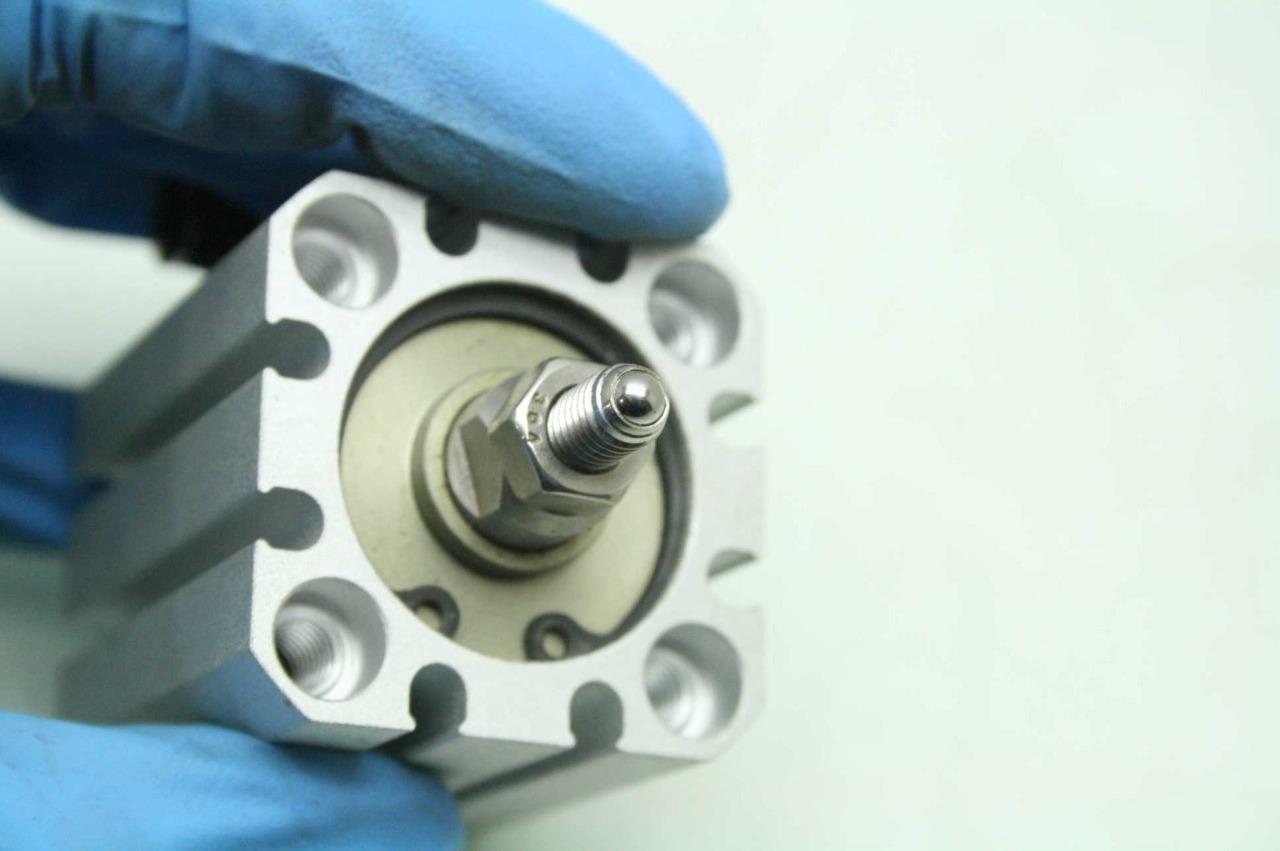

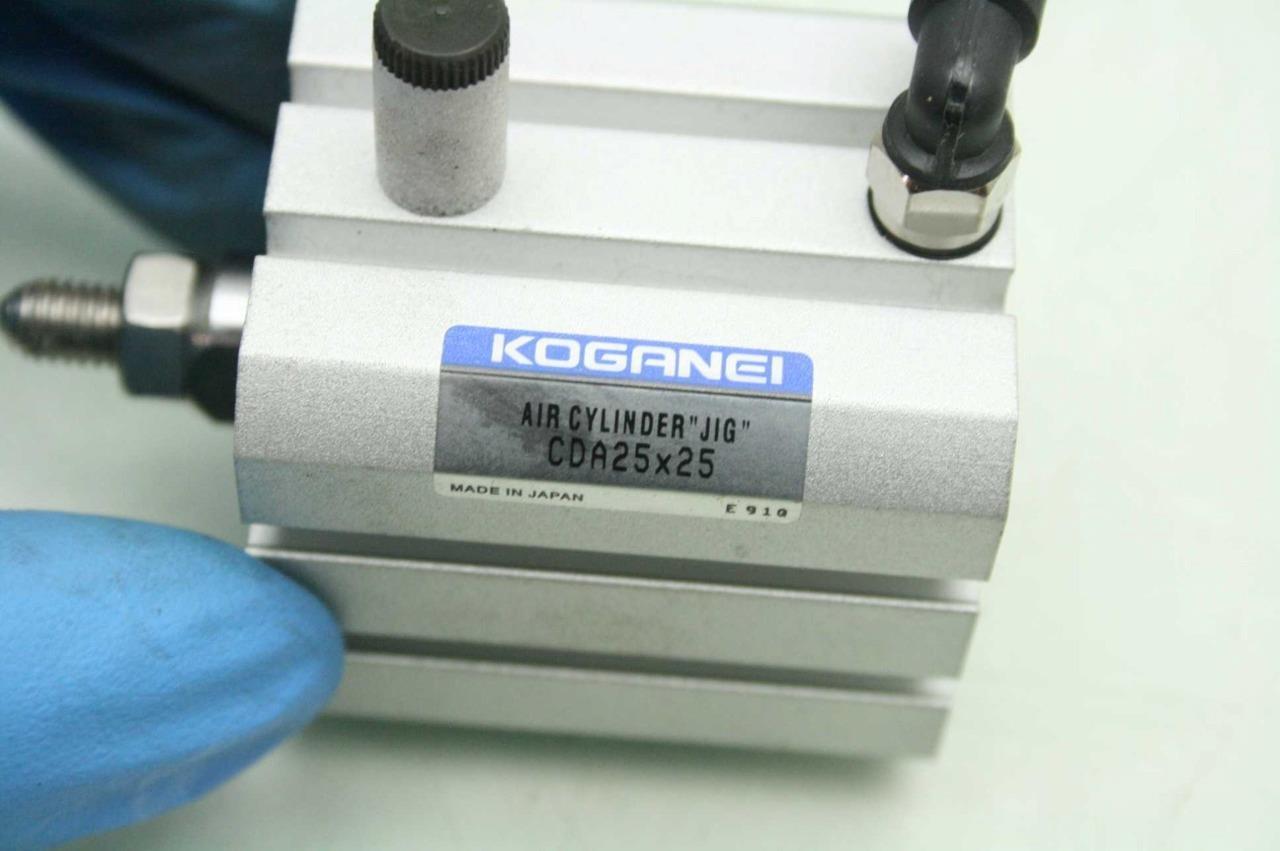

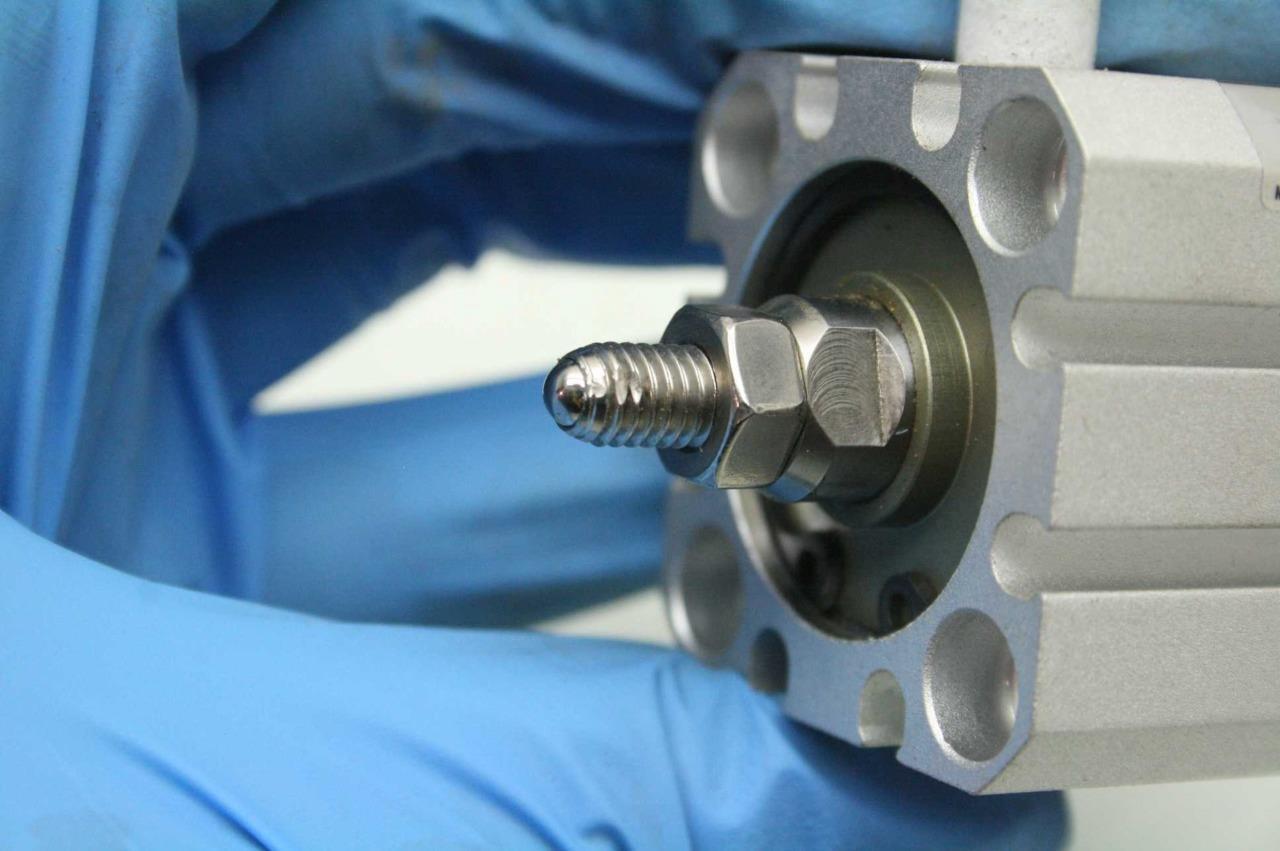

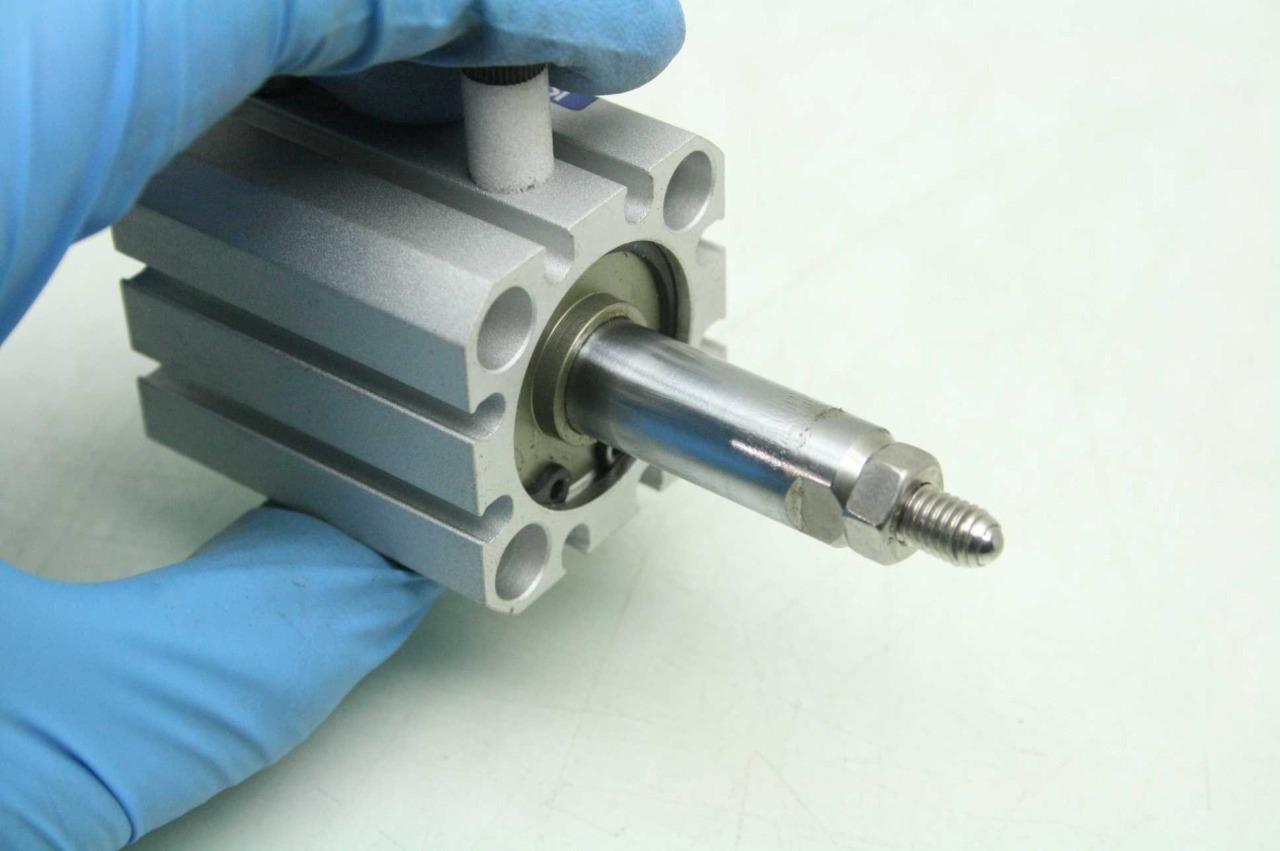

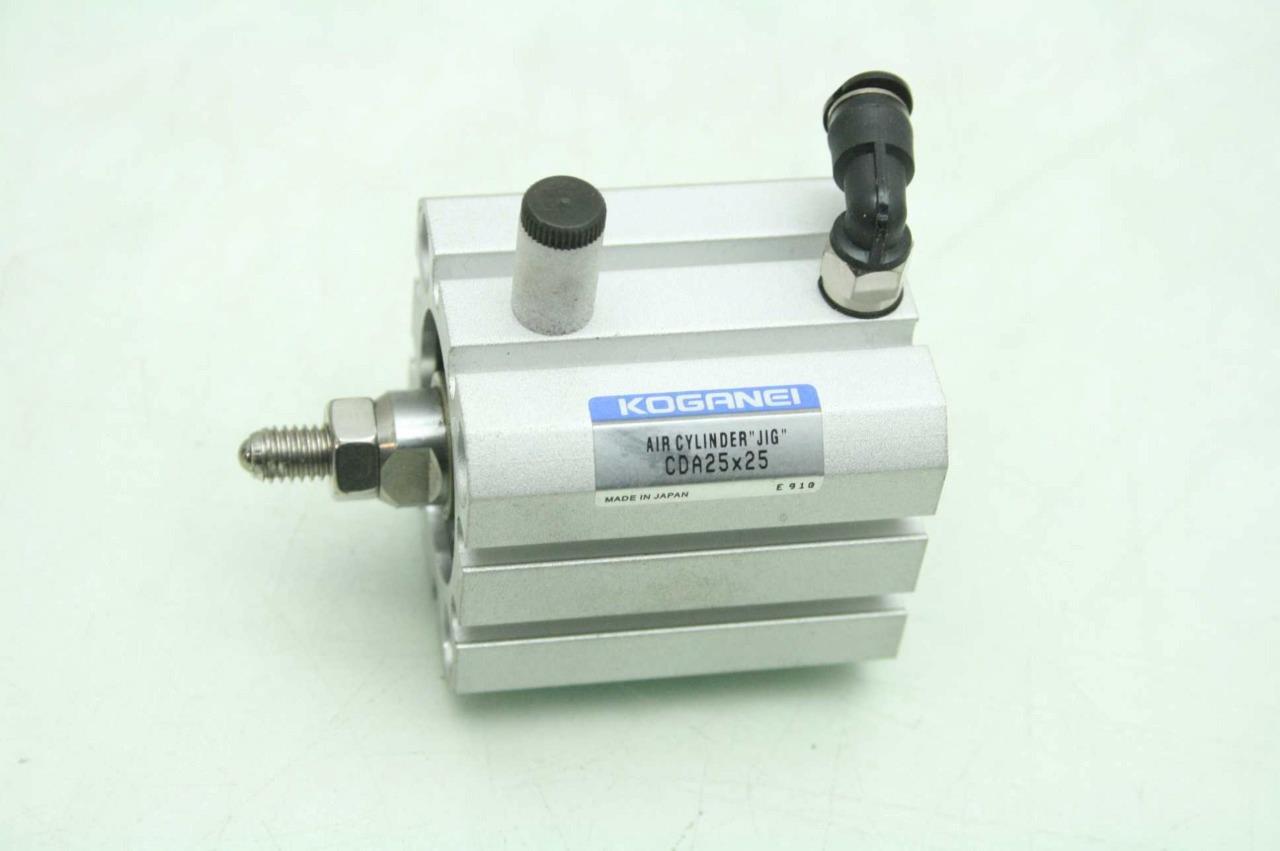

Here is a Koganei air cylinder. This was pulled from late model automation equipment and is in excellent functional and cosmetic condition with smooth stroke. The seals are in excellent shape and the cylinder includes dual limit switches as shown. This comes with a 30 day right of return.

LOCATION: C1505 BIN: C-1505-I

05/24 ND

5/26 RL

Technical Specifications
make	koganei
series model	cda25x25
bore x stroke	25mm x 25mm

Item Condition: Used Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

Weight	0.91 kg
Dimensions	8.00 × 6.00 × 3.00 cm
Bore Diameter	25mm
Brand	Koganei
Cylinder Action	Double-Acting
Cylinder Type	Compact Cylinder
MPN	CDA25x25
Stroke Length	25mm
Material	Aluminum
Series	CDA
Media	Air
Product Type	Pneumatic Cylinder
Mounting Style	Single Clevis, Double Clevis, Foot, Trunnion (Multiple Options)
Country of Manufacture	Japan
Port Size	M5
Operating Pressure	0.05 to 1.0 MPa
Cushion Type	Rubber Bumper
Condition	Used
