Description

Nexen 964740 BSB-3-13.0-50.0-95.0-7.0-NO-STD

All Photos (3 images) — Click thumbnail to view Description

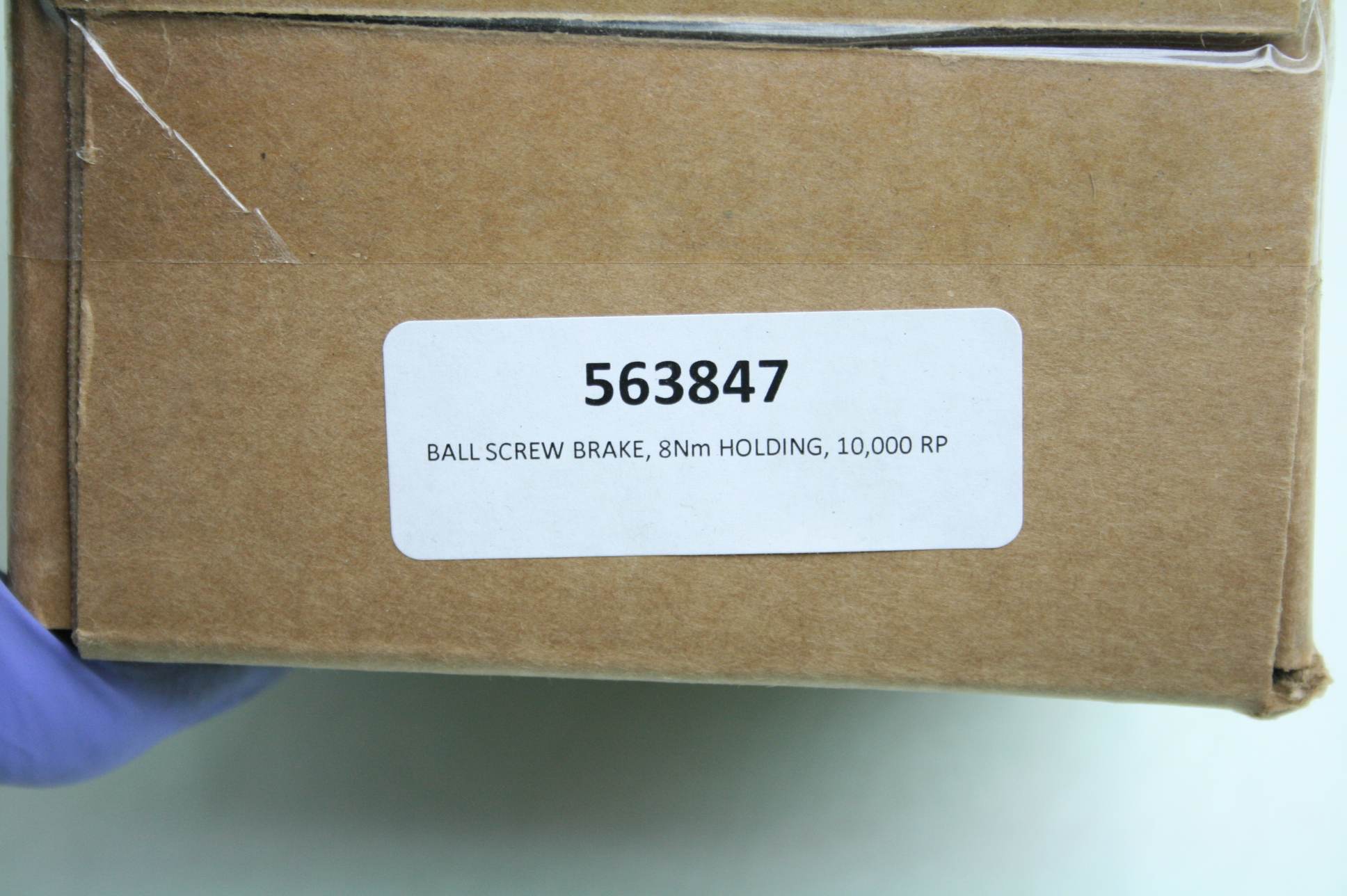

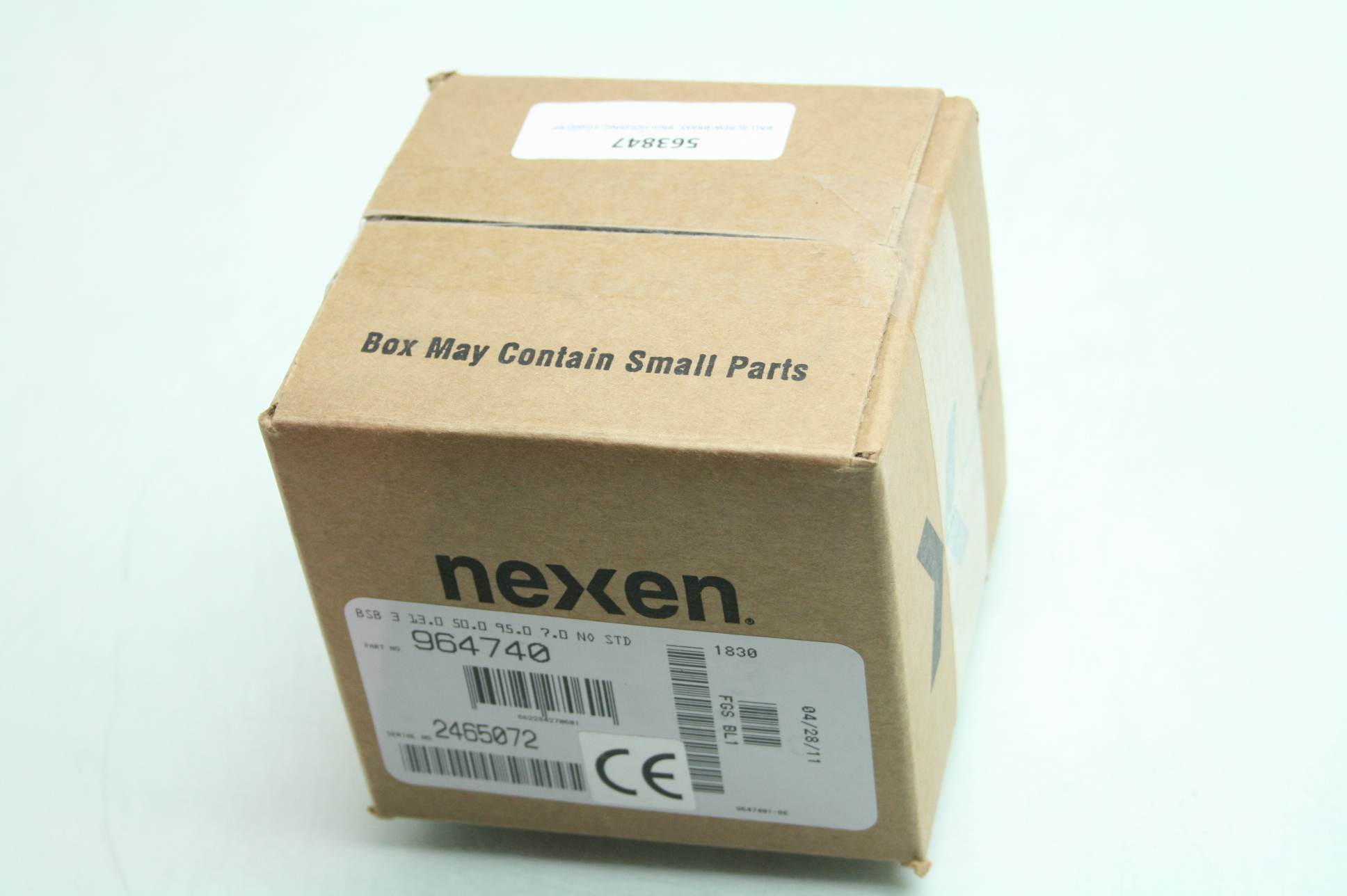

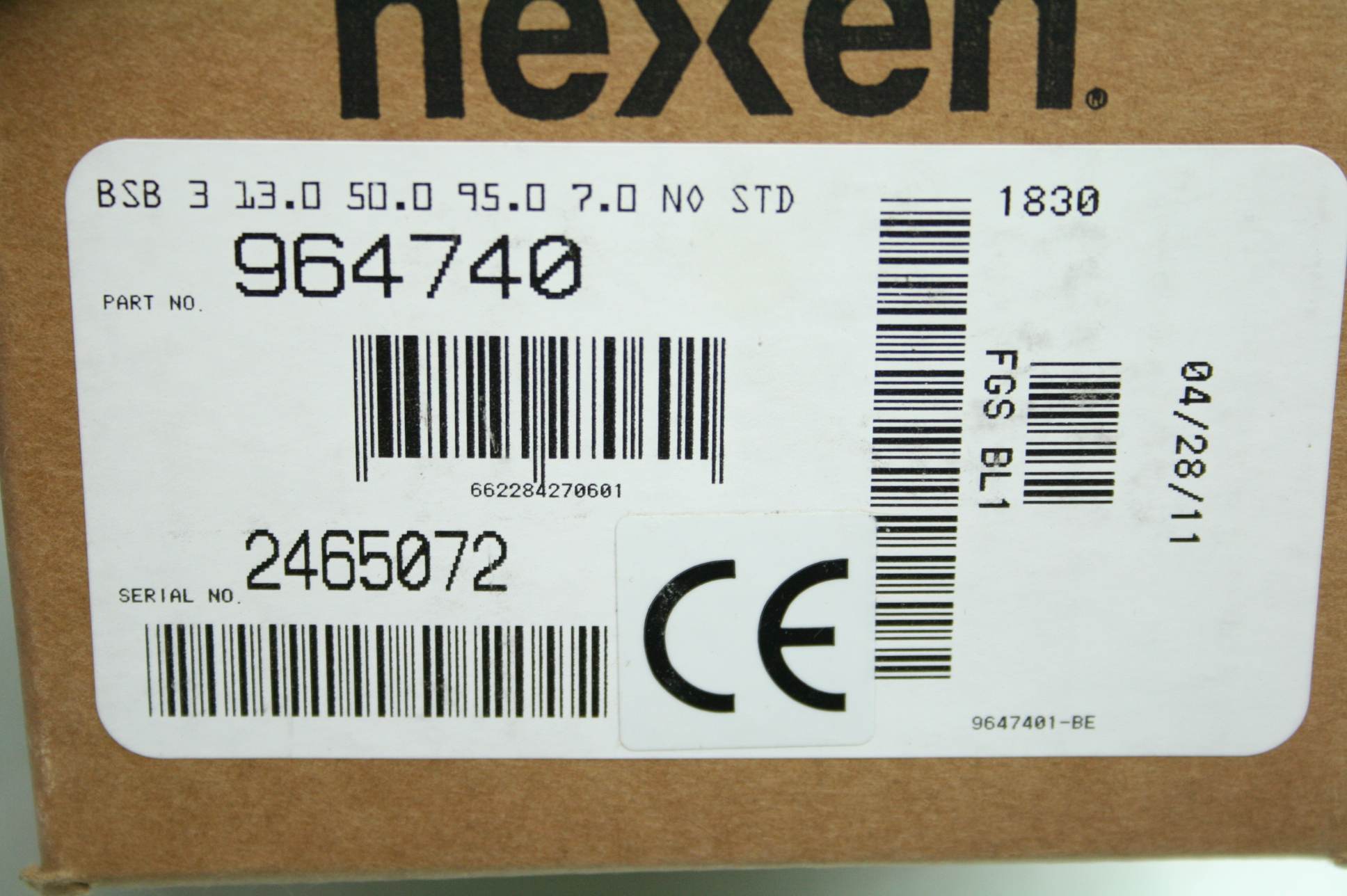

Here is a Nexen enclosed ball screw brake. These are new in factory packaging as shown. Full dimensions & paperwork are pictured above.

For more technical information please follow this link: Here

LOCATION: D0202 +RF-004 + RR-004 15-7ListC

6/26 RL

Technical Specifications
make	nexen 964740
model	bsb-3-13.0-50.0-95.0-7.0-no-std
bore style	straight bore
max rpm	10000 rpm
bore size	13mm (varies 6mm-16mm)
overall length	77.7mm
minimum static brake torque	5nm
input bolt circle	95mm
input pilot od	50mm
port size	1/4″ npt
appx engagement response time	12ms
appx release response time	75ms

Item Condition: New Open box Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

You're viewing: New Nexen 964740 Pneumatic Ball Screw Shaft Brake BSB-3-13 / 13mm Bore – New other (see details)
