Description

SMC CDQ2L32-10D-A73

All Photos (4 images) — Click thumbnail to view Description

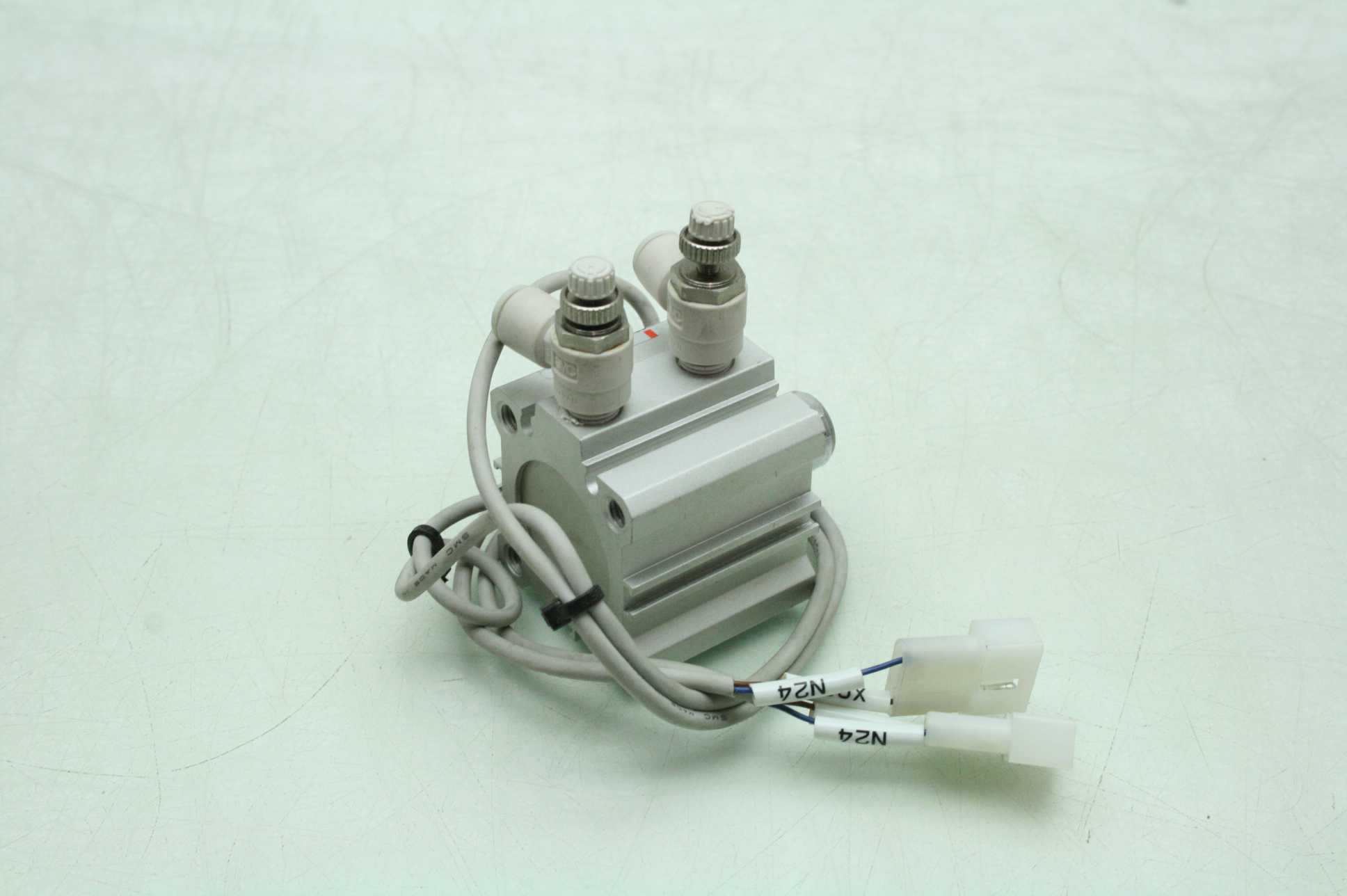

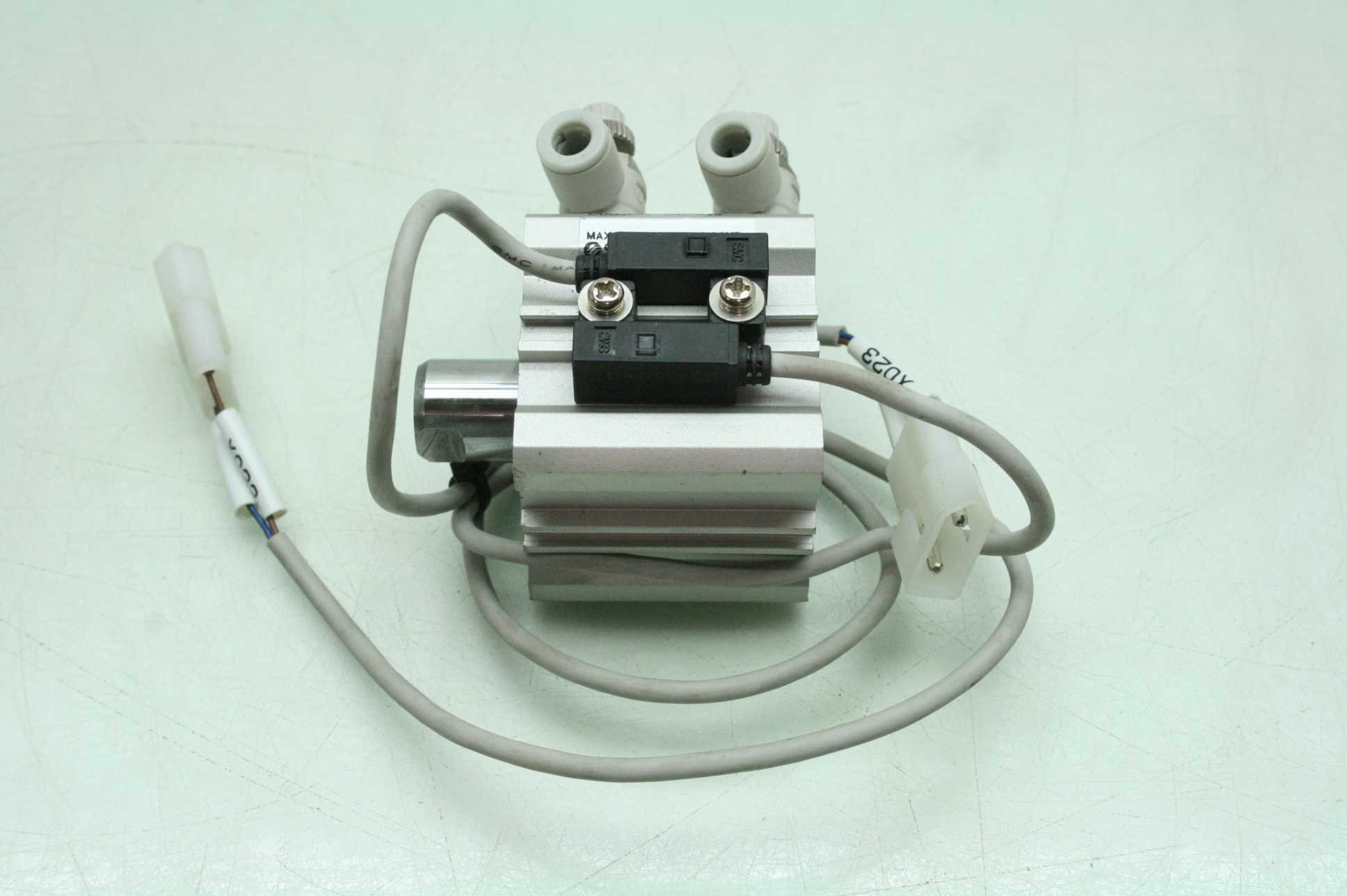

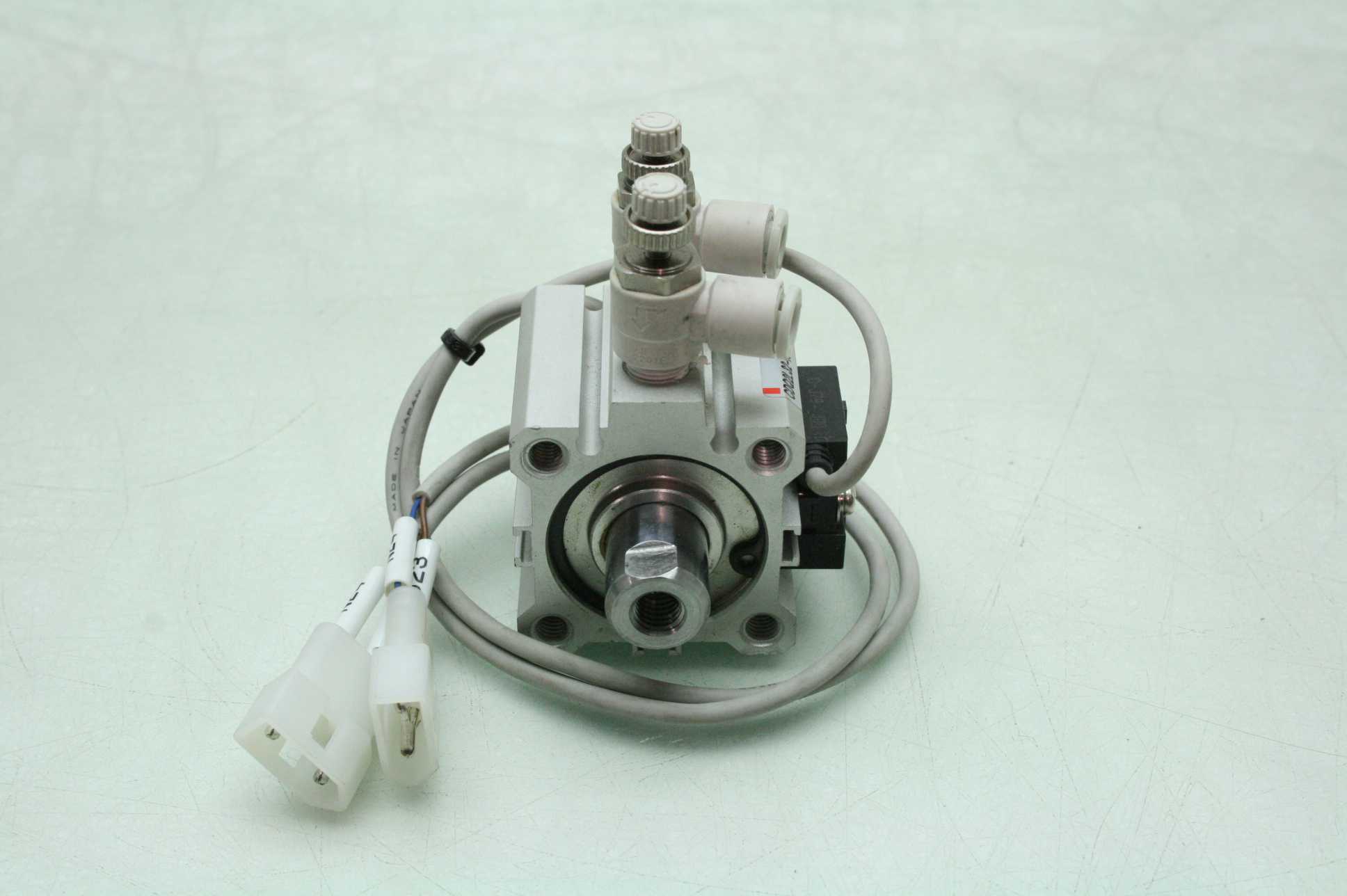

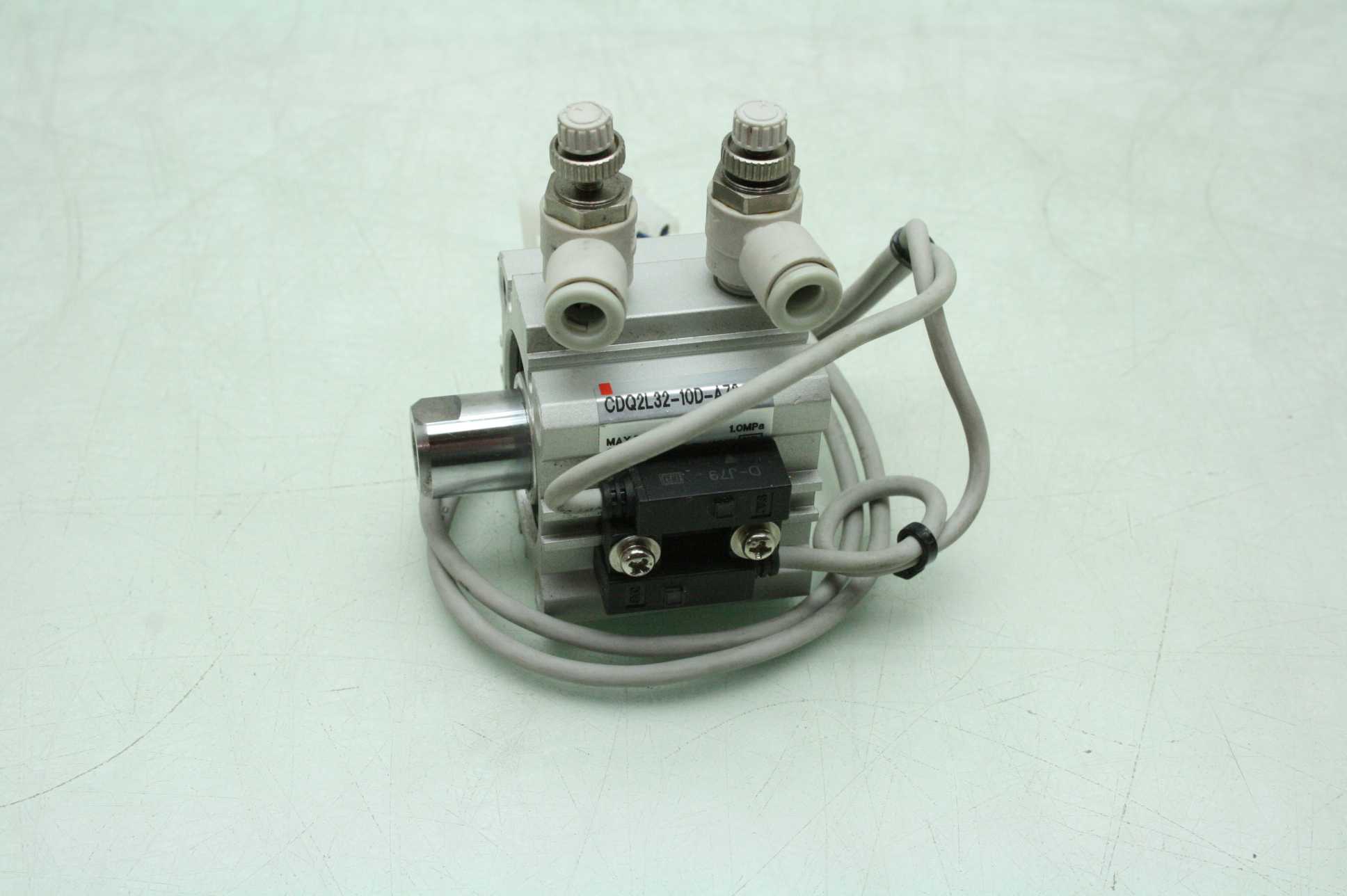

Here is a SMC pneumatic air cylinder with limit switch. This was pulled from late model automation equipment and is in excellent functional and cosmetic condition with smooth travel and no play. This comes with a 30 day right of return.

LOCATION: ; C 1105 17-4ListE

5/26 RL

Technical Specifications
make	smc
model	cdq2l32-10d-a73
stroke	10mm
bore	32mm
push-to-connect fitting size	6mm (qty 2)

Item Condition: Used Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

Weight	0.45 kg
Dimensions	8.00 × 6.00 × 3.00 cm
Bore Diameter	32mm
Brand	SMC
Country of Origin	Japan
MPN	CDQ2L32-10D-A73
Action Type	Double Acting
Stroke	10mm
Type	Compact Pneumatic Cylinder
Series	CDQ2L
FLUID	Air
Operating Pressure Range	0.05 to 1.0 MPa
Proof Pressure	1.5 MPa
Ambient and Fluid Temperature	-10 to 60Â°C
Mounting Style	Through-hole (Foot) Mounting
Rod End Configuration	Male Thread
Cushion	None (Rubber Bumper)
Piston Seals	NBR
Auto Switch Included	Yes
Switch Type	Reed Switch
Switch Model	D-A73
Switch Voltage	24V DC
Switch Load Current (Max)	40mA
Switch Wiring	2-Wire
Cylinder Tube Material	Aluminum Alloy
Piston Rod Material	Stainless Steel
Body Style	Compact Square Body
Condition	Used
