Description

SMC MXQ16-30AS

All Photos (7 images) — Click thumbnail to view Description

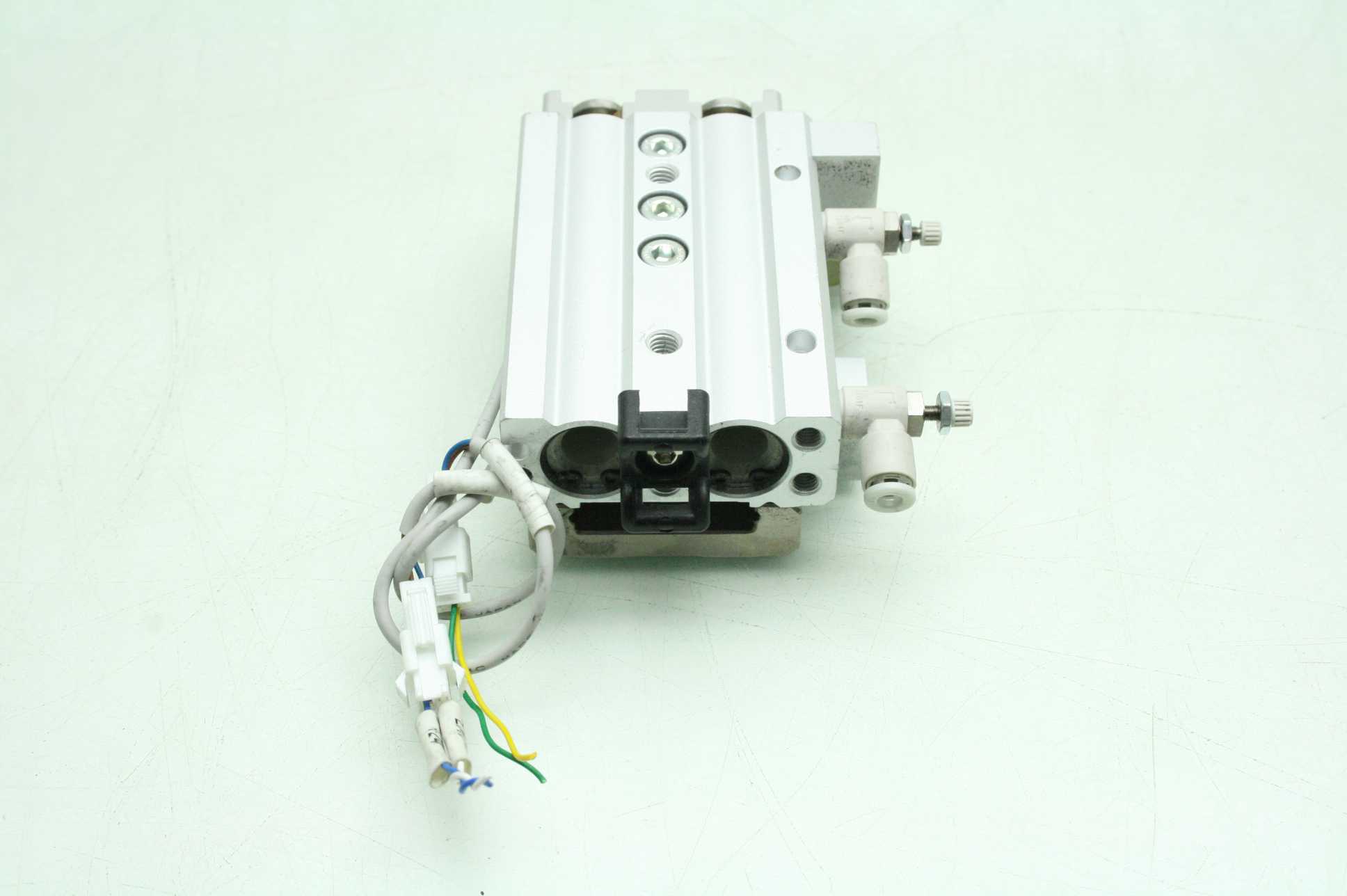

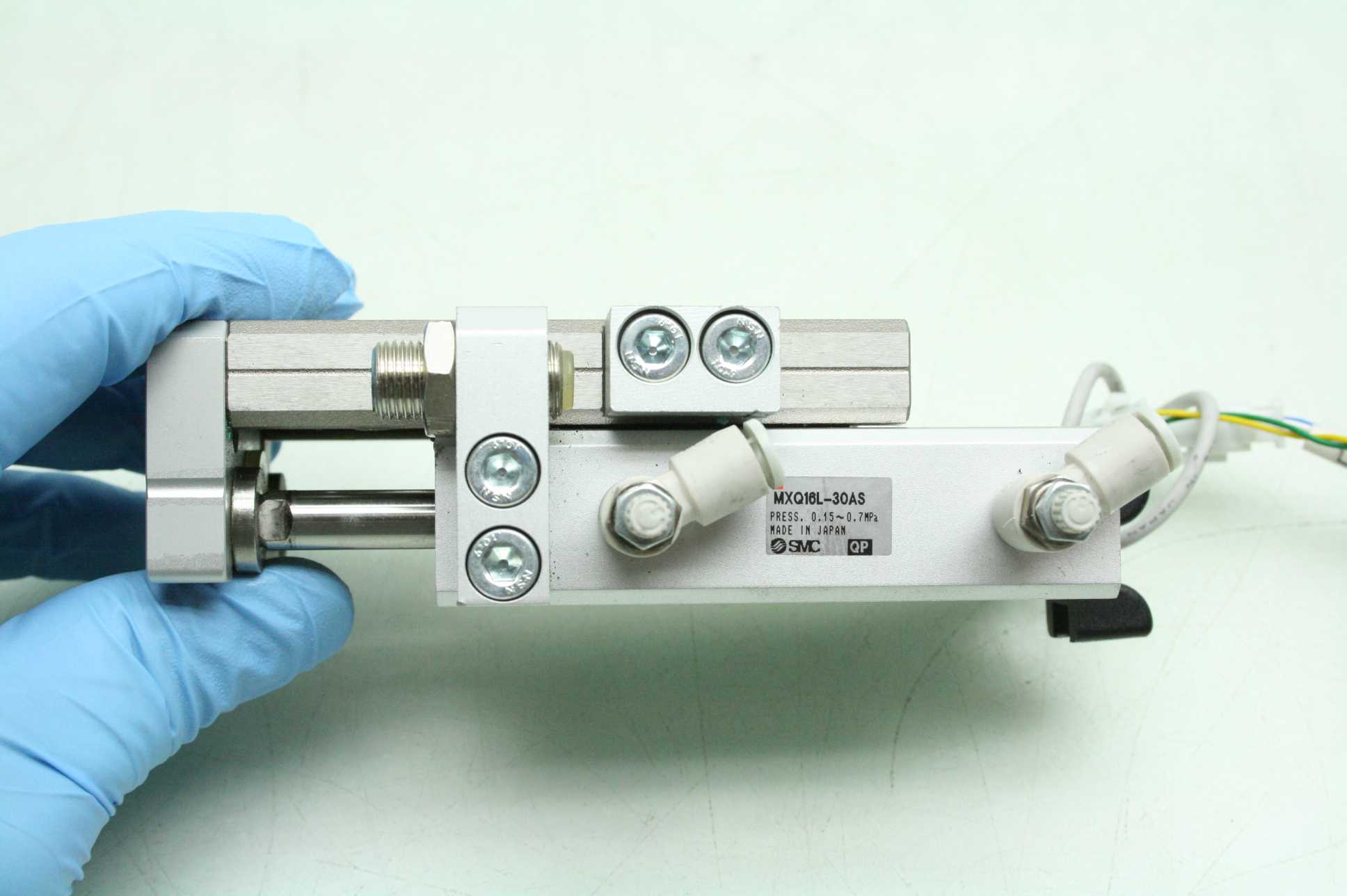

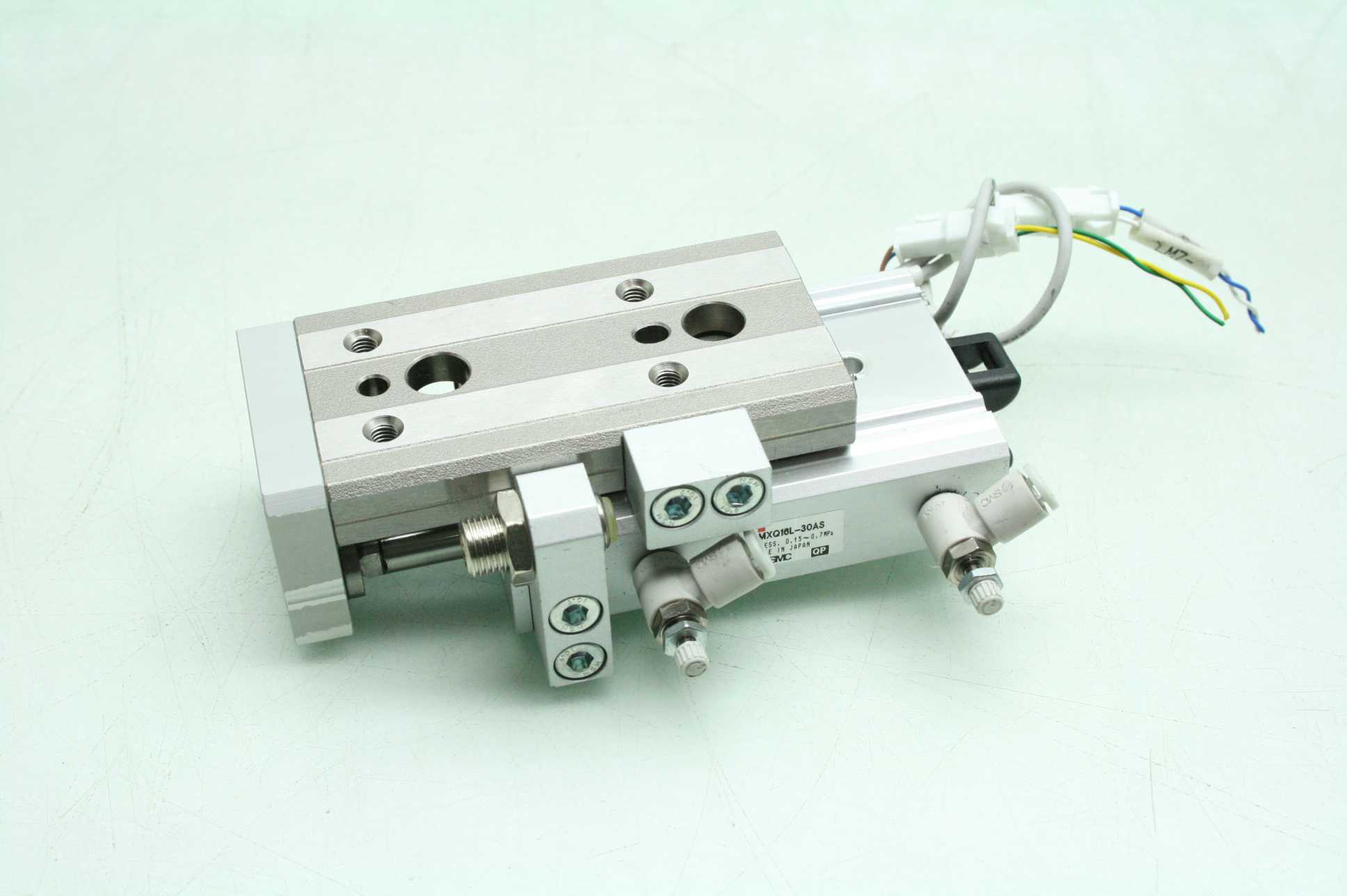

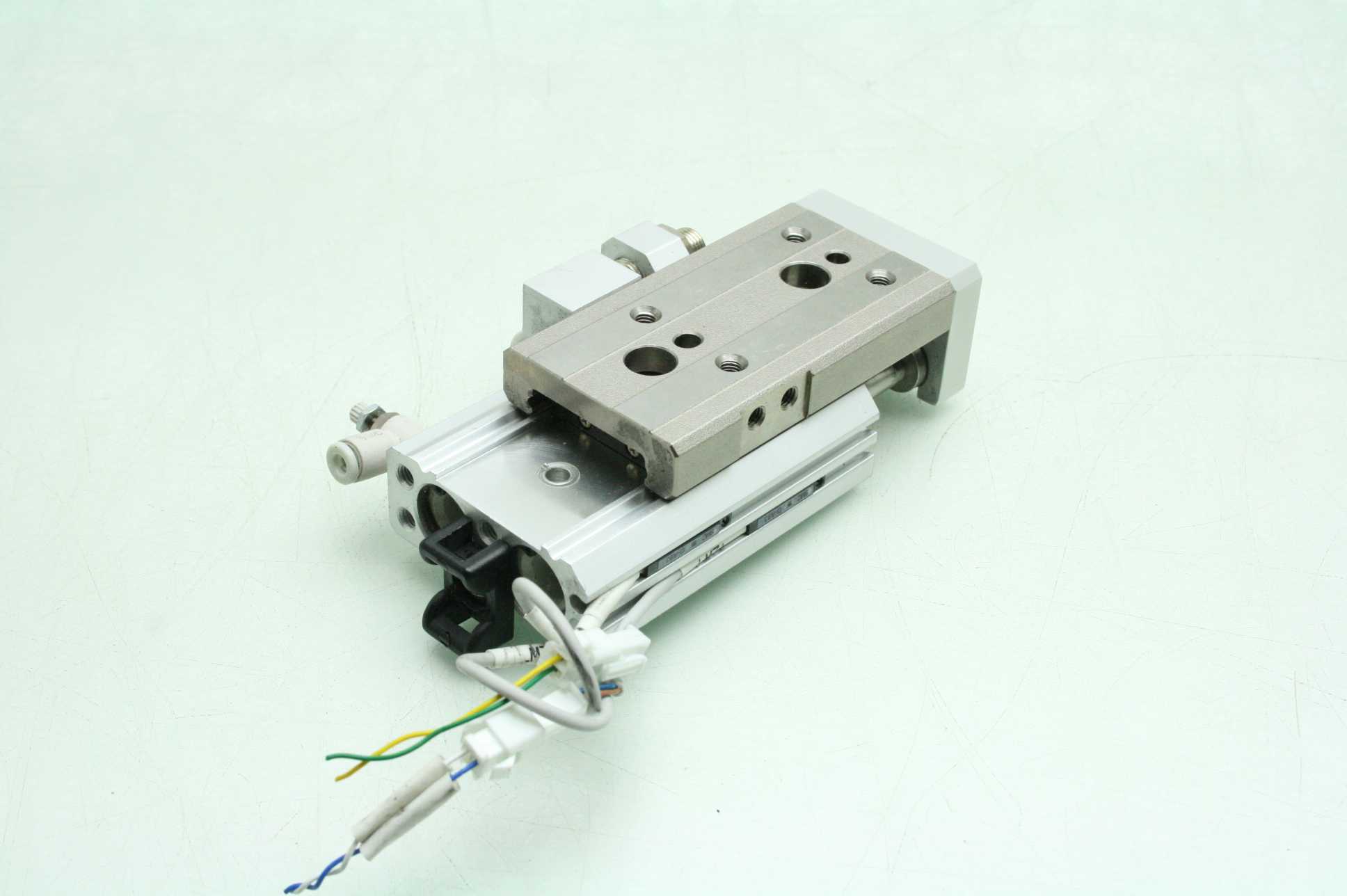

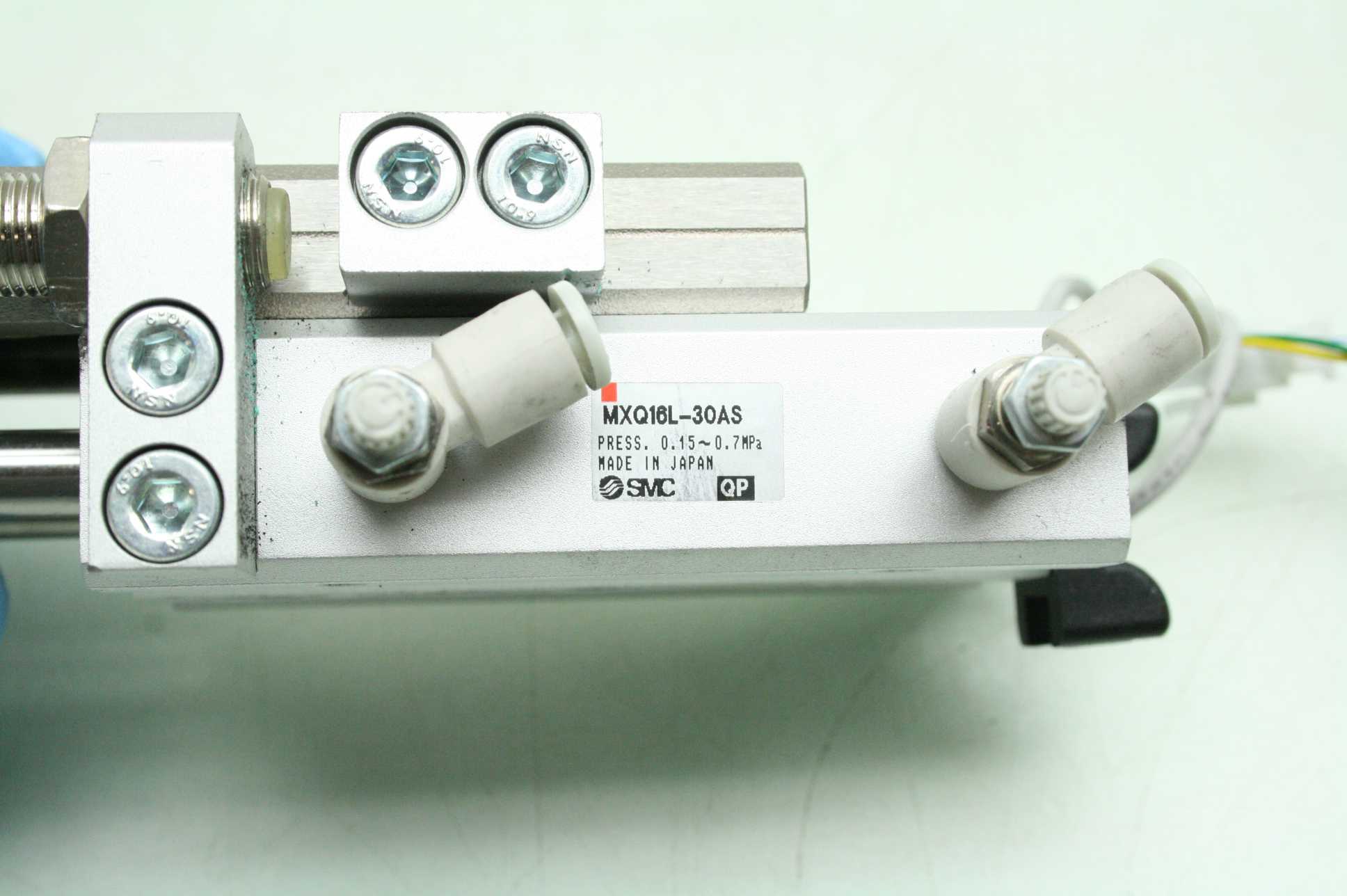

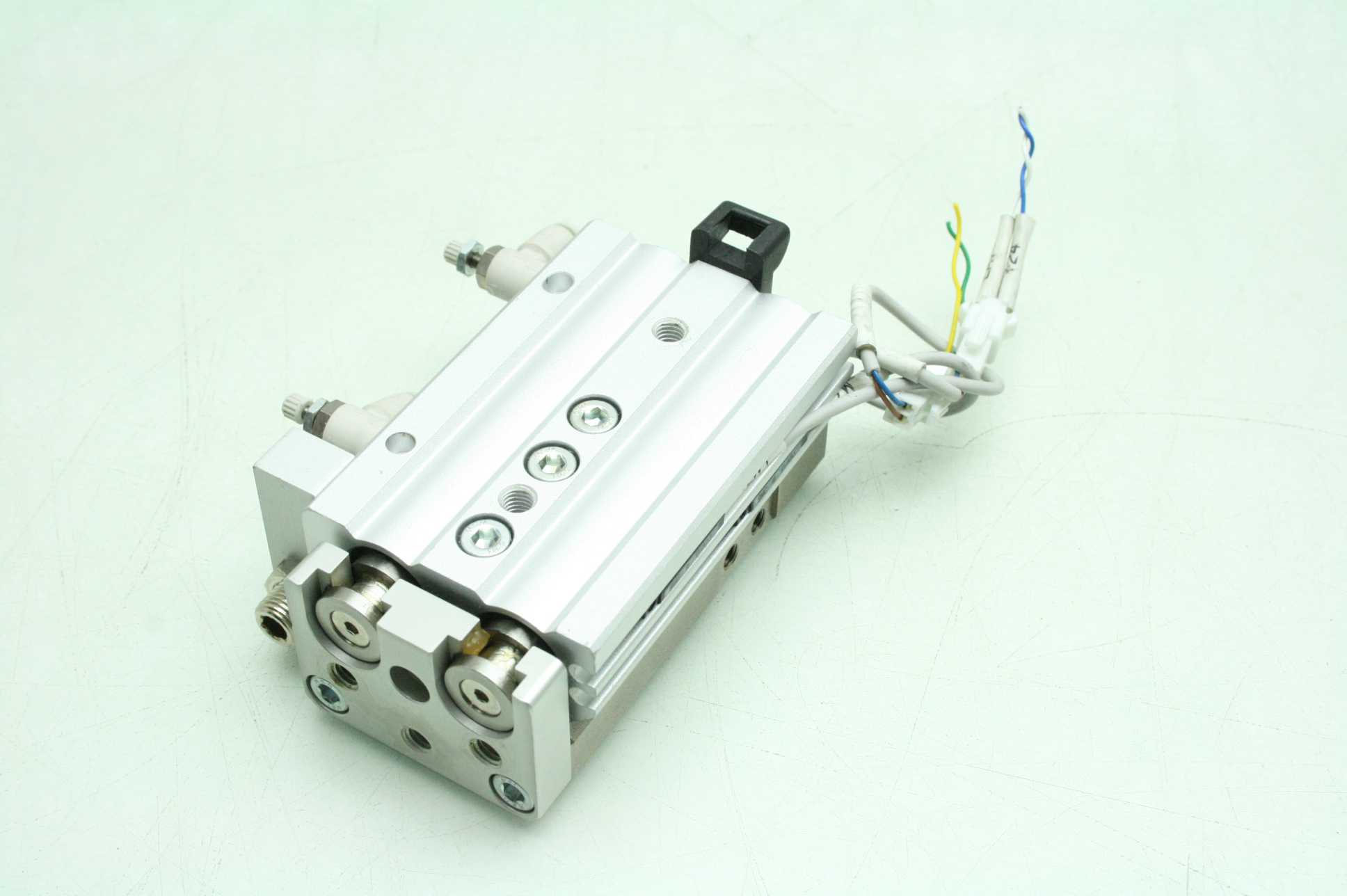

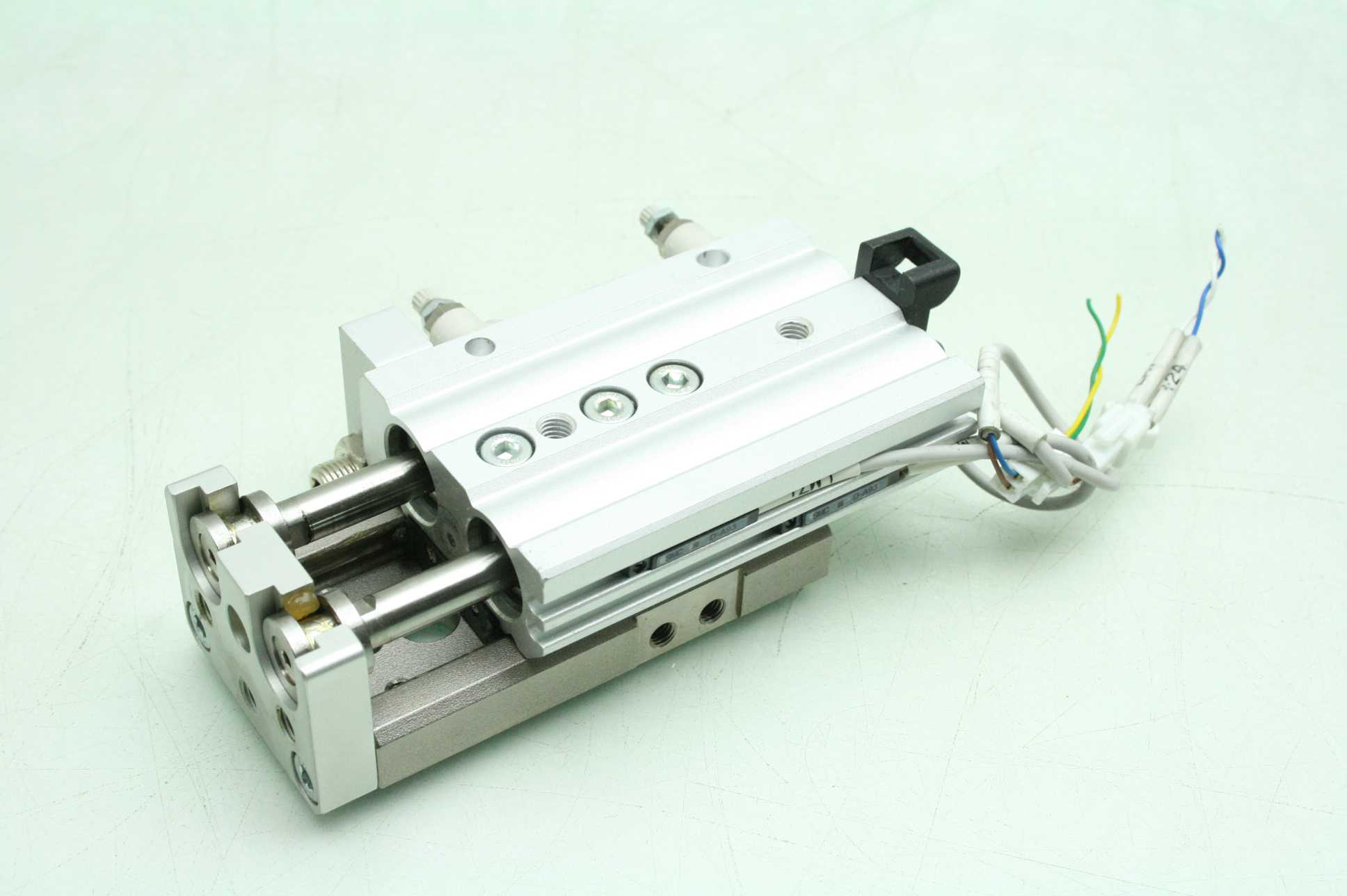

Here is an SMC slide table guided cylinder with adjustable stroke. 2 limit switches installed. This was pulled from late model equipment and is in excellent functional and cosmetic shape. This actuator comes with a 30 day right of return.

LOCATION: ; C 1004 17-2ListE

5/26 RL

Technical Specifications
make	smc
model	mxq16-30as
max stroke	30mm
bore	16mm
push connect fitting size	6mm (qty 2)
limit switch type	smc d-a93 (qty 2)

Item Condition: Used Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

Weight	1.81 kg
Dimensions	8.00 × 6.00 × 3.00 cm
Brand	SMC
MPN	MXQ16-30AS
Type	Guided Cylinder / Slide Table
Bore Size	16 mm
Stroke	30 mm
Series	MXQ
Actuator Type	Pneumatic Slide Table
Action	Double Acting
Mounting Style	Table Top / Base Mount
Stroke Adjustment	Yes (Both Ends)
Media	Air
Operating Pressure Range	0.05 to 0.7 MPa
Ambient Temperature Range	-10 to 60 degrees C
Fluid Temperature Range	-10 to 60 degrees C
Port Size	M5 x 0.8
Material	Aluminum Alloy Body
Country of Manufacture	Japan
Condition	Used
