Description

SMC ZSE40-T1-22L

All Photos (5 images) — Click thumbnail to view Description

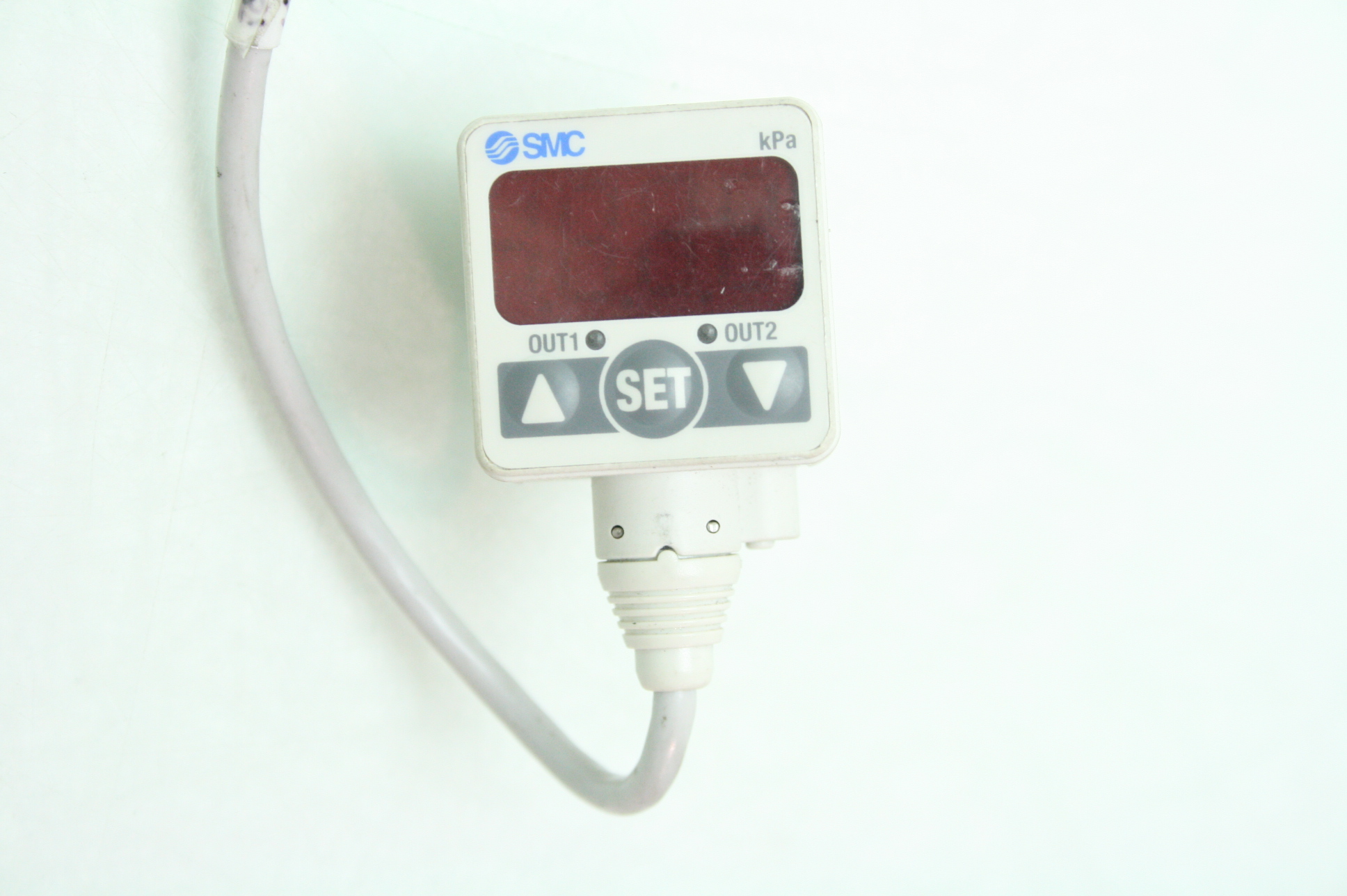

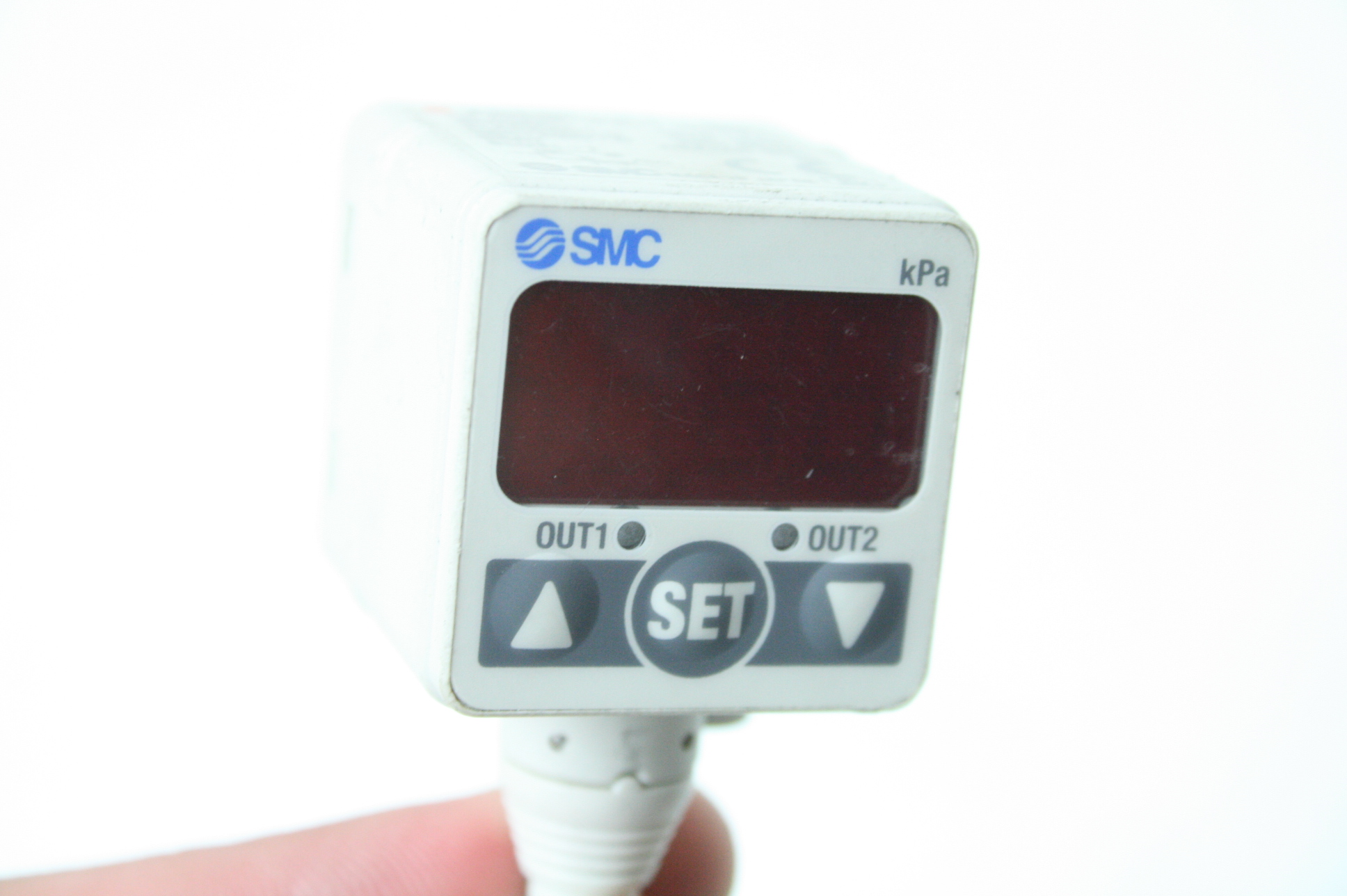

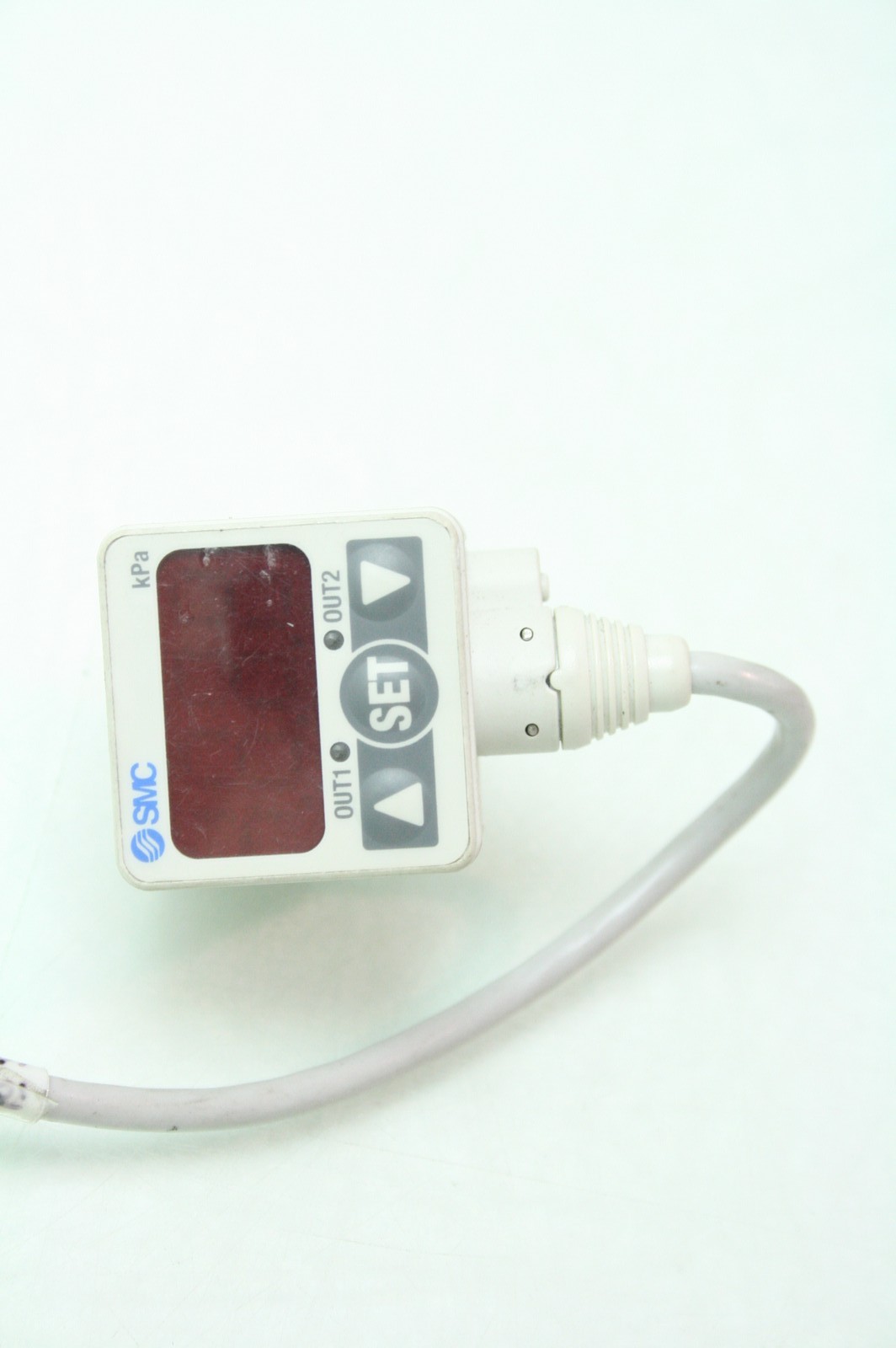

Here is an SMC high precision pressure switch. This is in excellent functional and cosmetic shape as shown. It powers on fine and is sensing atmospheric pressure correctly. This comes with a 30 day right of return.

For more technical information please follow this link: Here

LOCATION: ; C 1506 BIN: C-1506-H 15-7ListC

6/26 RL

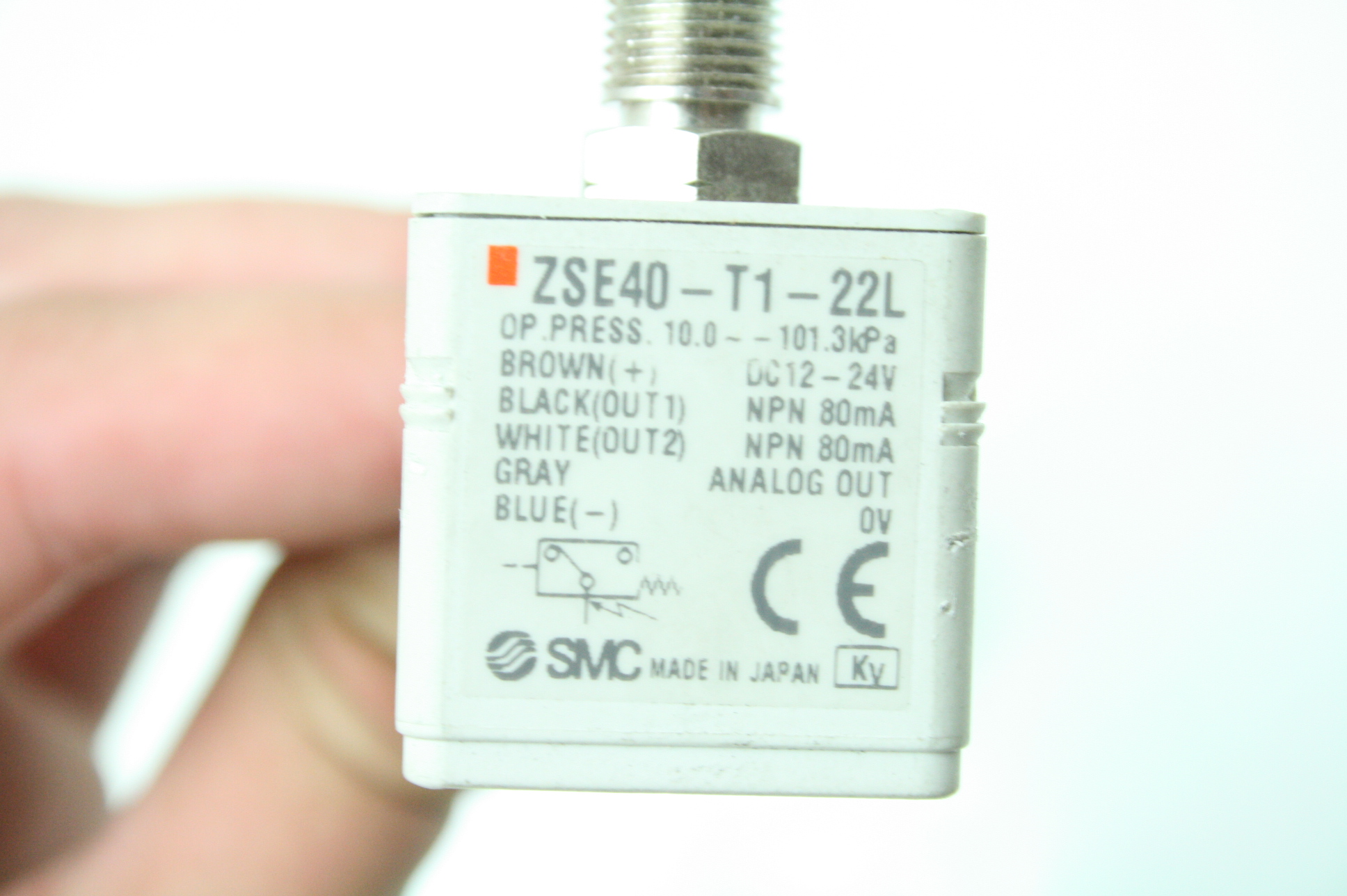

Technical Specifications
make	smc
model	zse40-t1-22l
operational pressure	10.0 to -101.3kpa
operational voltage	24v dc

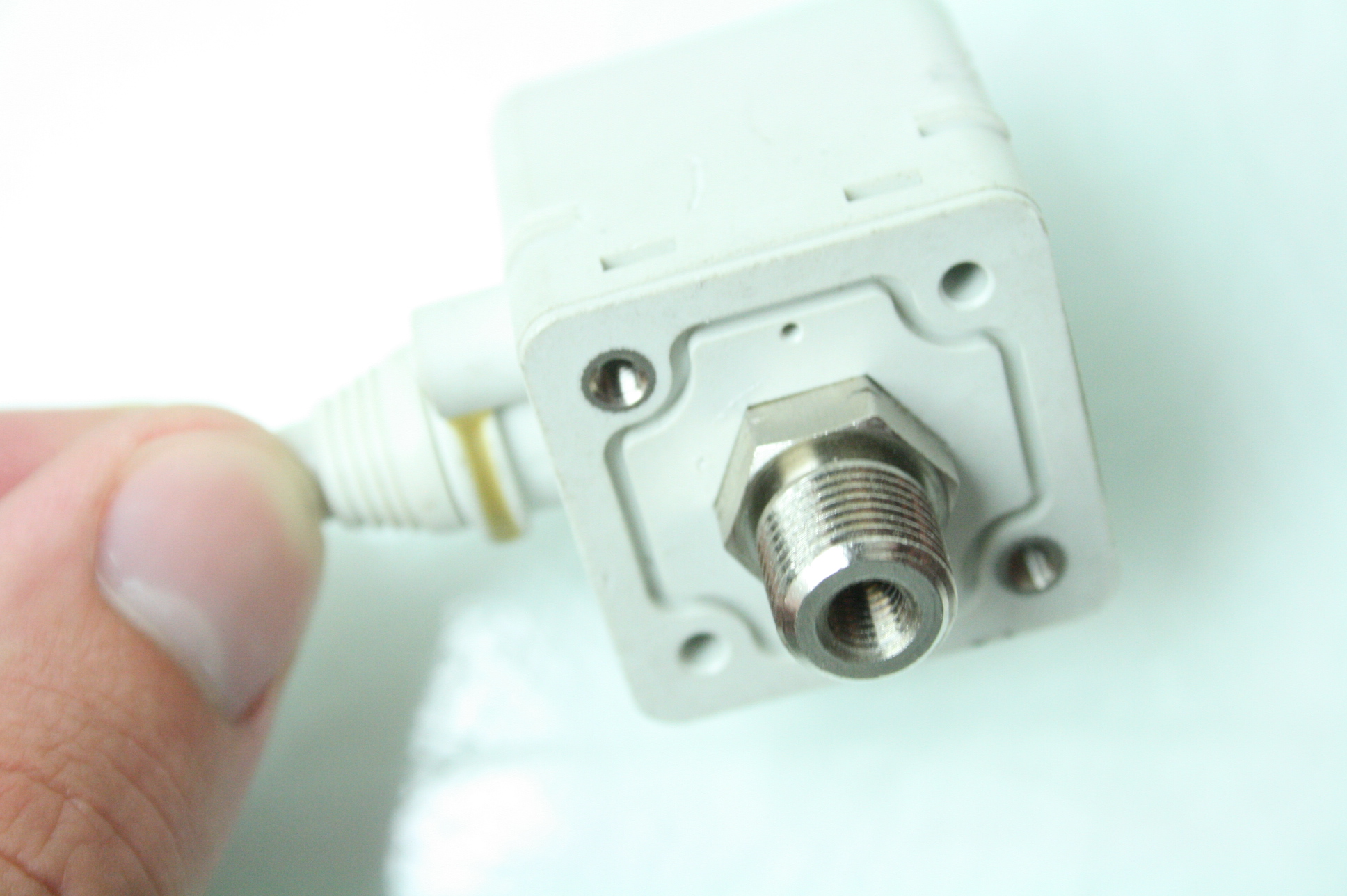

port size	1/8″ npt

Item Condition: Used Shipping

Primary Shipping:

Free USPS Ground Advantage (

Additional information

Weight	0.91 kg
Dimensions	8.00 × 6.00 × 3.00 cm
Model	ZSE40-T1-22L
Brand	SMC
MPN	ZSE40-T1-22L
Type	Vacuum Pressure Switch
Operating Temperature	-10 to 60Â°C
Pressure Range	-101.3 to 0 kPa
Supply Voltage	12 to 24 V DC
Output Type	NPN/PNP
Display Type	Digital
Number of Outputs	2
Wetted Material	PBT, ABS
Connection Size	1/8 NPT
Response Time	2.5 ms
Repeatability	0.5% F.S.
Weight	120 g
Series	ZSE40
FLUID	Air
Enclosure Rating	IP40
Current consumption	35 mA or less
Output Current	80 mA or less
Analog Output	1 to 5 V DC
Display Unit	kPa
Country of Manufacture	Japan
Condition	Used
